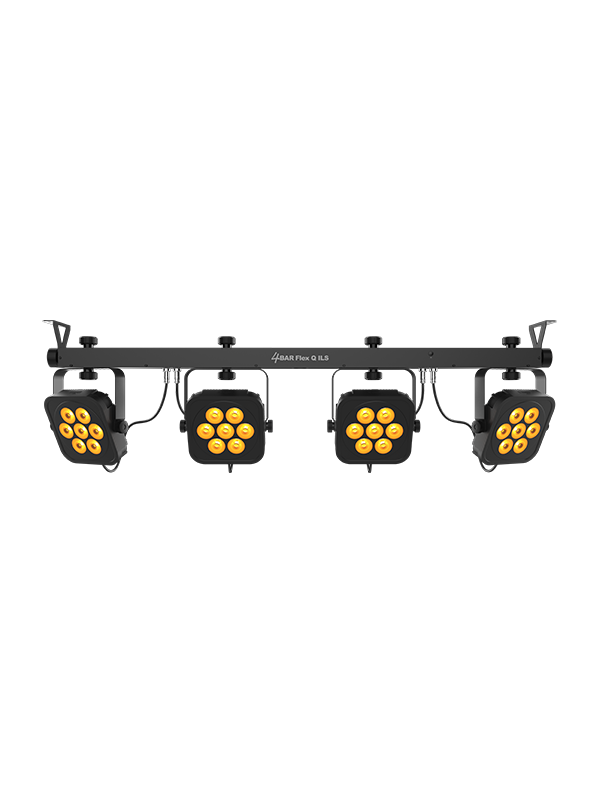

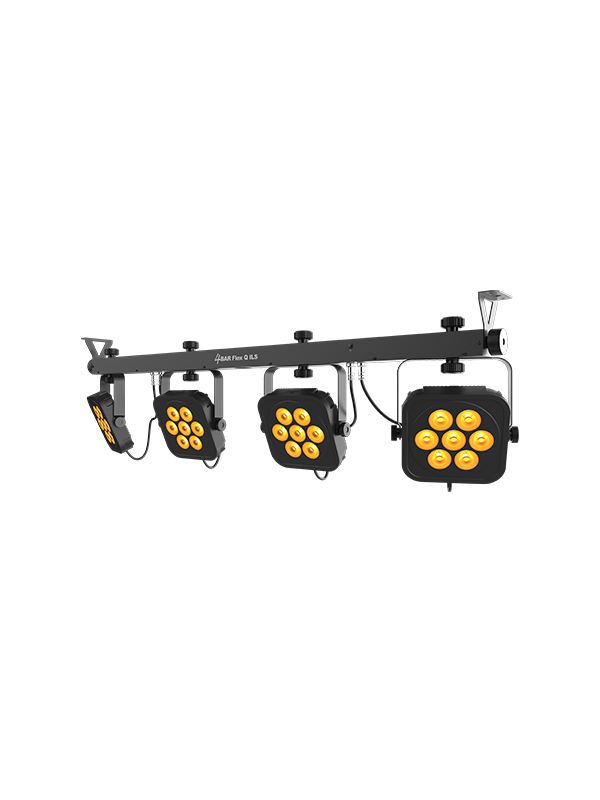

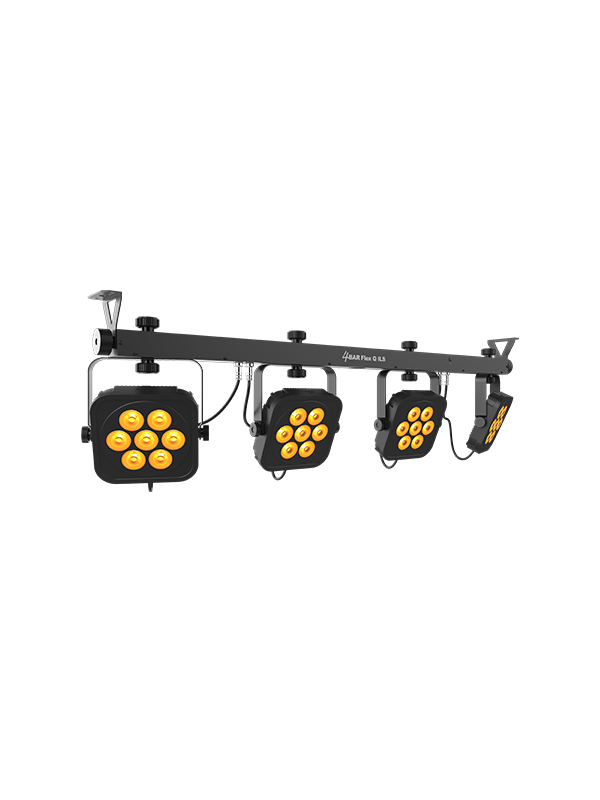

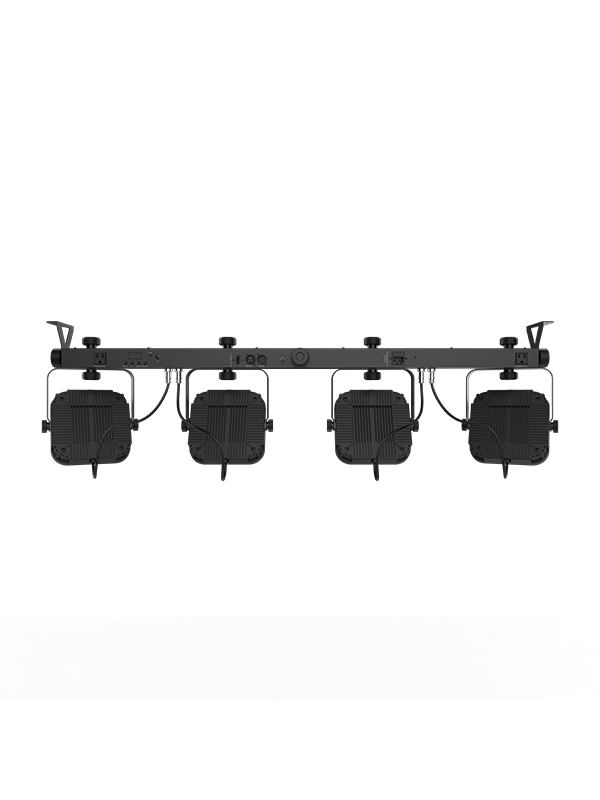

4BAR Flex Q ILS

Complete wash lighting convenience reaches new heights with 4BAR Flex Q ILS. This all-in-one system is fitted with four par fixtures on one bar. Because 4BAR Flex Q ILS is compatbile with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. No DMX required. High-intensity, quad-color (RGBA) LEDs generate a broad spectrum of colors and achieve natural-looking color temperatures with its punchy amber LEDs. 4BAR Flex Q ILS easily sets up and tears down in minutes and includes a handy carry bag. Adding to the unit’s versatility are two L-brackets that let you maximize setup possibilities and configurations. Easily mount up to 4 additional fixtures to the top of the 4BAR Flex Q ILS and provide power to additional lights using the built-in Edison plugs. 4BAR Flex Q ILS mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. D-Fi™ USB compatibility for wireless master/slave or DMX control is on-board and multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6.

Highlights

  • Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs

  • ILS compatibility for use in the ILS ecosystem

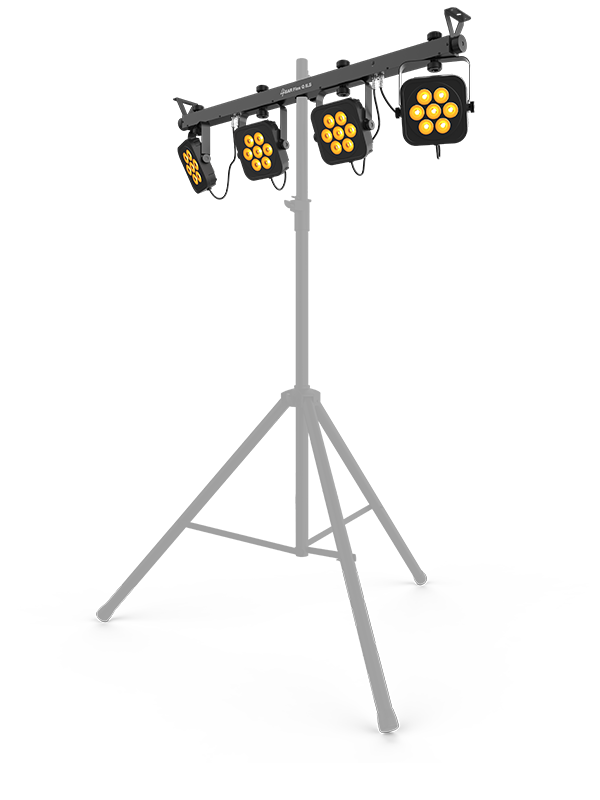

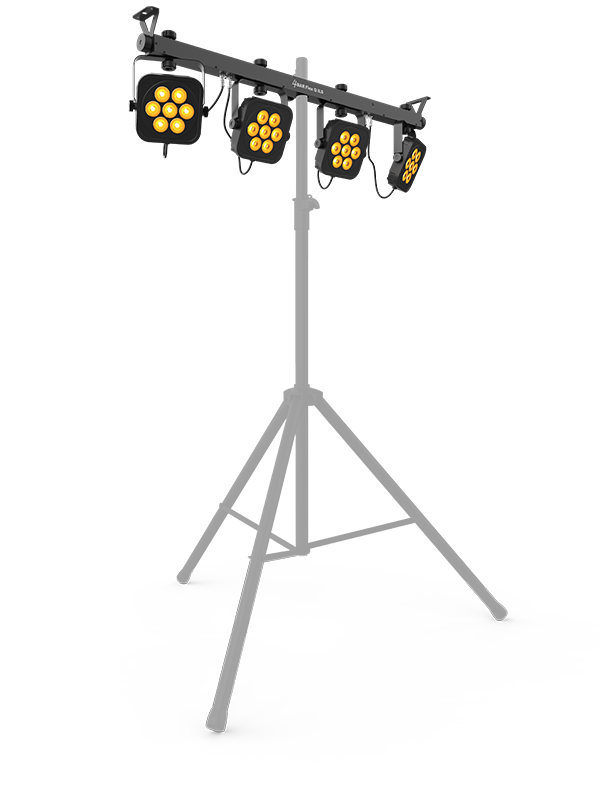

  • Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • D-Fi™ USB compatibility for wireless master/slave or DMX control (D-Fi™ USB sold separately)

  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex Q

  • Provide electricity to the additional lights by using the built-in Edison plugs

  • Maximize setup possibilities and configurations with 2 included L-brackets

  • Easily set up and tear down in minutes with the included carrying bag

  • Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote

  • Safely mounts to truss using built-in bolts

Specifications

  • DMX Channels:4, 6 or 19
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:14°
  • Field Angle:23°
  • Illuminance:2,353 lux @ 2 m (per pod)
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    80 W, 1.2 A @ 120 V, 60 Hz
    78 W, 0.6 A @ 230 V, 50 Hz
  • Approvals:CE, RoHS, UKCA
  • Operating Frequency (D-Fi): 2.412 to 2.484 GHz
  • Operating Frequency (foot switch): 433 MHz
  • Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
  • Footswitch battery: 9 V
  • Fits Tripod Sizes: 1.5 in (36.80 mm)
  • Bracket Mounting Hole: M10 (1.5 mm pitch)
  • Weight: 12.2 lb (5.5 kg)
  • Weight (Controller): 1.2 lb (0.6 kg)
  • Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
  • Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
  • Included controller: IRC-6
  • Optional controller: D-Fi USB

What's Included

  • 4BAR Flex Q ILS
  • 4BAR Flex Q ILS
  • Power cord
  • Carrying bag
  • Wireless footswitch
  • IRC-6 remote
  • Quick Reference Guide
