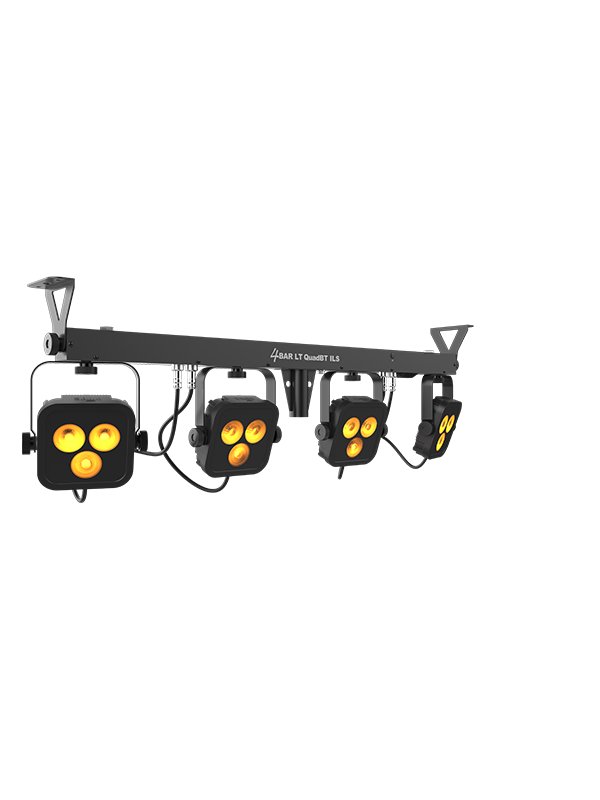

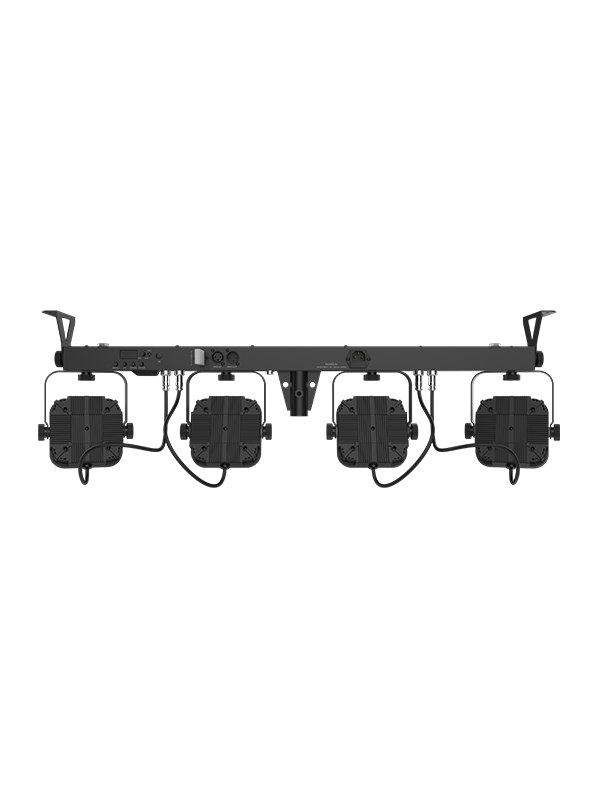

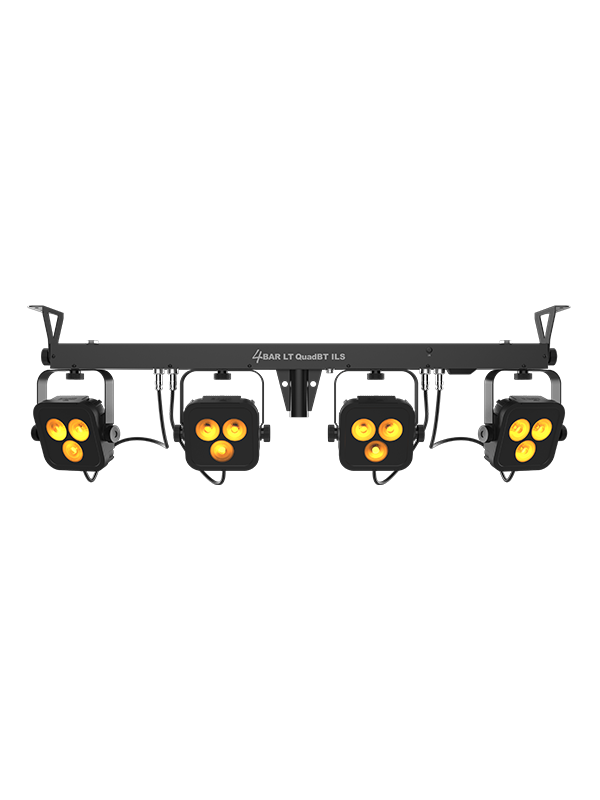

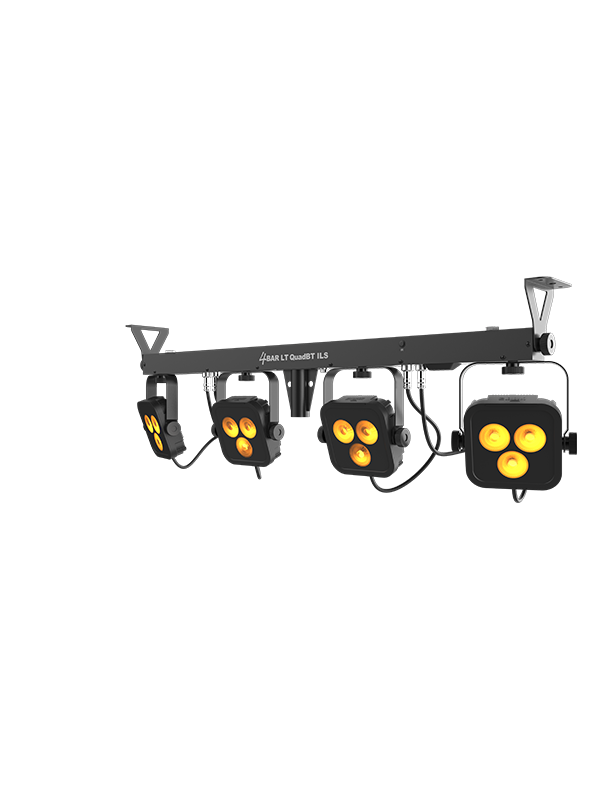

4BAR LT QuadBT ILS

The ILS ecosystem grows with the addition of the 4BAR LT QuadBT ILS, a complete, pack-n-go wash lighting solution with built-in Bluetooth® wireless technology. This quad-color (RGBA) fixture has 4 individually adjustable heads to achieve total room or stage coverage and the color-mixing power of amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch. 4BAR LT QuadBT ILS is compatible with D-Fi USB for wireless Lead/Follow or DMX programming. 4BAR LT QuadBT ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

*includes Mexico & Canada

Highlights

  • Complete wash lighting solution with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi™ USB sold separately)

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Easily set up and tear down in seconds with the included tripod, carry bags and footswitch

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Out of the box wireless control with included footswitch or optional IRC-6 controller

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels:4, 6 or 19
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:150 ft (25.7 m)
  • Light Source:12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy
  • Beam Angle:12°
  • Field Angle:21°
  • Operating Frequency:2.4 GHz
  • Illuminance:2,162 lux @ 2 m (per pod)
  • Power and Current:
    46 W, 0.6 A @ 120 V, 60 Hz
    44 W, 0.3 A @ 230 V, 50 Hz
  • Weight:7.2 lb (3.3 kg)
  • Size:36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)
  • Approvals:CE, FCC, RoHS, UKCA
  • Stand Height: 50-83 in (127-211 cm)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Fits Tripod Sizes: 1 in (25.4 mm)
  • Optional Controllers: IRC-6, BTAir
  • Bluetooth Version: 4.2

What's Included

  • 4BAR LT QuadBT ILS
  • 4BAR LT QuadBT ILS
  • Power cord
  • Carrying bag
  • Tripod
  • Footswitch
  • L- bracket
  • Quick Reference Guide
