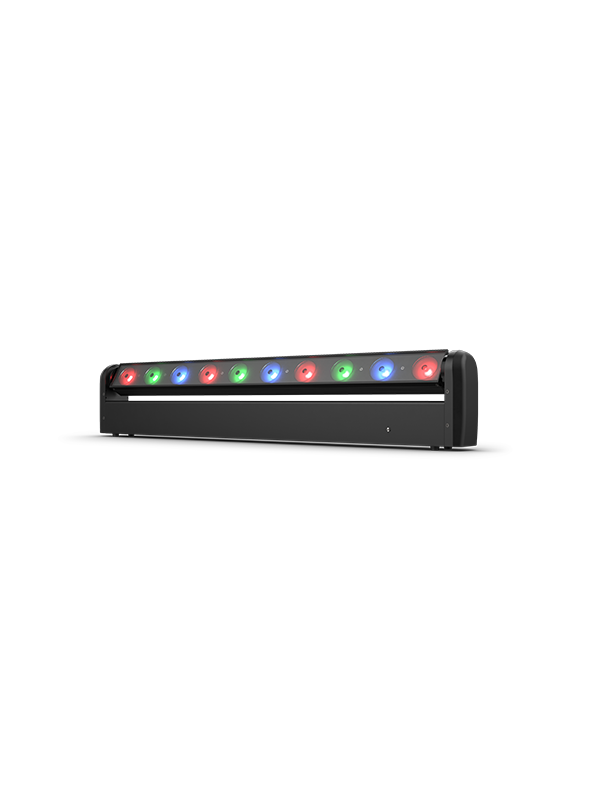

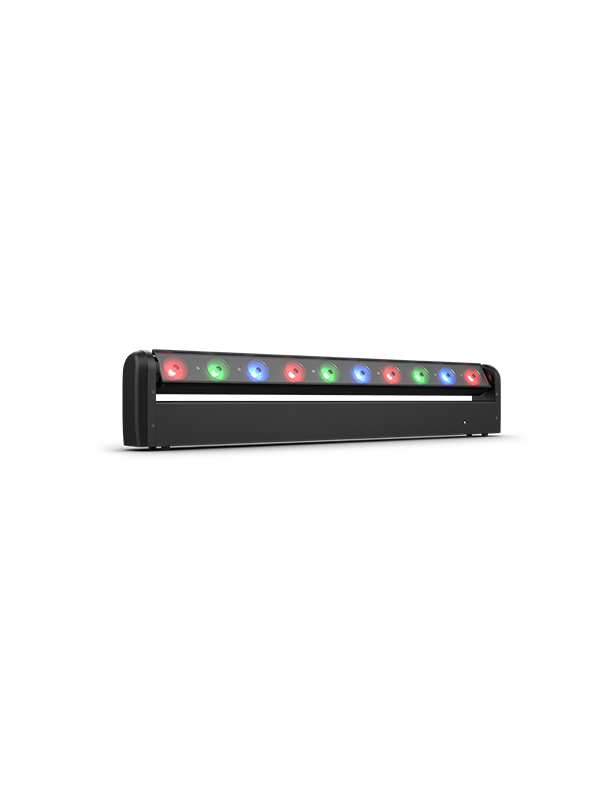

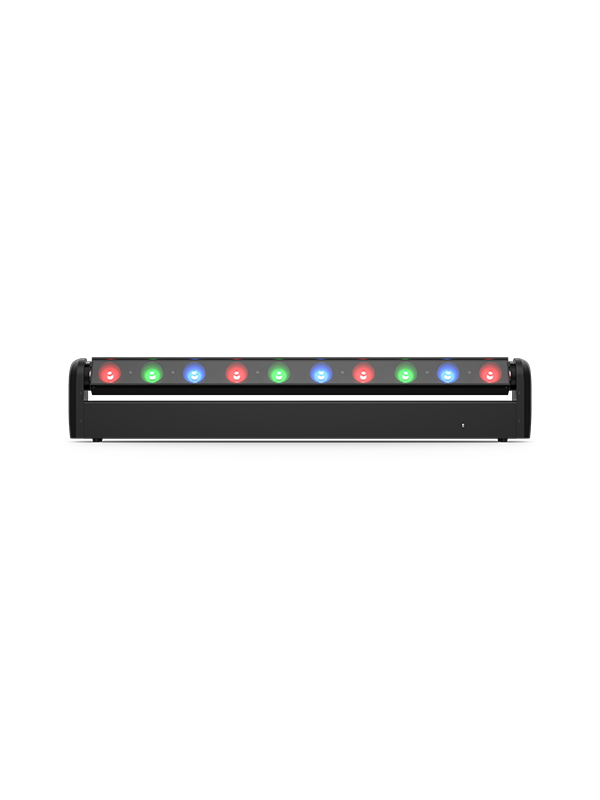

COLORband PiX-M ILS

Add the power of a full-size linear wash light with 10 tri-color (RGB) LEDs, sweeping movement and a staggering array of control options and you get COLORBand Pix M ILS, a fixture that will light up any event and ignite it with energy! This moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer. You can also just angle the light where it’s needed using the built-in motors. But the true excitement comes when you create eye-catching animations and video effects with individual LED control. Controlling this powerhouse couldn’t be easier or more convenient. It has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes, ILS compatibility for use in the ILS ecosystem, and D-Fi USB compatibility for wireless master/slave or DMX control. Even DMX connection options are flexible with onboard 3 and 5-pin DMX connectors.

Highlights

  • Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi™ USB sold separately)

  • Flexible control options with onboard 3 and 5-pin DMX connectors

  • Angle the light where it’s needed using the built-in motors

  • Create eye-catching animations and video effects with individual LED control

  • powerCON®-compatible power input/output connections for power linking

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels:5, 6, 8 ,10, 17, 32, or 36

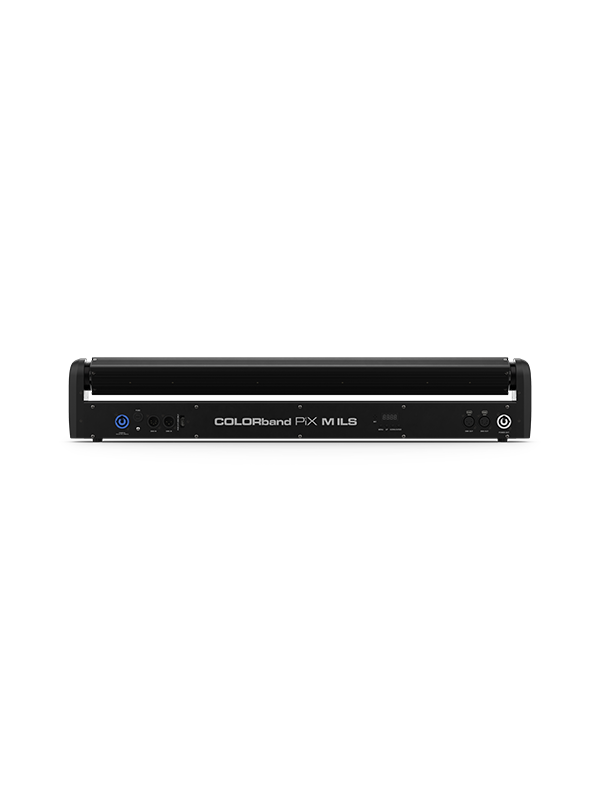

  • DMX Connectors:3- and 5-pin XLR
  • Light Source:10 LEDs (tri-color RGB) 6 W, (2A), 50,000 hours life expectancy
  • Strobe Rate:0 to 29 Hz
  • Beam Angle:15°
  • Field Angle:27°7,441 lux @ 2 m
  • Illuminance:7,441 lux @ 2 m
  • Power Linking:12 units @ 120 V; 20 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    86 W, 1.2 A @ 120 V, 60 Hz
    84 W, 0.7 A @ 230 V, 50 Hz
  • Weight:8.2 lb. (3.7 kg)
  • Size:31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
  • Approvals:CE, UKCA, ROHS
  • Tilt: 245°
  • Bracket Mounting Hole: 13 mm
  • Optional Controllers: RFC, RFC-XL

What's Included

  • COLORband PiX-M ILS
  • COLORband PiX-M ILS
  • Power cord
  • Quick Reference Guide
