Discontinued Since 2023

COLORband PiX-M USB

Next Gen Product Available

COLORband PiX-M ILS

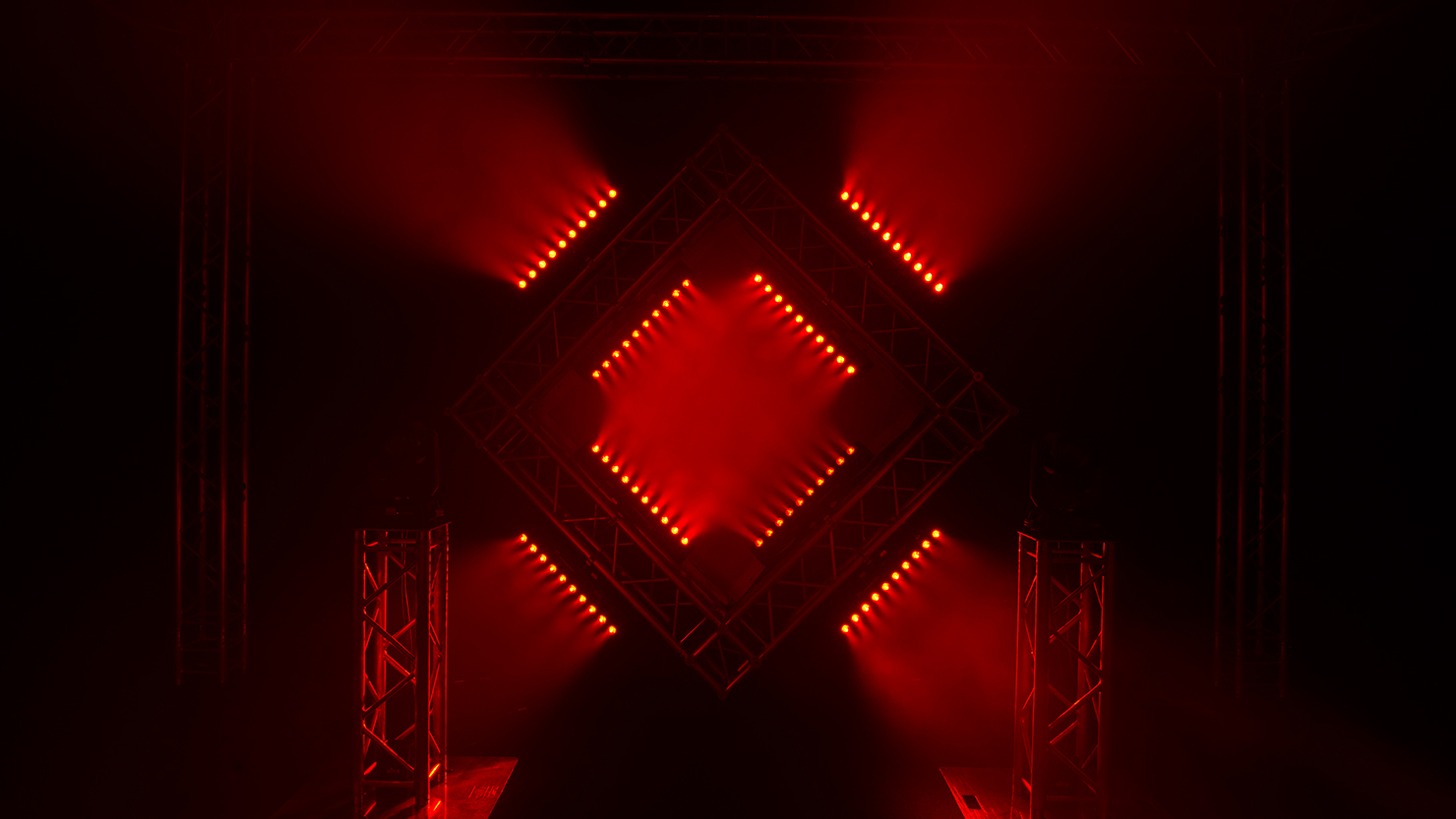

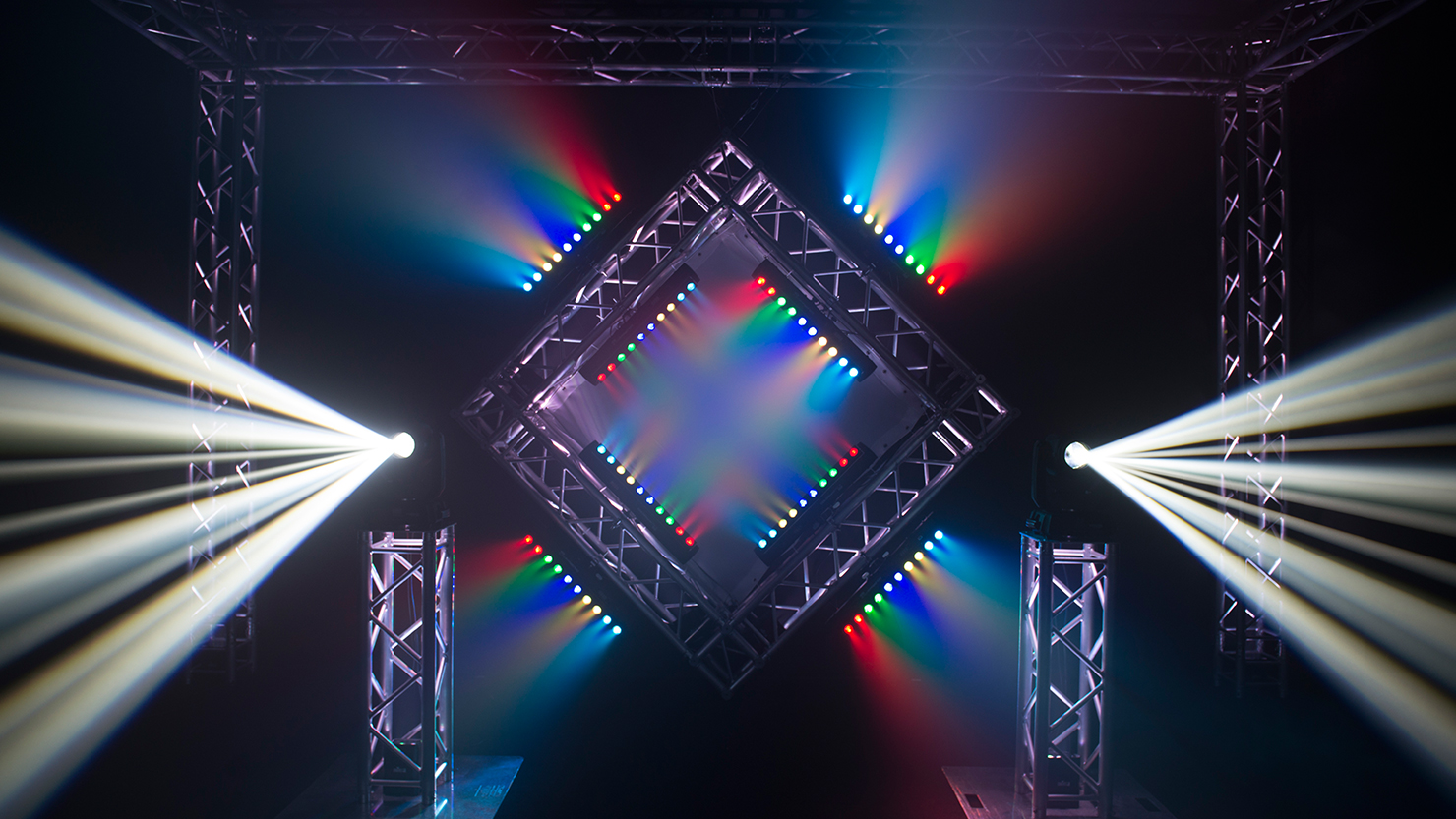

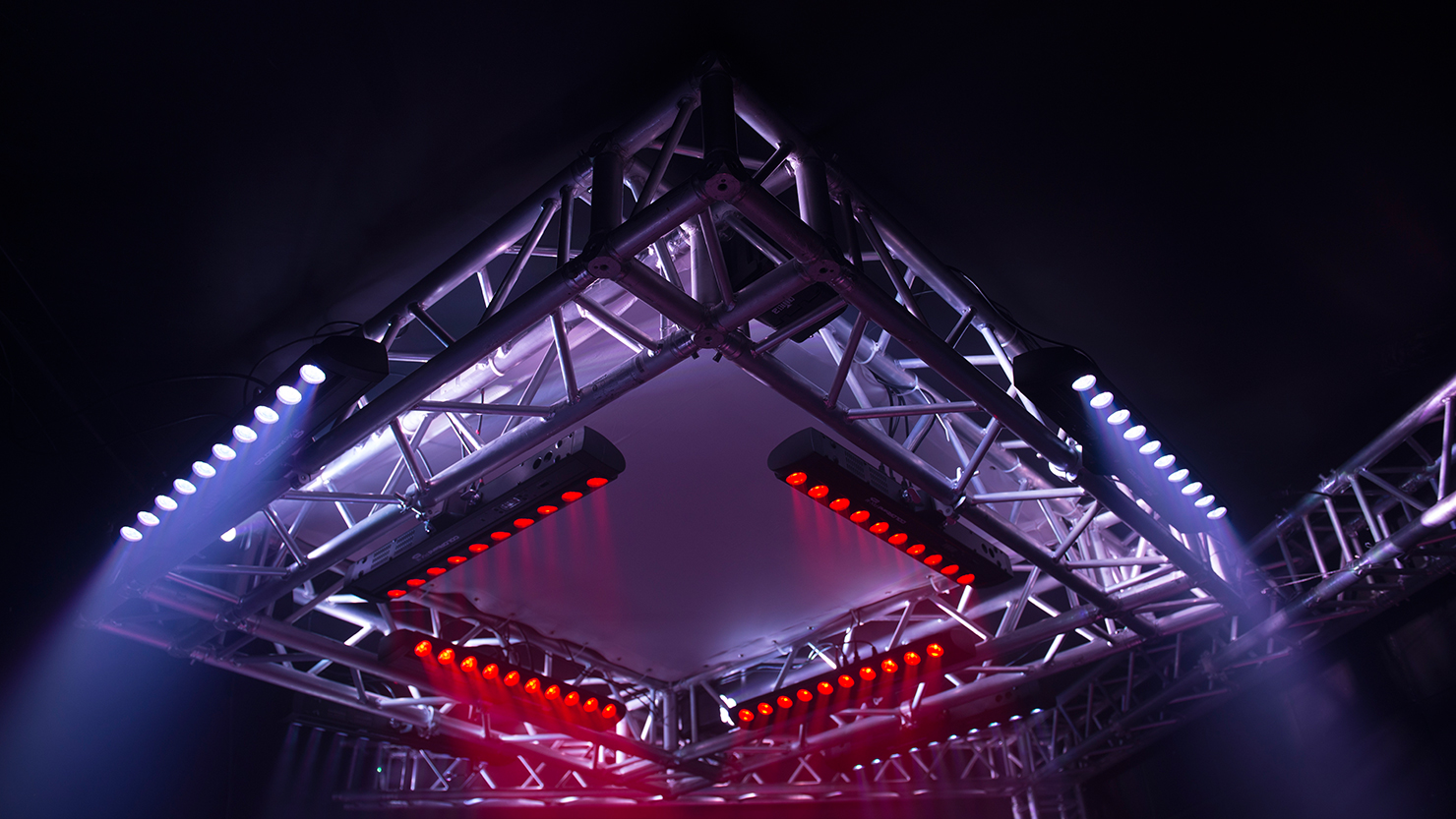

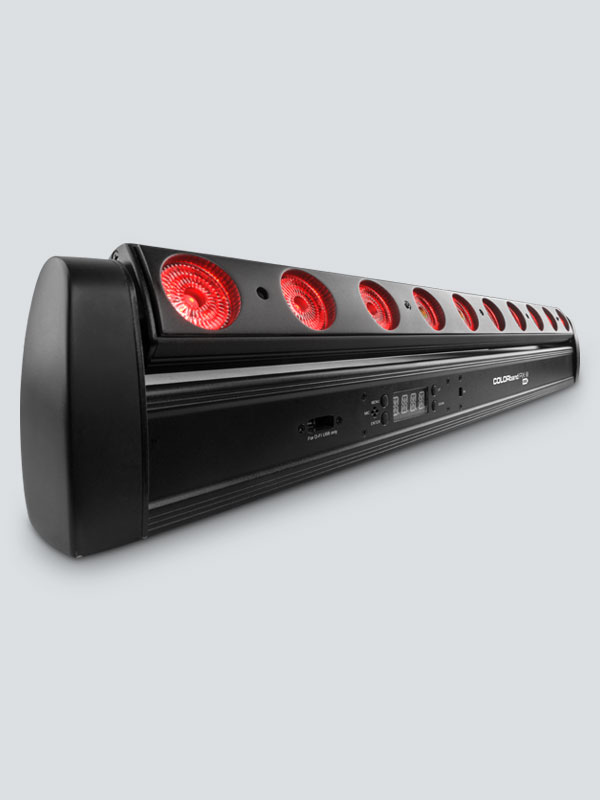

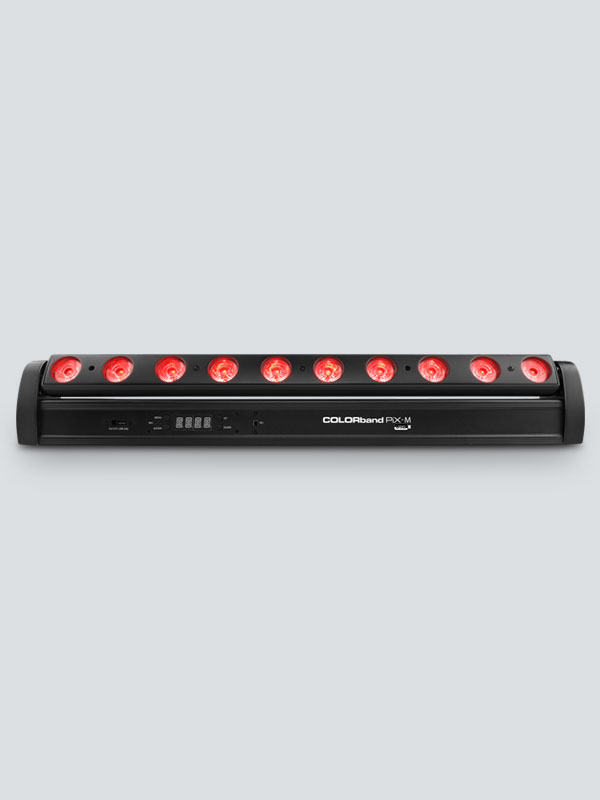

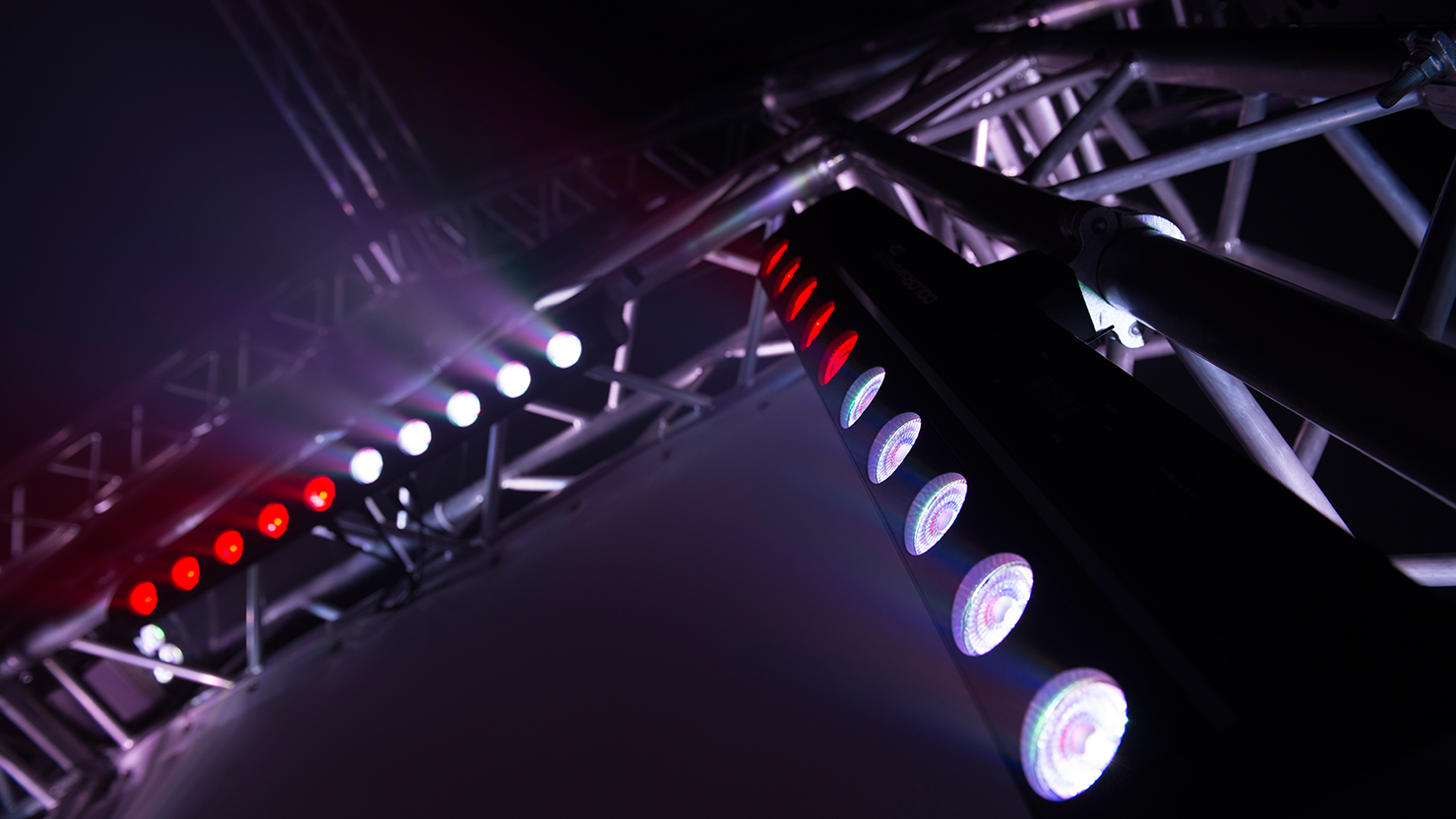

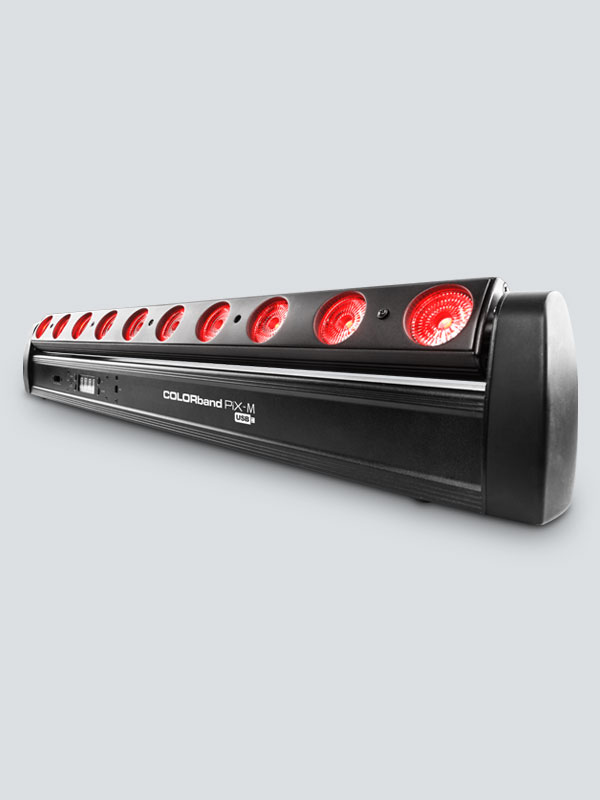

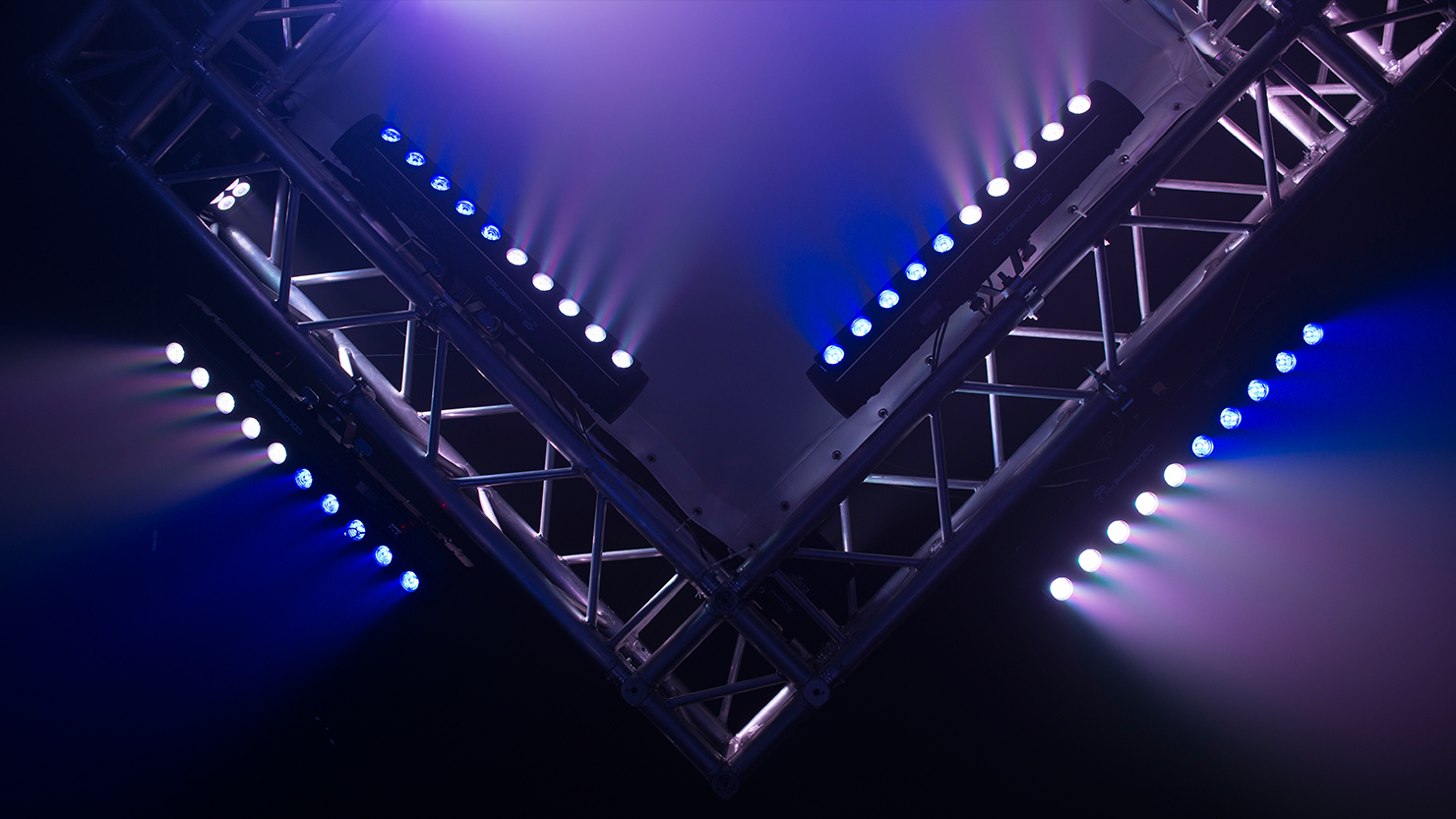

COLORband PiX-M USB, a moving LED strip light, is a versatile wall-wash light that can create dynamic sweeping, chase, animation and blinder effects thanks to its rotating base, pixel-mapping capabilities, and the ability to control each of its 10 LEDs separately. Its motors allow you to angle the light where it’s needed. COLORband Pix-M USB features D-Fi USB compatibility for wireless master/slave or DMX control but you can also access dramatic, pre-built automated programs with or without DMX. Wireless, non-DMX operation is also available with the optional IRC-6 remote.

Highlights

  • Moving LED strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Angle the light where it’s needed using the built-in motors

  • Create eye-catching animations and video effects with individual LED control

  • Access dramatic, pre-built automated programs with or without DMX

  • Wireless, non-DMX operation is available with the optional IRC-6 remote

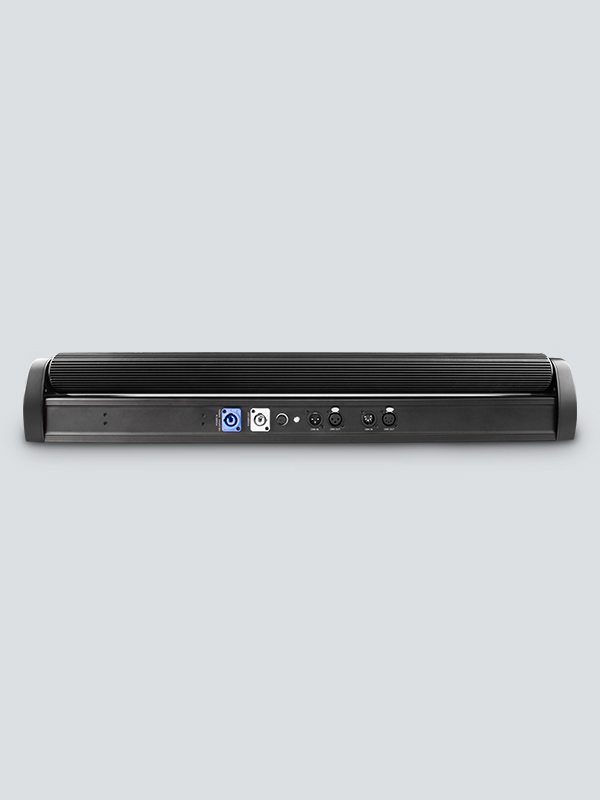

  • Flexible control options with onboard 3 and 5-pin DMX connectors

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units

  • powerCON®-compatible power input/output connections for power linking

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels:5, 6, 8, 10, 17, 32 or 36
  • DMX Connectors:3- and 5-pin XLR
  • Light Source:10 LEDs (tri-color RGB) 9 W, (2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 25 Hz
  • Beam Angle:20°
  • Field Angle:34°
  • Illuminance:6,120 lux @ 2 m
  • Power Linking:5 units @ 120 V; 9 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:108 W, 1.5 A @ 120 V, 60 Hz
    105 W, 1 A @ 230 V, 50 Hz
  • Weight:9.6 lb (4.4 kg)
  • Size:31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
  • Approvals:CE
  • Tilt: 245°
  • Optional Controllers: IRC-6, D-Fi USB

What's Included

  • COLORband PiX-M USB
  • COLORband PiX-M USB
  • Power cord
  • Hanging bracket with mounting hardware
