Discontinued Since 2024

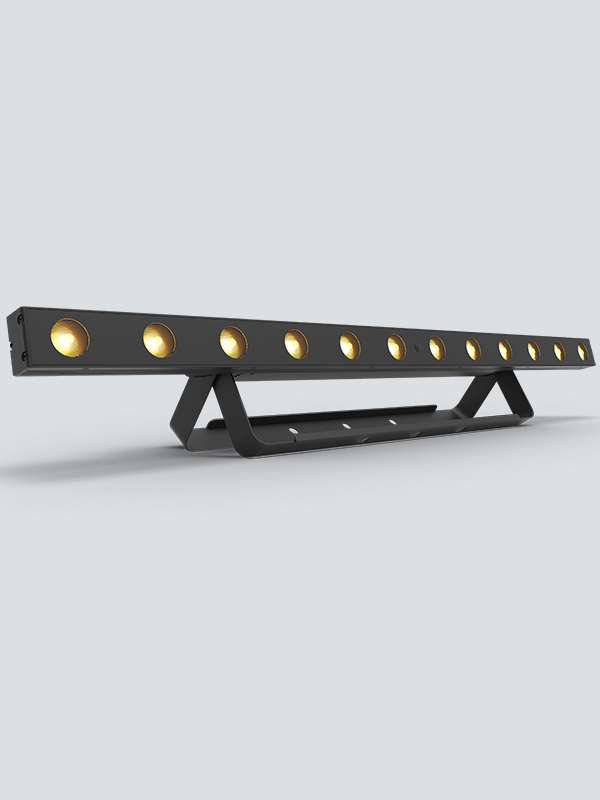

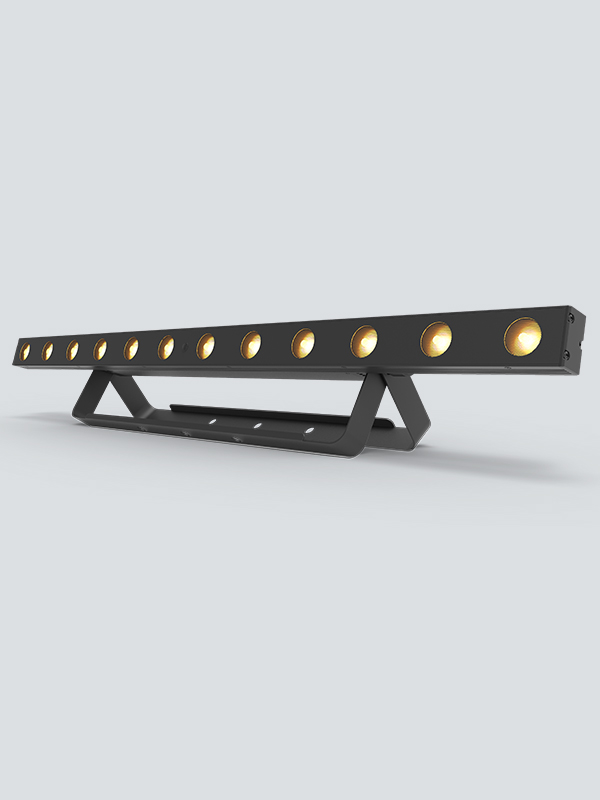

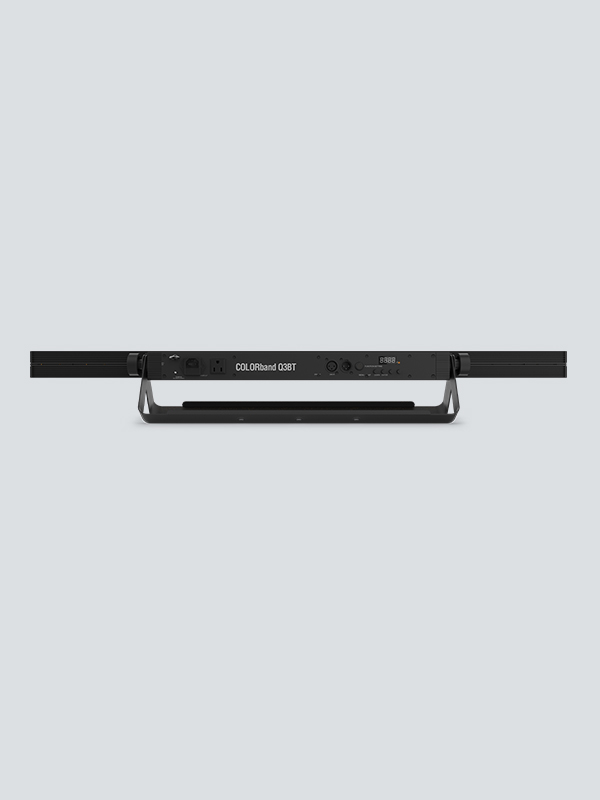

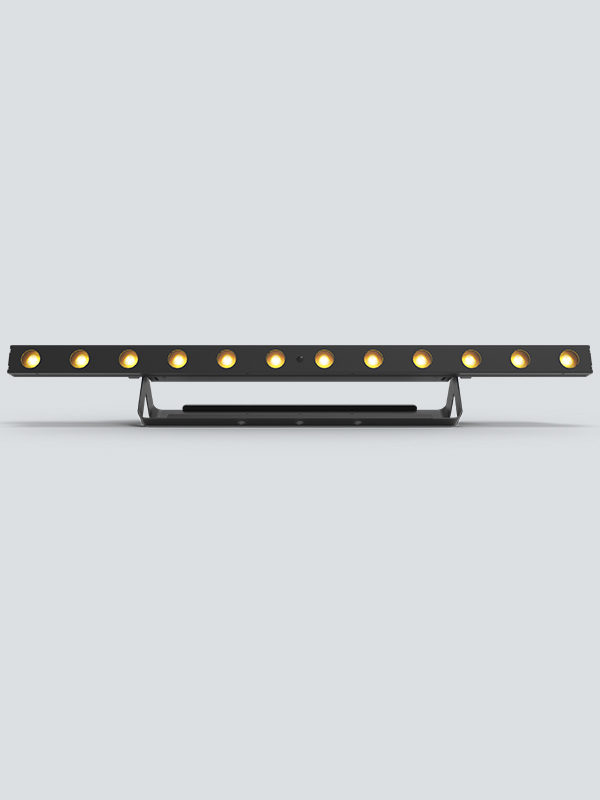

COLORband Q3BT

COLORband Q3BT is a full-size linear quad-color (RGBA) wash light fitted with 3 zones of control. This linear wash light features DMX + built-in Bluetooth® wireless technology. Control COLORband Q3BT with the free BTAir app (patent pending) from any smartphone or tablet; no additional hardware needed! Quad-color LEDs allow for vibrant and warm color mixing! Access built-in automated programs via Master/Slave, DMX, or optional IRC-6 remote. Power link multiple units to save time running extension cords.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

Highlights

  • Full-size, quad-color linear wash light with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • 3 zones of control create amazing automated effects

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Save time running cables and extension cords by power linking multiple units

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels:4, 6 or 16

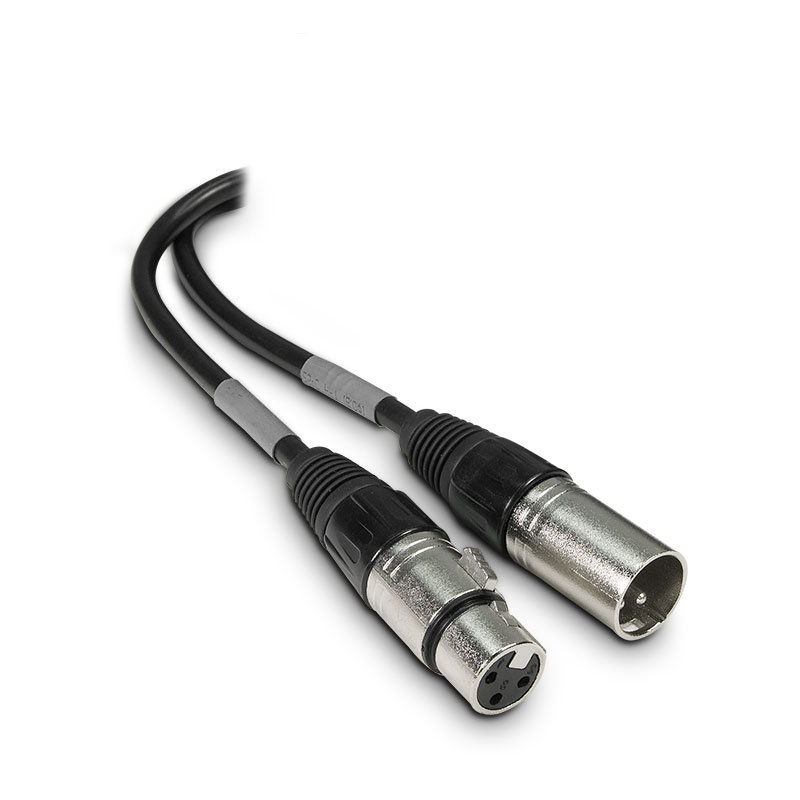

  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:150 ft (45.7 m)
  • Light Source:12 LEDs (quad-color RGBA) 4 W, (1.4 A), 50,000 hours life expectancy
  • PWM Frequency:1.59 kHz
  • Beam Angle:42°
  • Field Angle:70°
  • Operating Frequency:2.4 GHz
  • Illuminance:635 lux @ 2 m
  • Power Linking:10 units @ 120 V; 18 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:57 W, 0.7 A @ 120 V, 60 Hz
    55 W, 0.4 A @ 230 V, 50 Hz
  • Weight:6.6 lb (3.1 kg)
  • Size:39.3 x 3.8 x 5.5 in (1000 x 98 x 140 mm)
  • Approvals:CE, FCC
  • Bracket Mounting Hole: M12
  • Optional Controllers: IRC-6, BTAir
  • Bluetooth® version: 4.2

What's Included

  • COLORband Q3BT
  • COLORband Q3BT
  • Power cord
  • Quick Reference Guide
Save & Print

Downloads

COLORband Q3BT User Manual
COLORband Q3BT Quick Reference Guide
COLORband Q3BT ShowXpress Profile
