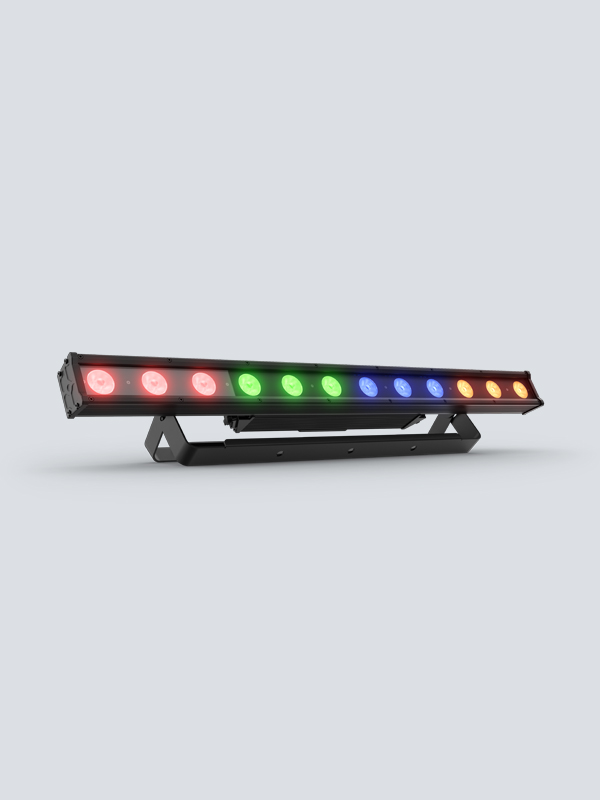

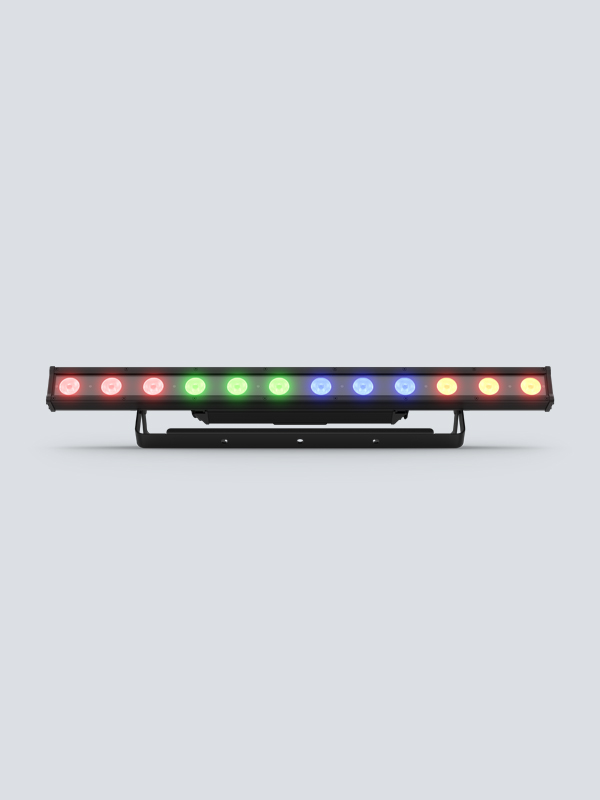

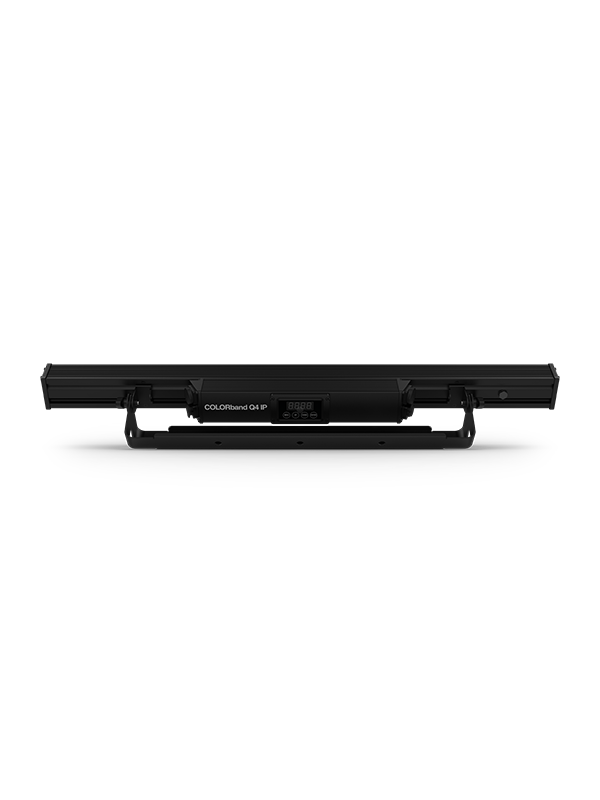

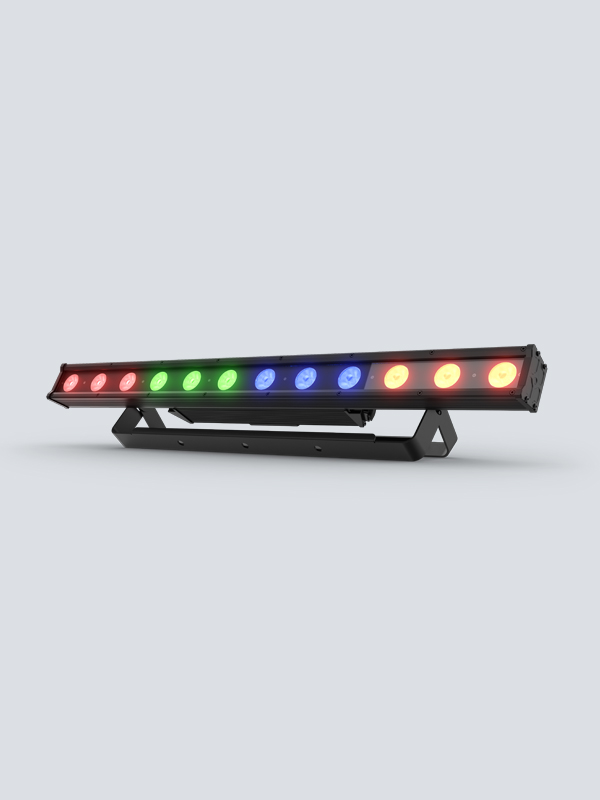

COLORband Q4 IP

With COLORband Q4 IP, joy doesn’t depend on the weather! This weatherproof, outdoor-rated LED strip light delivers lighting joy inside or out because its robust housing repels water, snow, dirt, and sand for all-weather applications. COLORband Q4 IP is a versatile 4-zone effect that can be used for a wide variety of applications including as a blinder or wall washer. The touch-sensitive display can be password protected and powerCON® TRUE1 inputs make power connections secure and reduce cable clutter by linking multiple units. The integrated GORE® valve prevents internal humidity build-up and allows the fixture to breathe. COLORband Q4 IP is even great for on-camera work with its high-frequency LED dimming that gives the unit flicker-free video operation.

Highlights

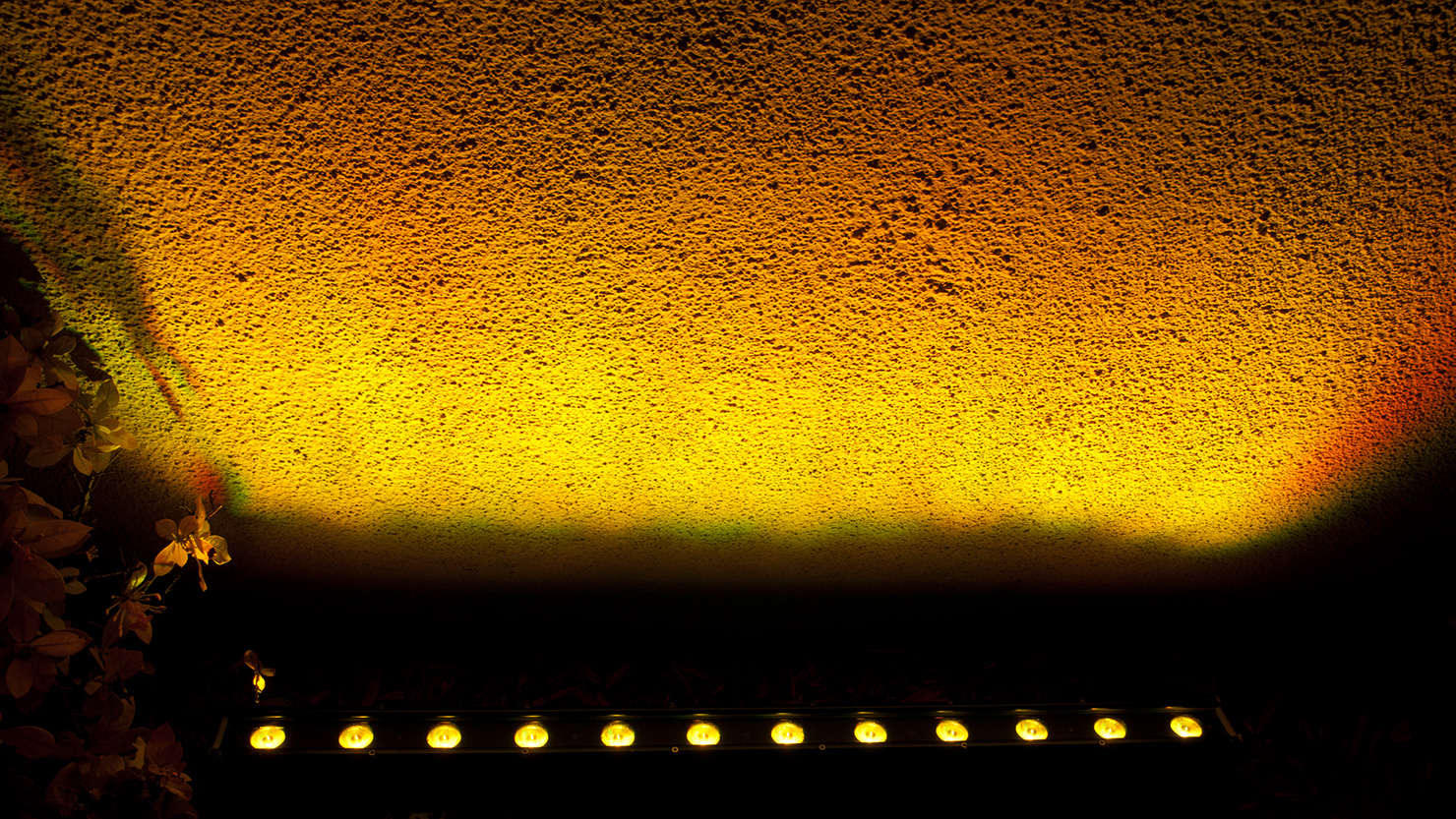

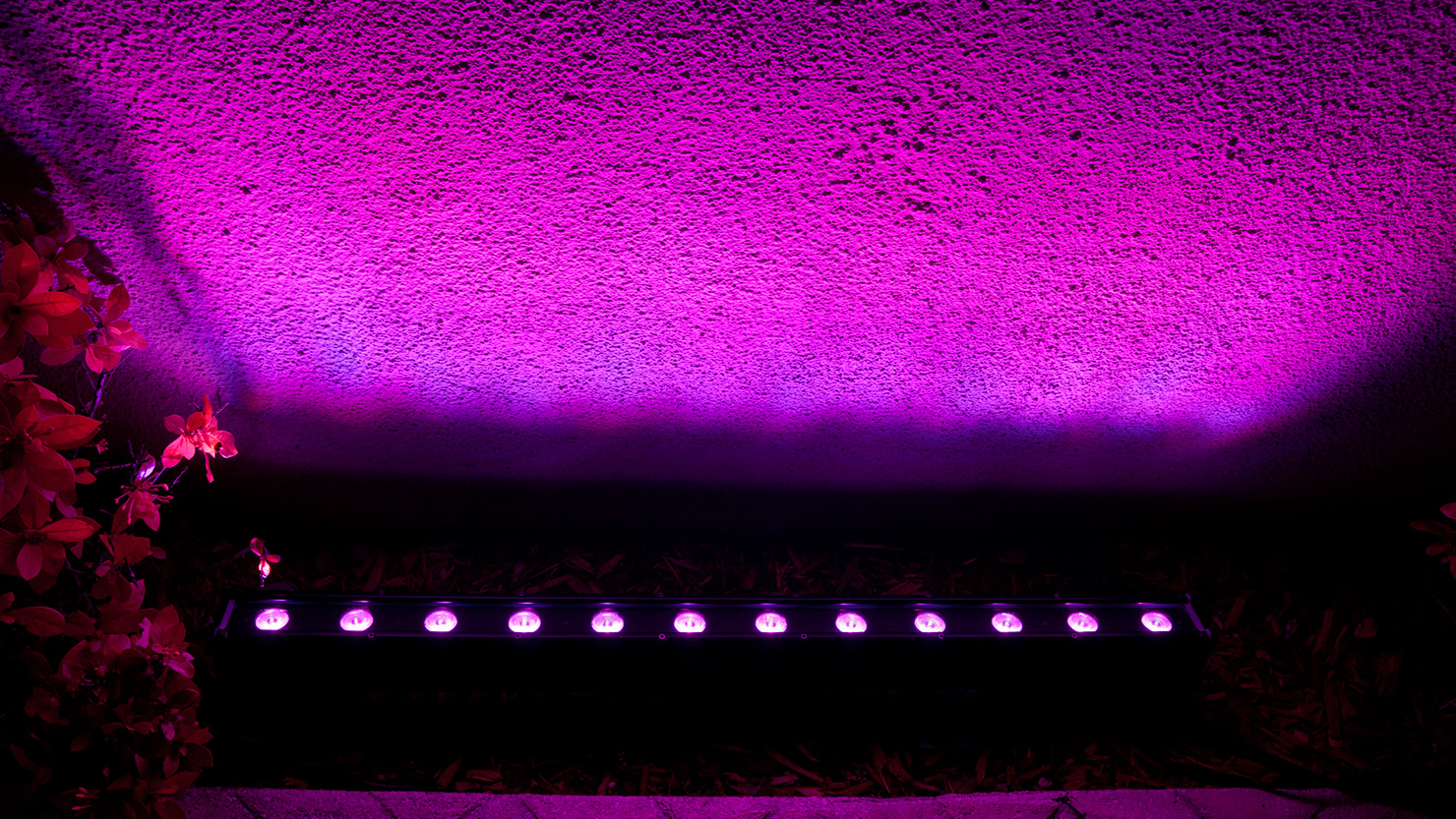

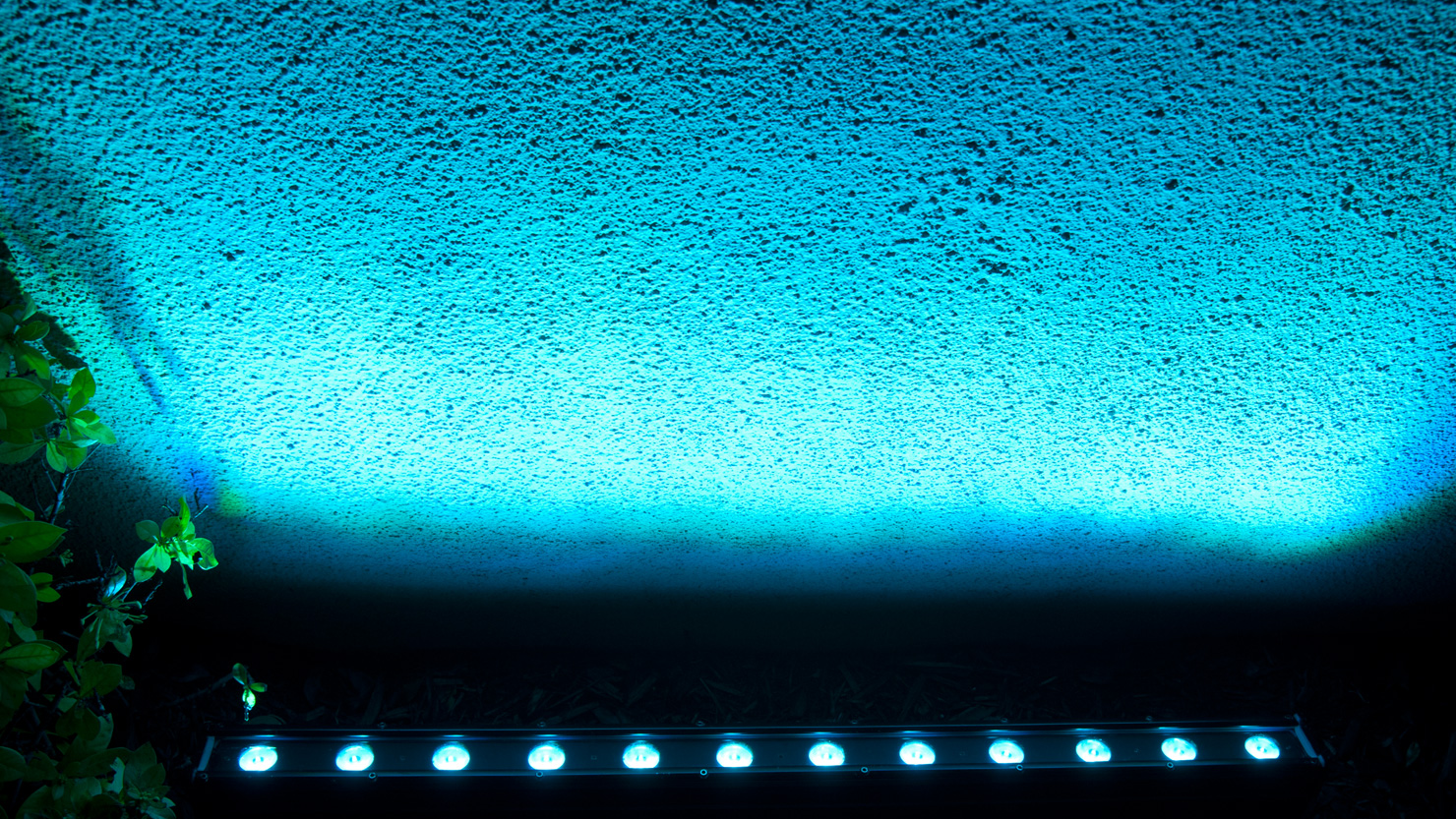

  • Outdoor-rated LED strip light functions as a 4-zone effect, blinder or wall washer for any temporary outdoor event

  • Weatherproof fixture designed for use at outdoor parties or behind wet bars

  • Robust housing repels water, snow, dirt and sand for all-weather applications

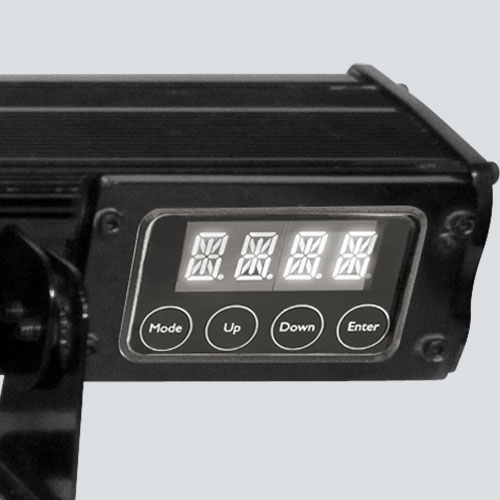

  • Password protected and touch-sensitive digital display

  • Reduce cable clutter and link multiple units with the powerCON® TRUE1 connections

  • Prevent internal humidity build-up and allow the fixture to breathe with the integrated GORE® valve

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Easily transports in the optional CHS-60 VIP gear bag

Specifications

  • DMX Channels:4, 7, 10, 16 or 22
  • DMX Connectors:3-pin XLR
  • Light Source:12 LEDs (quad-color RGBA) 6 W, (2.06 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • PWM Frequency:4 KHz
  • Beam Angle:14°
  • Field Angle:27°
  • Illuminance:7,074 lux @ 2 m, 1,209 lux @ 5 m
  • Lumens:2,923
  • IP Rating:IP65
  • Power Linking:9 units @ 120 V; 16 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:87 W, 1.18 A @ 120 V, 60 Hz
    86 W, 0.67 A @ 230 V, 50 Hz
  • Weight:11.8 lb (5.35 kg)
  • Size:39.3 x 3.2 x 4.1 in (998 x 81 x 104 mm)
  • Approvals:CE, MET
  • Power Cord Length: 5 ft (1.5 m)

What's Included

  • COLORband Q4 IP
  • Power Cord
  • Quick Reference Guide
  • Warranty card
