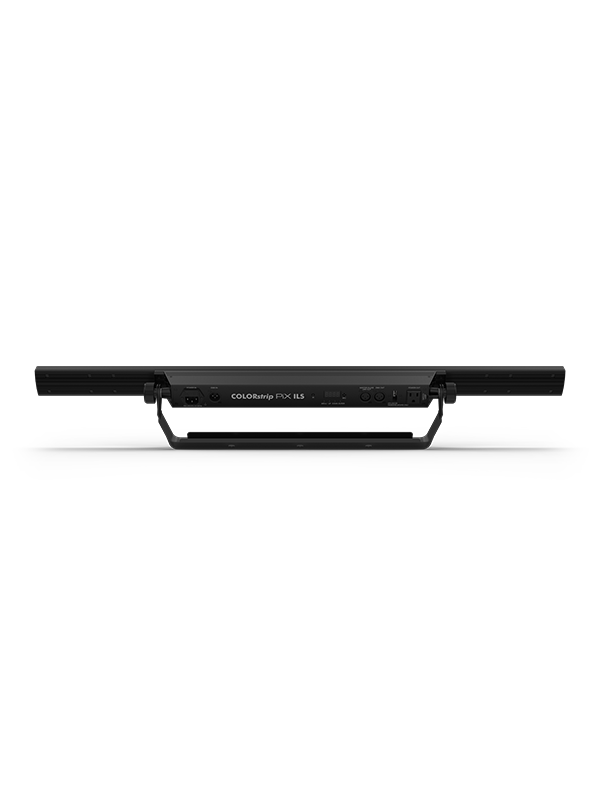

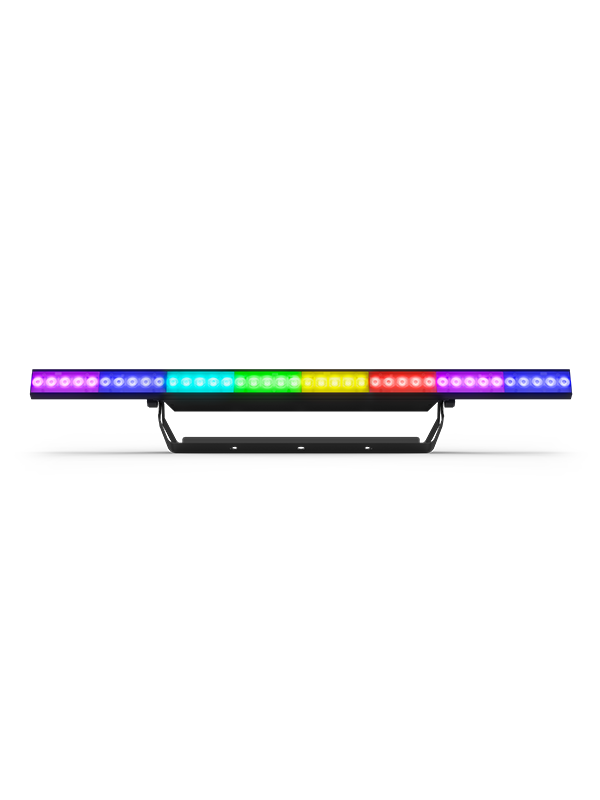

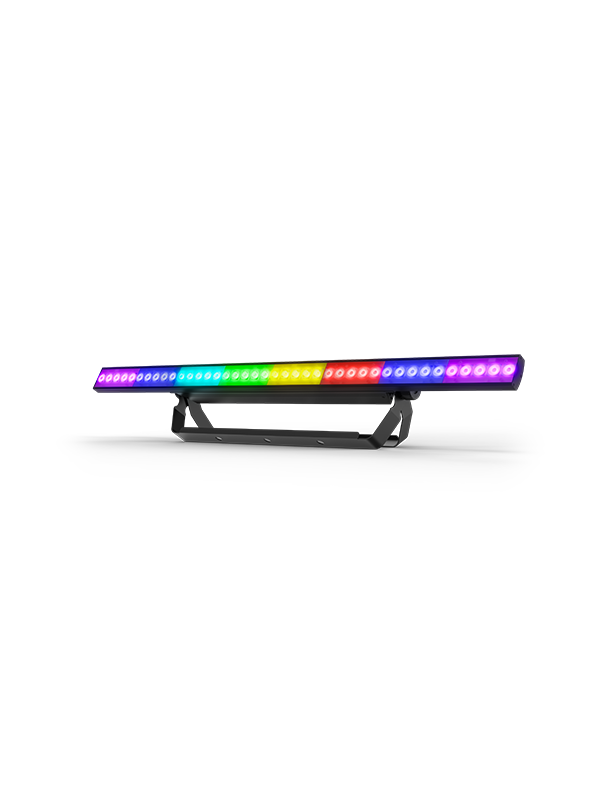

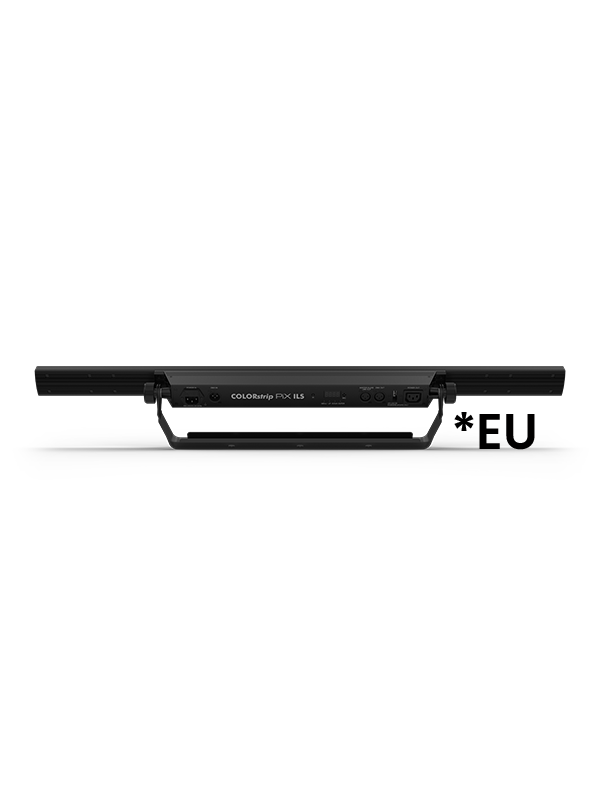

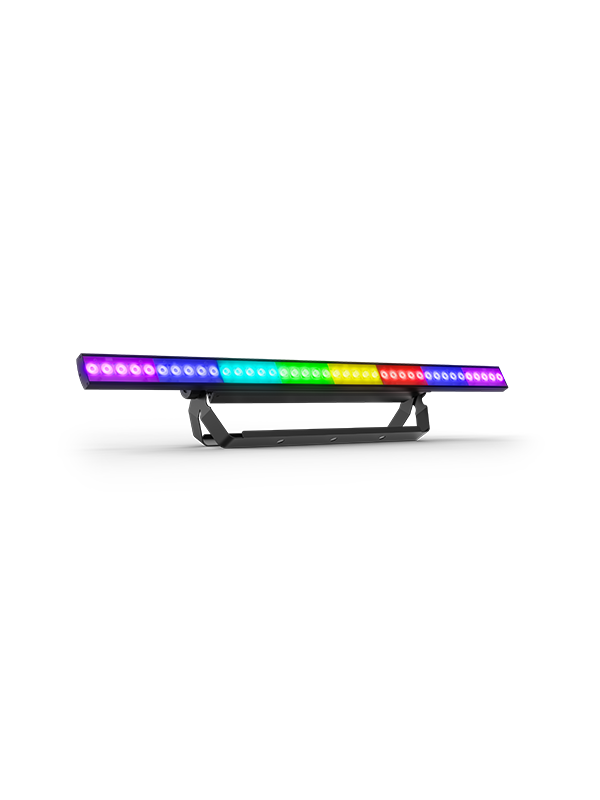

COLORstrip Pix ILS
Create standout event visuals with COLORstrip PiX ILS. This strip light produces wash light and eye candy effects like you’ve never seen before thanks to its custom lenses. It has 40 tri-color LEDs (Red, Green, Blue). ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Master the beauty and power of color with this innovative fixture.
Images & VIDEOS
Highlights
Full-size LED strip light functions as a pixel mapping effect, uplight, or for great eye-candy effects
ILS compatibility for use in the ILS ecosystem
Create dazzling effects by linking multiple units together to make runway chases
D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
Create amazing animations and video effects with individual LED control
Ideal for quiet applications due to silent operation and no moving parts
Wireless, non-DMX operation is available with the optional IRC-6 remote
Easily transports in the optional CHS-60 VIP Gear Bag
Specifications
- DMX Channels:3, 8, 120, 122
- DMX Connectors:3-pin XLR
- Light Source:40 LEDs (tri-color) 2 W, (0.8A), 50,000 hours life expectancy.
- Strobe Rate:0 to 20 Hz
- Beam Angle:14°
- Field Angle:24°
- Illuminance:4,967 lux @ 2 m
- Lumens:1,491
- Power Linking:7 units @ 120 V; 10 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
79 W, 1.2 A @ 120 V, 60 Hz
77 W, 0.8 A @ 230 V, 50 Hz - Weight:6.2 lb. (2.8 kg)
- Size:38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
- Approvals:CE, ROHS
- Cable Length: 5 ft (1.52 m)
- Bracket Mounting Hole: 13mm
- Optional Controllers: IRC6, ILS Command
What's Included
- COLORstrip Pix ILS
- COLORstrip Pix ILS
- Power cord
- Quick Reference Guide
