COREpar Q60 ILS

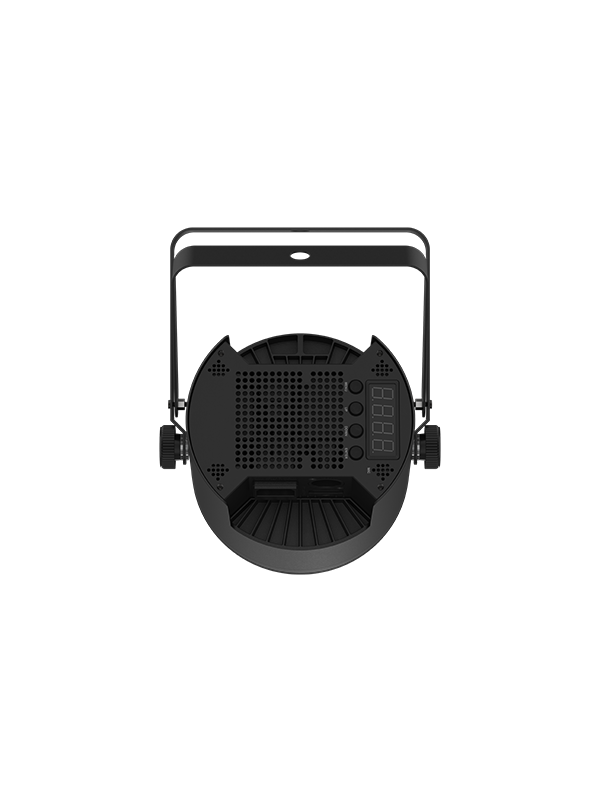

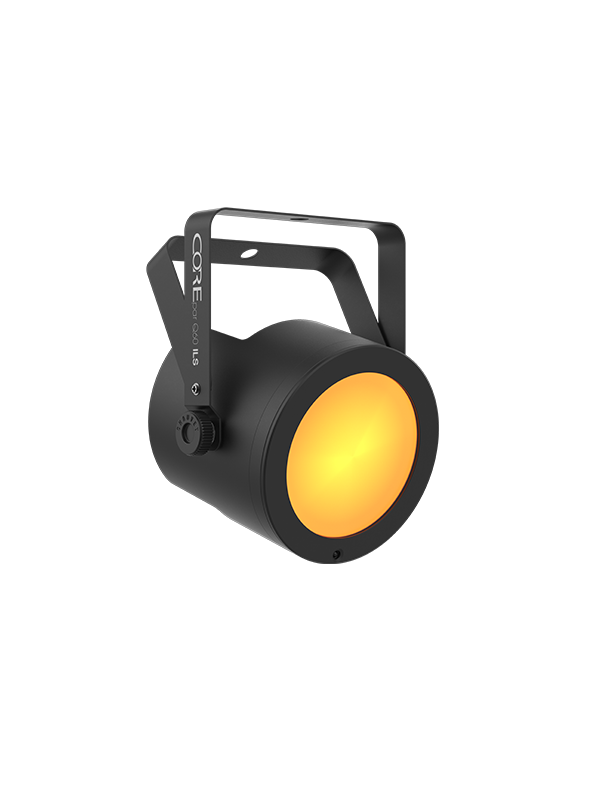

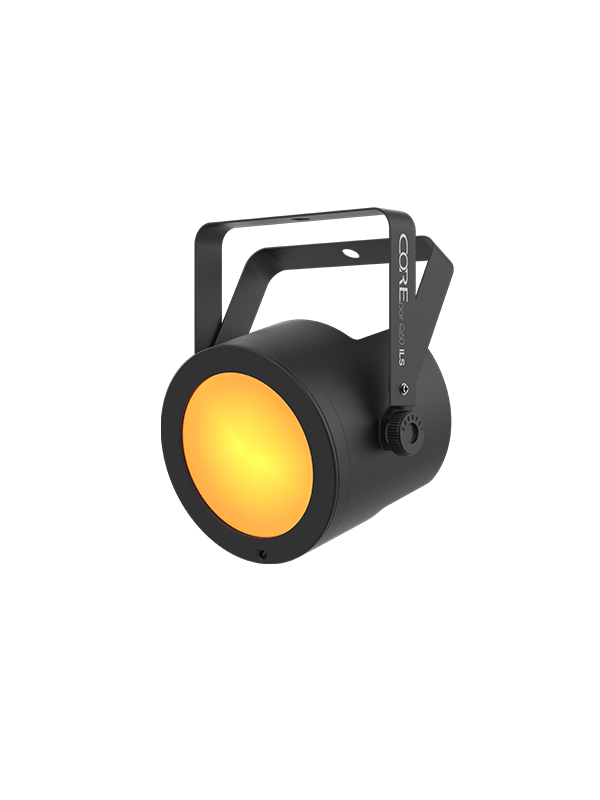

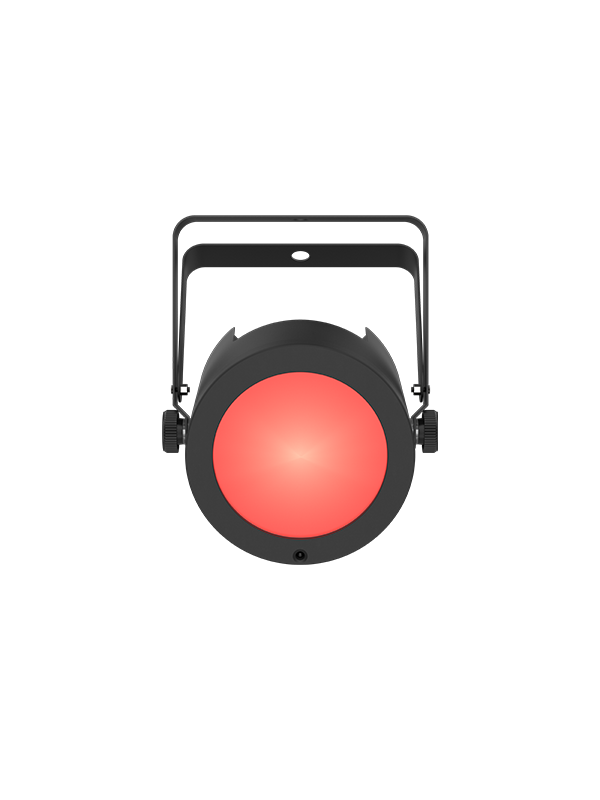

COREpar Q60 ILS is a 60-watt quad-color (RGBW) COB (Chip-on-Board) LED that produces a full spectrum of light with unsurpassed color mixing. Its robust housing withstands the harshness of traveling from gig to gig and its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. Among the powerful features of the COREpar Q60 is ILS compatibile which means creating coordinated light shows across different fixture types easy. D-Fi USB compatibility is also board for wireless Master/Slave or DMX control. Achieve flicker-free video operation with high-frequency LED dimming and the included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds. Create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves.

Highlights

  • COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing

  • ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds

  • Withstand the harshness of traveling from gig to gig with a robust housing

  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units

  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Easily transports in the optional CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:4 or 9
  • DMX Connectors:3-pin XLR
  • Light Source:1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy.
  • Strobe Rate:0 to 29 hz
  • Beam Angle:
    (without lens): 74°
    (with lens): 20°
  • Field Angle:
    (without lens): 100°
    (with Lenes): 30°
  • Illuminance:
    (without lens) : 320 lux @ 2 m
    (with lens) : 2,796 lux @ 2 m
  • Power Linking:9 units @ 120 V; 17 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    59 W, 0.8 A @ 120 V, 60 Hz
    57 W, 0.5 A @ 230 V, 50 Hz
  • Weight:3.4 lbs. (1.5 kg)
  • Size:7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm)
  • Approvals:CE, RoHS, UKCA
  • Cable Length: 5ft (1.5 m)
  • Bracket Mounting Hole: 13 mm
  • Optional Controllers: IRC6, D-Fi USB

What's Included

  • COREpar Q60 ILS
  • Fixture
  • Power cord
  • Magnetic lens
  • Quick Reference Guide
Save & Print

Downloads

COREpar Q60 ILS - Quick Reference Guide
COREpar Q60 ILS - ShowXpress Profile
