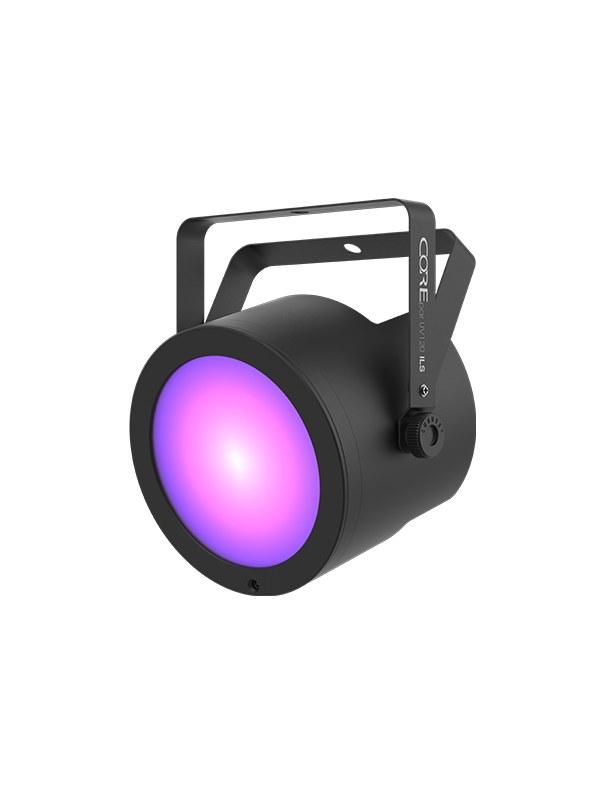

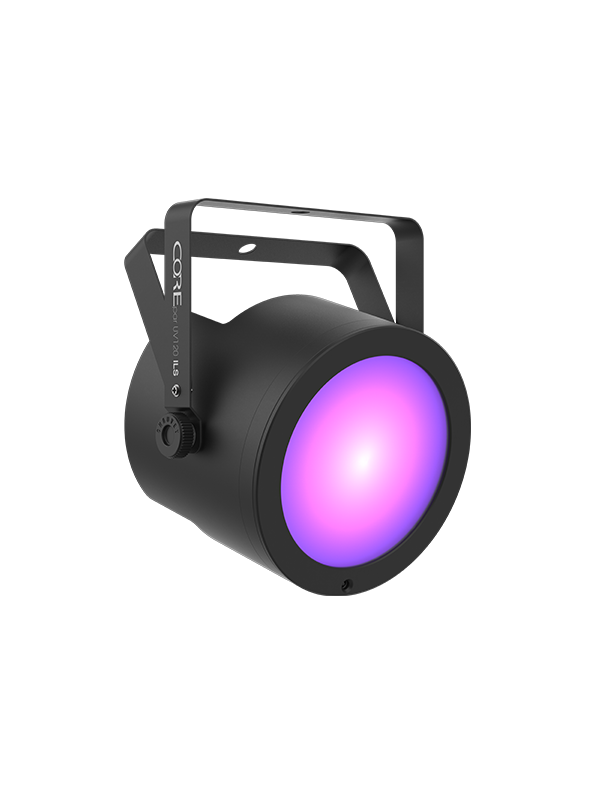

COREpar UV 120 ILS

COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also on board is ILS compatibility which makes creating coordinated light shows across different fixture types easy. COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds. Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.

Highlights

  • Compact ultra-wide UV wash with COB (Chip-on-Board) technology

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)

  • Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds

  • Withstand the harshness of traveling from gig to gig with a robust housing

  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units

  • Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:1 or 5
  • DMX Connectors:3-pin XLR
  • Light Source:1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:
    (with lens): 21°
    (without lens): 44°
  • Field Angle:
    (with lens): 34°
    (without lens): 94°
  • Power Linking:5 units @ 120 V; 9 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    119 W, 1.5 A @ 120 V, 60 Hz
    118 W, 0.9 A @ 230 V, 50 Hz
  • Weight:4.6 lb (2.1 kg)
  • Size:8.9 x 7.4 x 9 in (225 x 185 x 228 mm)
  • Approvals:CE, RoHS, UKCA
  • Optional Controllers: IRC-6, D-Fi USB
  • Wavelength: 390 to 400 nm

What's Included

  • COREpar UV 120 ILS
  • Fixture
  • Power cord
  • Magnetic Lens
  • Quick Reference Guide
Save & Print

Downloads

COREpar UV 120 ILS - Quick Reference Guide
COREpar UV 120 ILS - User Manual
COREpar UV 120 ILS - ShowXpress Profile
