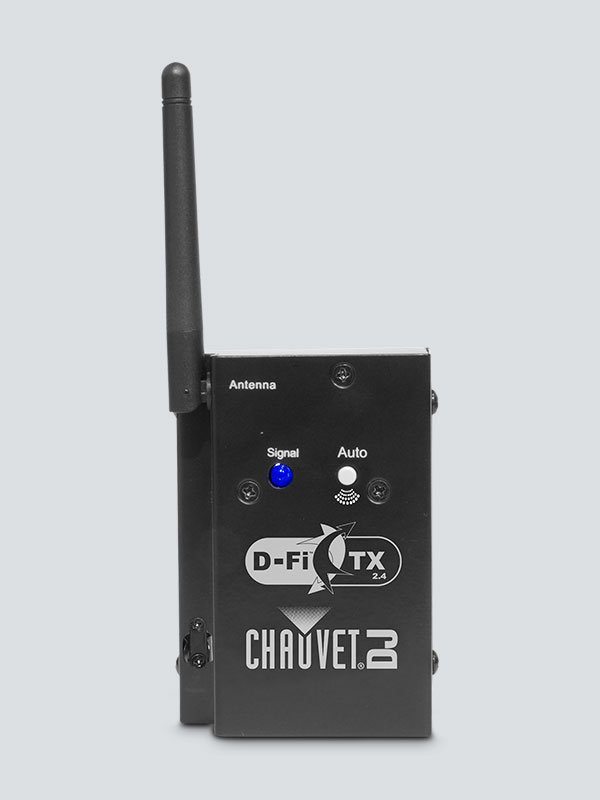

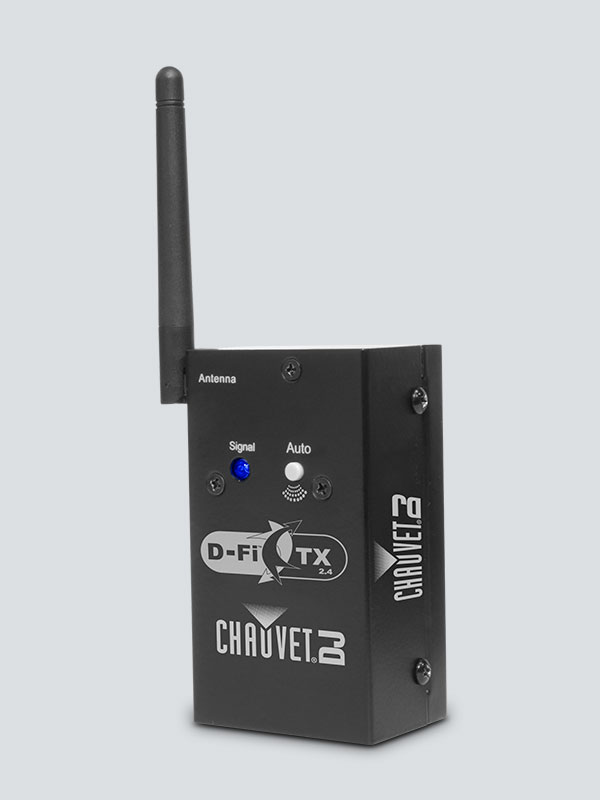

D-Fi Tx 2.4
Next Gen Product Available
D-Fi Hub
D-Fi Tx 2.4 is part of the D-Fi family of easy to use, wireless DMX units. The super-compact Tx model acts solely as a transmitter for any product that receives the D-Fi 2.4GHz signal including: D-Fi Rx 2.4, D-Fi 2.4GHz and Freedom Series. For more stable communication between units, this version operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency available and effortlessly syncs the units.
Images & VIDEOS
Highlights
Compact, easy-to-use wireless DMX transmitter
Achieve up to 656 ft of wireless DMX communication (clear line of sight)
Compatible with all CHAUVET® DJ D-Fi™ 2.4 GHz products
Wirelessly synchronize multiple receivers to a single CHAUVET® DJ D-Fi 2.4 GHz transmitter
Quickly and easily synchronize with the press of a button
Adjustable antenna includes a safety transport clip

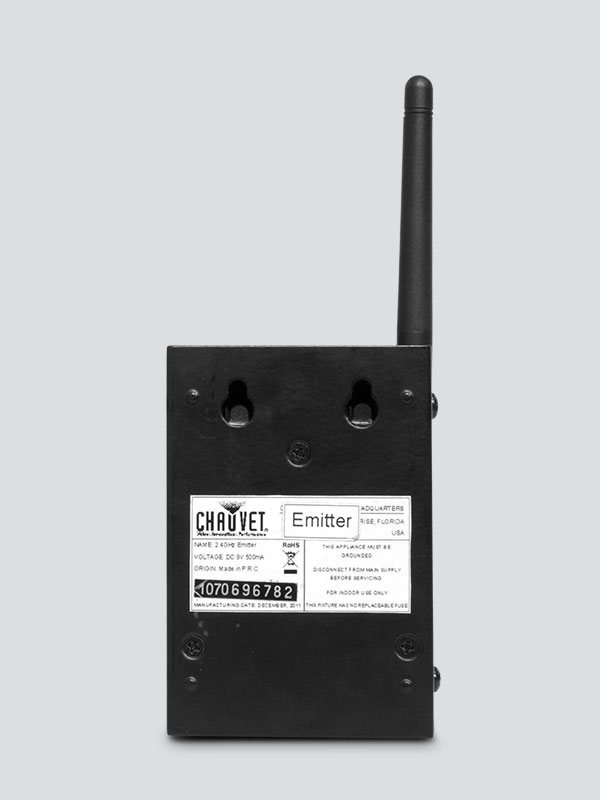

Mounting options include teardrop holes for wall mounting and an M12 threaded hole for a clamp
Specifications
- DMX Connectors:3-pin XLR
- Max Unobstructed Distance:656 ft (200 m)
- Operating Frequency:2.433 to 2.481 GHz
- Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Weight:0.4 lb (0.18 kg)
- Dimensions:3.8 x 2.6 x 1.5 in (97 x 66 x 38 mm)
- Approvals:CE, FCC
- RF Output: 18.5 dBm
- Antenna Connection: RP-SMA
What's Included
- D-Fi Tx 2.4
