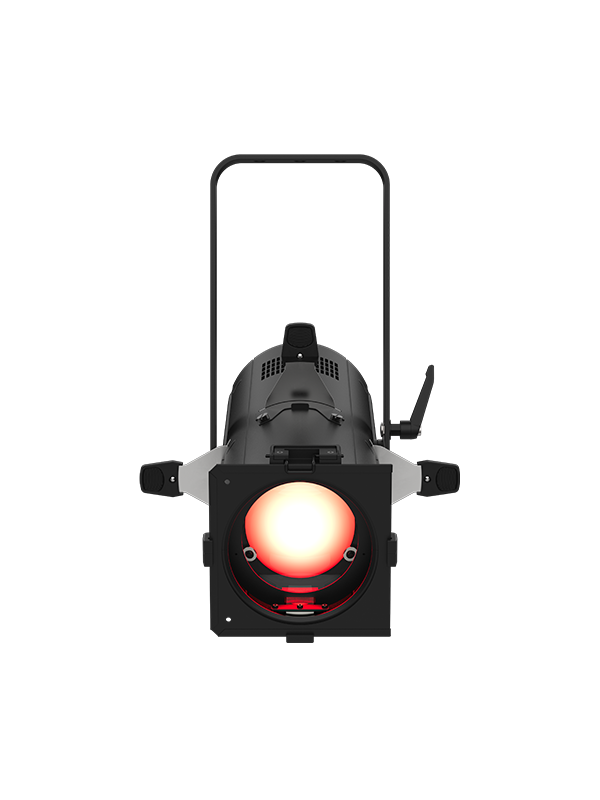

EVE E-160ZQ
Upgrade your small stage lighting with EVE E-160ZQ. This full-color ellipsoidal is designed for both mobile and install applications. With a 160W quad-color (RGB+WW) LED this fixture is at the top of its class. Its pre-set color temperature ranges simplify the lighting design process. Enjoy effortless stage lighting with EVE E-160ZQ.
Highlights
Full-color ellipsoidal designed for mobile and installation applications
Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances
Pre-set color temperature ranges eliminate the need for manual color blending
Flicker-free operation suitable for on-camera use
D-Fi USB compatibility for wireless master/slave or DMX control

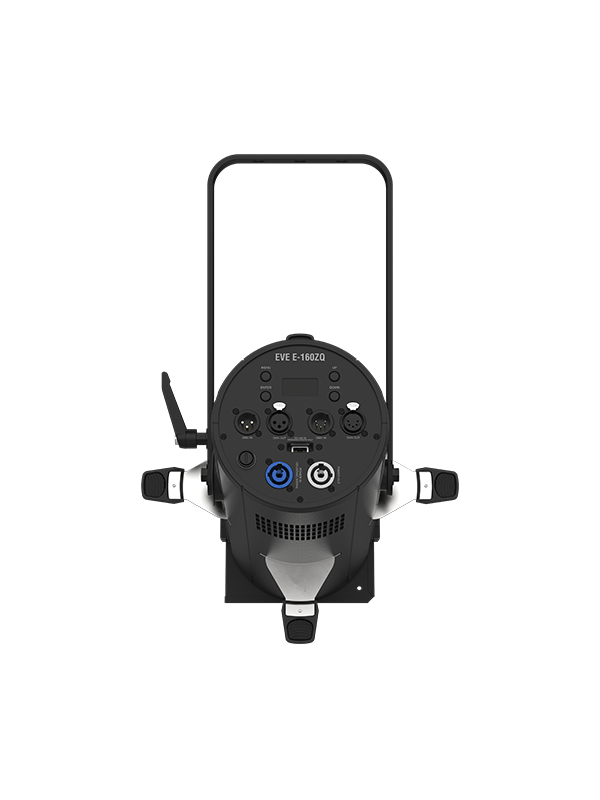

powerCON®-compatible power input/output connections for power linking
Specifications
- DMX Channels:3, 4, 11
- DMX Connectors:3- and 5-pin XLR
- Light Source:1 LED (quad-color RGBW) 160 W, 7.3 A), 50,000 hours life expectancy
- Zoom Angle:24° to 37°
- Lumens:5231
- Power Linking:9 units @ 120 V; 16 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Gobo Size:M (66 mm outside, 48 mm image, 2 mm max thicknes
- Weight:12.2 lb. (5.5 kg)
- Size:18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm) Approvals: CE, RoHS, MET
- Approvals:CE, RoHS, MET
- Accessory Holder Size: 6.25 in
- Color Temperature Range: 2800 K – 8000 K
- Strobe Rate: 1 to 30 Hz
- Illuminance (24°): 7072 lux @ 2 m
- Illuminance (37°): 2964 lux @ 2 m
- Illuminance (24°): 1132 lux @ 5 m
- Illuminance (37°): 474 lux @ 5 m
- Power and Current: 150 W, 1.3A @ 120 V, 60 H
- Power and Current: 150 W, 0.7 A @ 230 V, 50 Hz
What's Included
- EVE E-160ZQ
- EVE E-160ZQ
- Power cord
- Gel frame
- Metal gobo holder
- Glass gobo holder
- Quick reference guide
