New

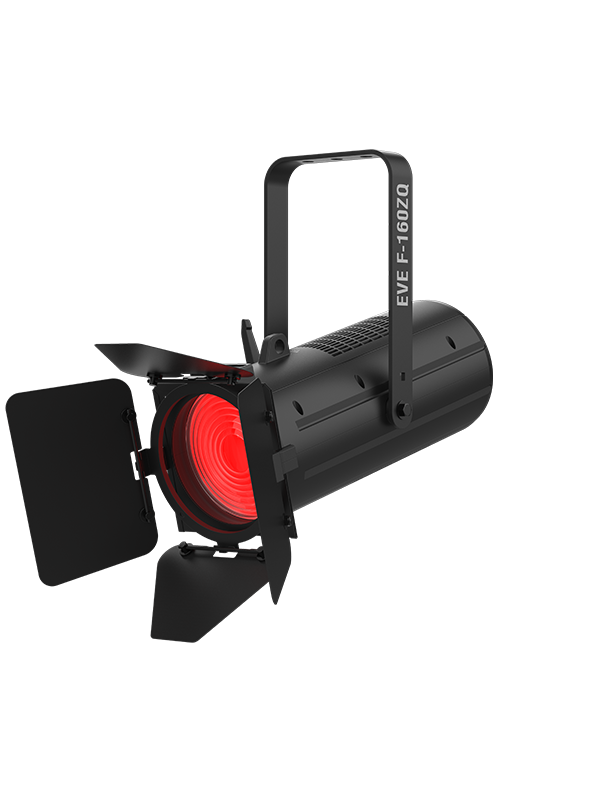

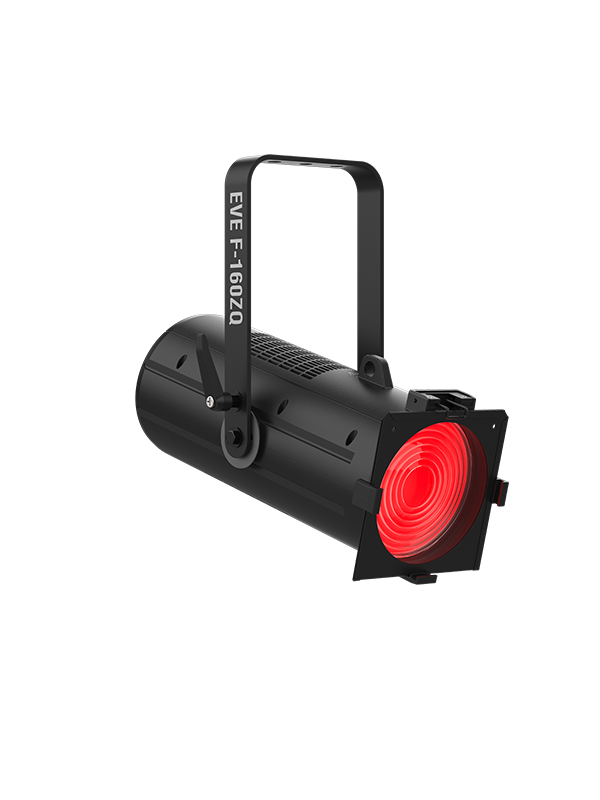

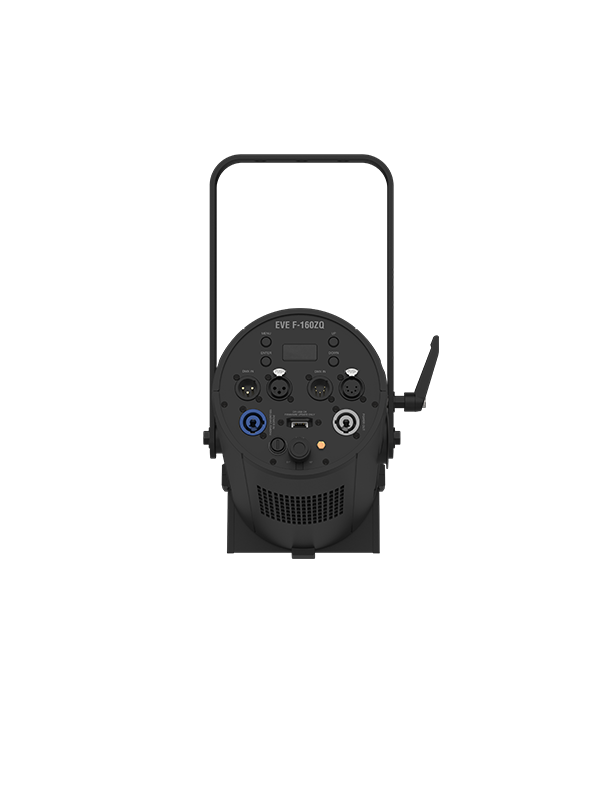

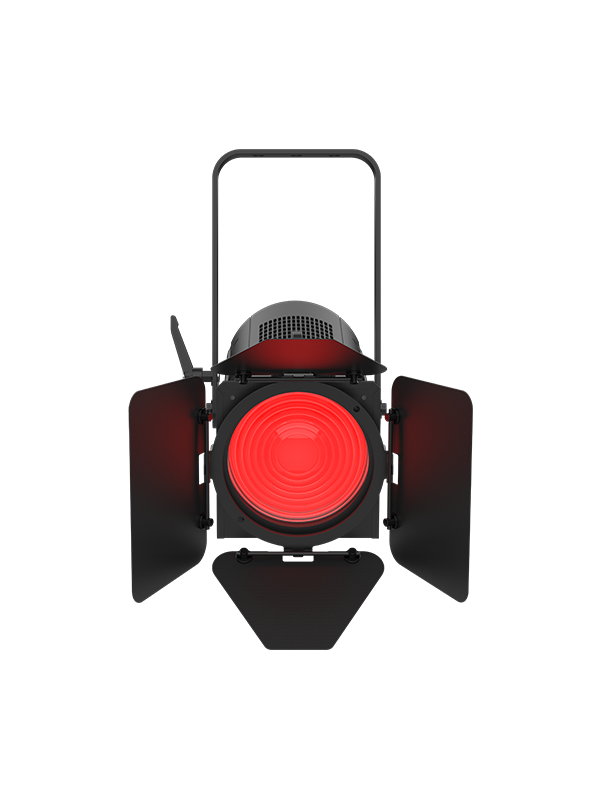

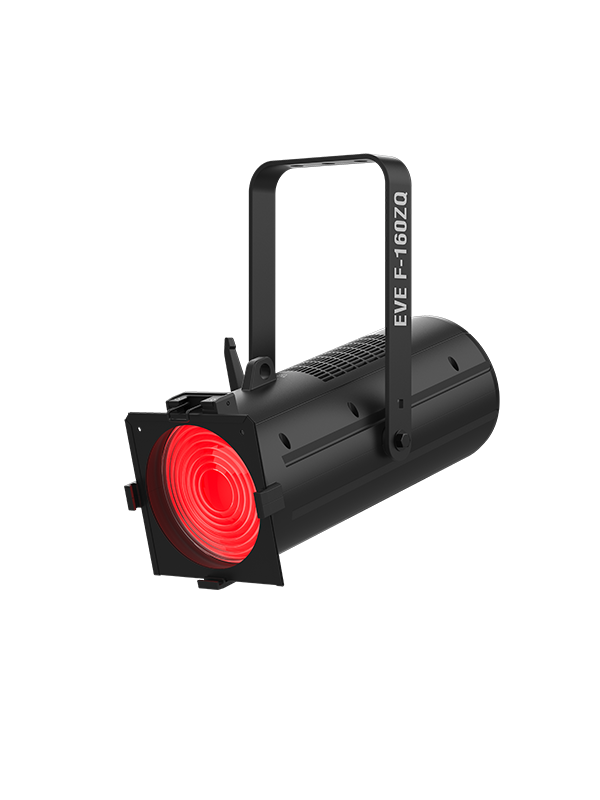

EVE F-160ZQ

Bring color to the stage with EVE F-160ZQ, a full-color fresnel suitable for both mobile and installation. It has a 160W quad-color (RGBW) light source. With flicker-free operation for on-camera use and pre-set color temperature ranges that simplify the lighting design process, light up the stage with EVE F-160ZQ.

Highlights

  • Full-color Fresnel designed for mobile and installation applications

  • Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances

  • Pre-set color temperature ranges eliminate the need for manual color blending

  • Flicker-free operation suitable for on-camera use

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • powerCON®-compatible power input/output connections for power linking

Specifications

  • DMX Channels:3, 4 or 11
  • DMX Connectors:3- and 5-pin XLR
  • Light Source:1 LED (quad-color RGBW) 160 W, (7.3 A), 50,000 hours life expectancy
  • Beam Angle:16° - 61°
  • Field Angle:29° - 90°
  • Power Linking:9 units @ 120 V; 16 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight:12.2 lb. (5.5 kg)
  • Size:18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
  • Approvals:CE, RoHS, MET
  • Accessory Holder Size: 6.25 in
  • Color Temperature Range: 2800 K – 8000 K
  • Strobe Rate: 1 to 30 Hz
  • Illuminance (24°): 7072 lux @ 2 m
  • Illuminance (37°): 2964 lux @ 2 m
  • Illuminance (24°): 1132 lux @ 5 m
  • Illuminance (37°): 474 lux @ 5 m
  • CRI: 96
  • Optional Controllers: DMX
  • Power and Current: 150 W, 1.3A @ 120 V, 60 Hz
  • Power and Current: 150 W, 0.7 A @ 230 V, 50 Hz

What's Included

  • EVE F-160ZQ
  • EVE F-160ZQ
  • Power cord
  • Barn doors
  • Gel frame
  • QRG - Quick reference guide
