EVE F-50Z

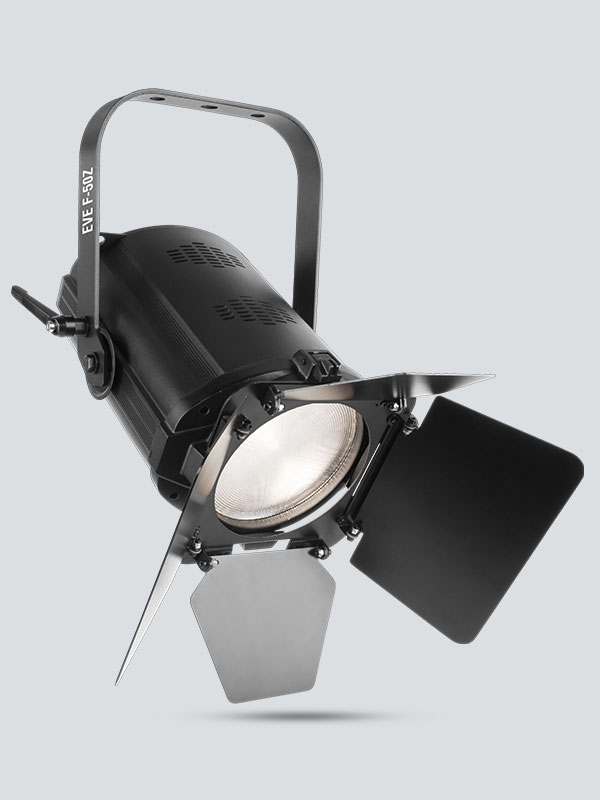

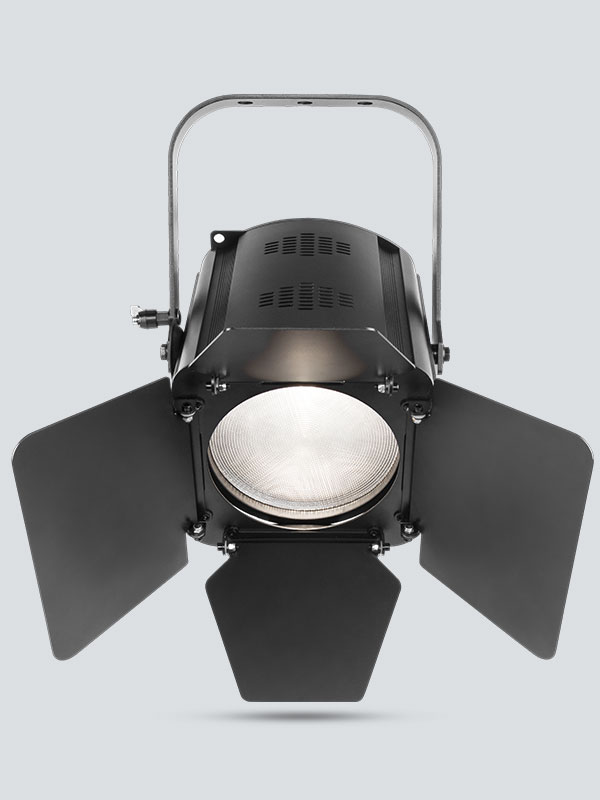

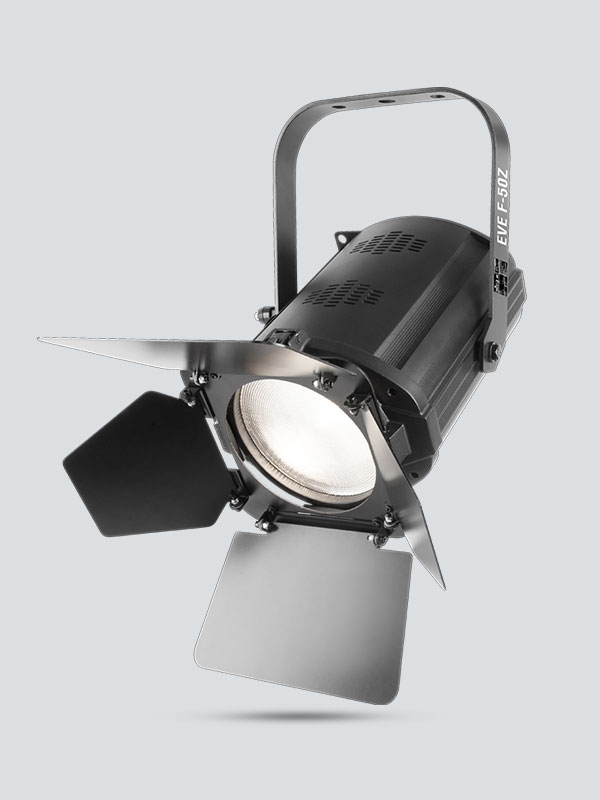

EVE F-50Z is an LED Fresnel fixture that shines a soft-edged, warm white spot and features D-Fi™ USB compatibility for wireless master/slave or DMX control. It’s designed for mobile and installation applications. Manual zoom gives you the flexibility to project from any distance. You can operate EVE F-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units.

Highlights

  • Stylish, compact Fresnel perfect for small to medium stages and theatres

  • Warm white LED with high CRI show the true natural colors of scenery and cast

  • Flexibility to project from any distance using the manual zoom

  • D-Fi™ USB compatibility for wireless Master/Slave or DMX control

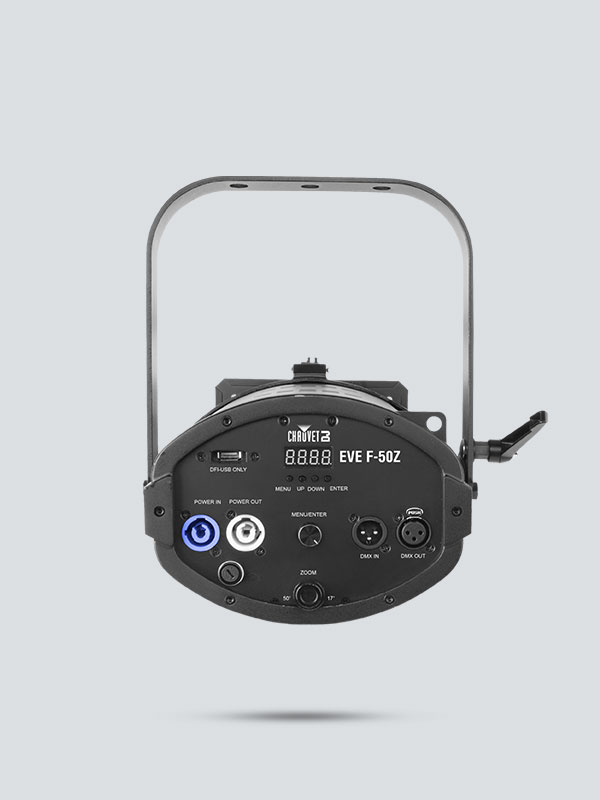

  • powerCON®-compatible power input/output connections for power linking

  • Included Barn Doors keeps light where you need it

  • Included Gel Frame adds a splash of color to any scene

Specifications

  • DMX Channels:1 or 3
  • DMX Connectors:3-pin XLR
  • Light Source:1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
  • Beam Angle:(Narrow): 17°
    (Wide): 50°
  • Zoom Angle:(manual): 17° to 50°
  • Illuminance:(17°): 4,780 lux @ 2 m
    (50°): 998 lux @ 2 m
    (17°): 853 lux @ 5 m
    (50°): 156 lux @ 5 m
  • Power Linking:16 units @ 120 V; 26 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:60 W, .5 A @ 120 V, 60 Hz
    58 W, .3 A @ 230 V, 50 Hz
  • Weight:8.41 lb (3.9 kg)
  • Size:11.1 x 8.3 x 13 in (281 x 212 x 328 mm)
  • Approvals:CE, MET
  • Accessory Holder/Gel Frame Size: 6.25 in (158 mm)
  • Color Temperature: 3500 K
  • CRI: 92
  • Bracket Mounting Hole: M12
  • Optional Controllers: D-Fi USB

What's Included

  • EVE F-50Z
  • EVE F-50Z
  • Power cord
  • Barn doors
  • Gel Frame
  • Warranty card
  • Quick Reference Guide
Save & Print

Downloads

EVE F-50Z User Manual
EVE F-50Z Quick Reference Guide
EVE F-50Z ShowXpress Profiles
