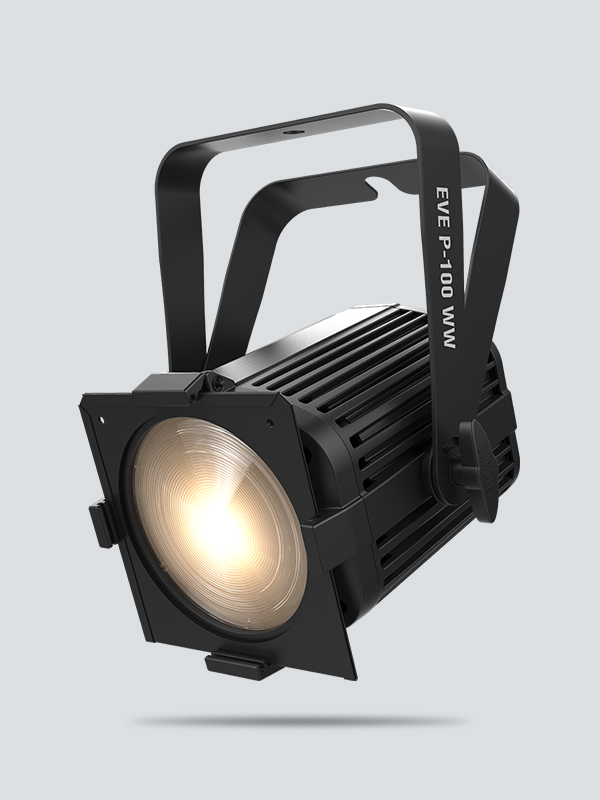

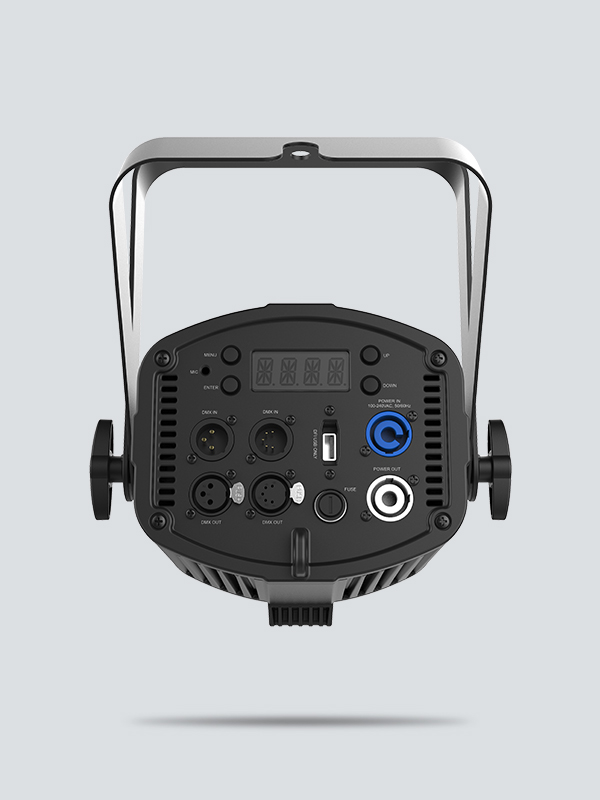

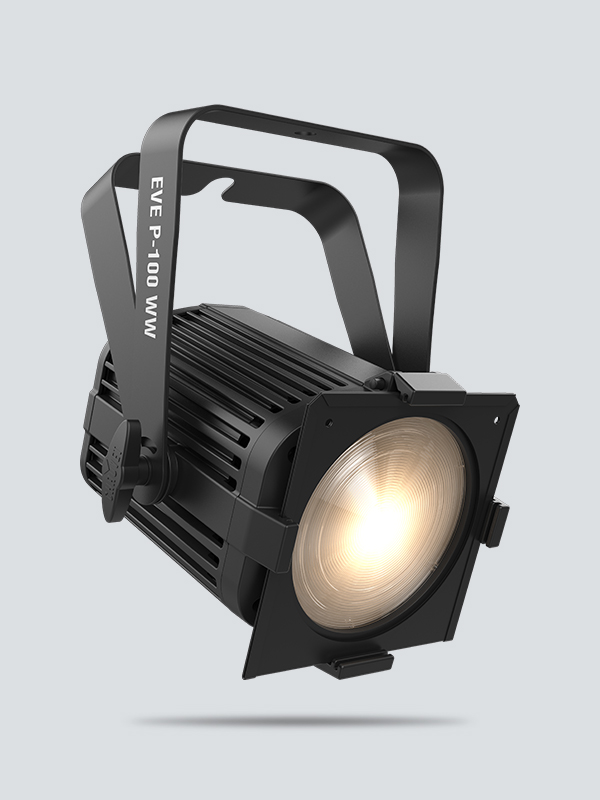

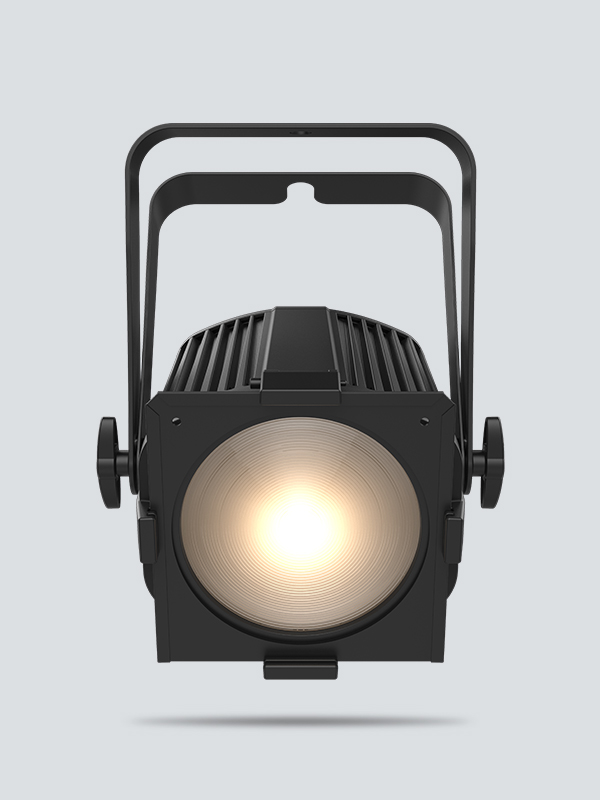

EVE P-100 WW

Warm, bright and even wash is at hand with EVE P-100 WW, a high output warm white (3500 K) wash light designed for mobile and installation applications. It includes interchangeable magnetic lenses to alter the beam to desired angles. EVE P-100 WW features a built-in gel frame holder and handy 6¼-inch accessory slot to hold barn doors. Its fanless design ensures 100% silent operation making it great for quiet applications. High-frequency LED dimming eliminates flicker making EVE P-100WW great for video and broadcast applications. D-Fi USB compatibility is on board for wireless master/slave or DMX control as well as powerCON®-compatible power input/output connections for power linking. Sturdy cast aluminum housing provides extra strength without the weight. EVE P-100WW fits best in the CHS-40 VIP gear bag.

Highlights

  • High output warm white (3500 K) wash light designed for mobile and installation applications

  • Included interchangeable magnetic lenses alter the beam to desired angles

  • Built-in gel frame holder and 6¼-inch accessory slot to hold barn doors

  • Fanless design ensures 100% silent operation

  • Flicker-free on video due to the high-frequency LED dimming

  • D-Fi USB compatibility for wireless master/slave or DMX control

  • Cast aluminum housing provides extra strength without the weight

  • powerCON®-compatible power input/output connections for power linking

  • Fits best in the CHS-40 VIP gear bag

Specifications

  • DMX Channels:1, 2 or 4
  • DMX Connectors:3- and 5-pin XLR
  • Light Source:1 COB (warm white) 100 W, (2.7 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 25 Hz
  • Beam Angle:35°, 65°, or 67°
  • Field Angle:58°, 96°, or 89°
  • Illuminance:(35°): 6,085 lux @ 2 m (lens 1)
    (67°): 2,532 lux (no lens)@ 2 m
    (65°): 2,050 lux @ 2 m (lens 2)
    (35°): 974 lux @ 5 m (lens 1)
    (67°): 405 lux @ 5 m (no lens)
    (65°): 328 lux @ 5 m (lens 2)
  • Lumens:11,322
  • Power Linking:7 units @ 120 V; 14 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:122 W, 1.2 A 120 V, 60 Hz
    119 W, 0.5 A @ 230 V, 50 Hz
  • Weight:7.6 lb (3.5 kg)
  • Size:8.6 x 9.65 x 12 in (220 x 245 x 305 mm)
  • Approvals:CE, MET
  • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
  • Color Temperature: 3500 K
  • Optional Controllers: D-Fi USB
  • CRI: 98

What's Included

  • EVE P-100 WW
  • EVE P-100 WW
  • Lens 1 and Lens 2
  • Power cord
  • Gel Frame
  • Hanging bracket
  • Quick Reference Guide
Save & Print

Downloads

EVE P-100 WW Quick Reference Guide
EVE P-100 WW User Manual
EVE P-100 WW ShowXpress Profile
