Discontinued Since 2021

EZLink Par Q1BT

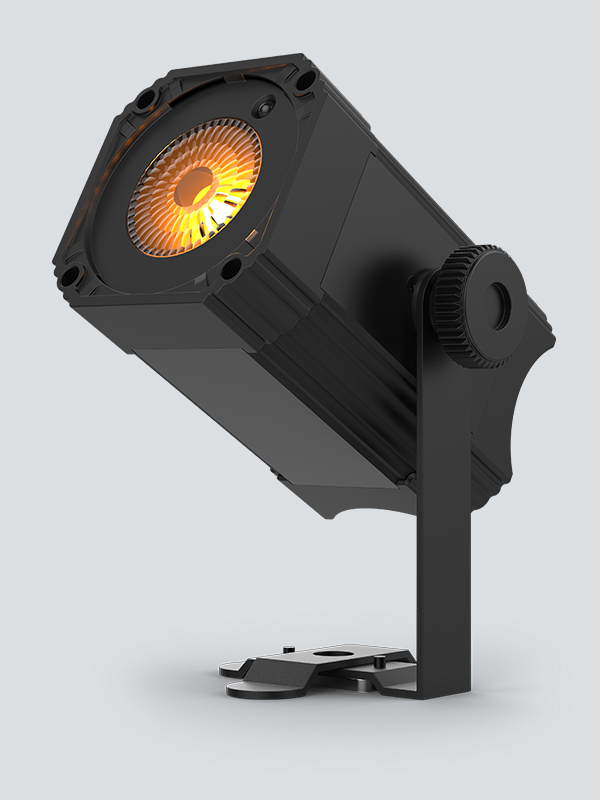

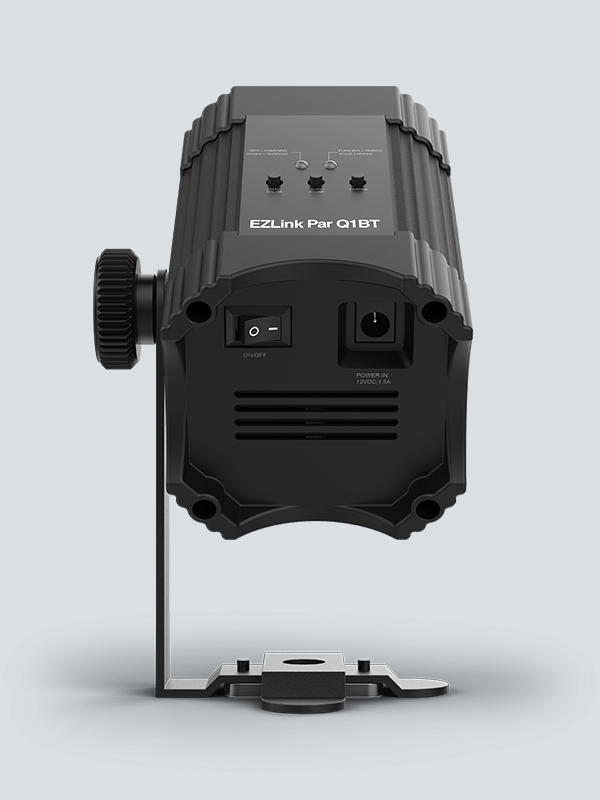

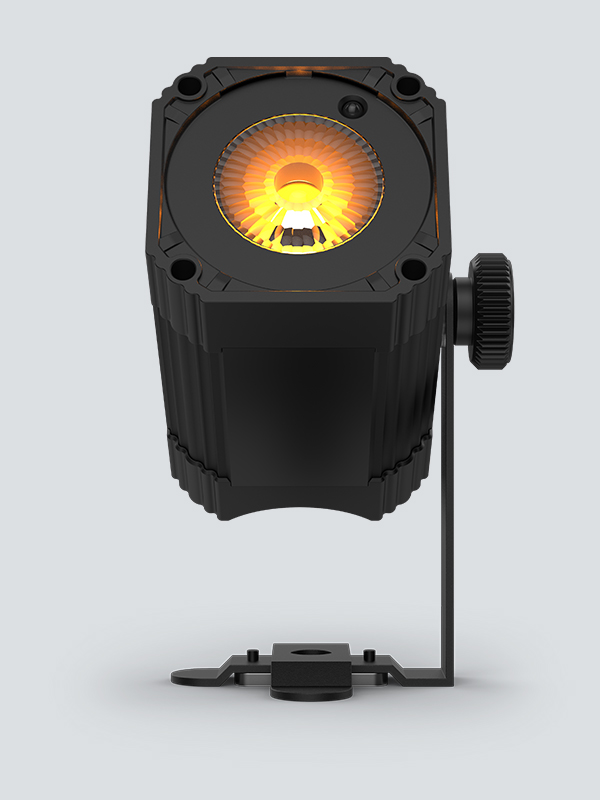

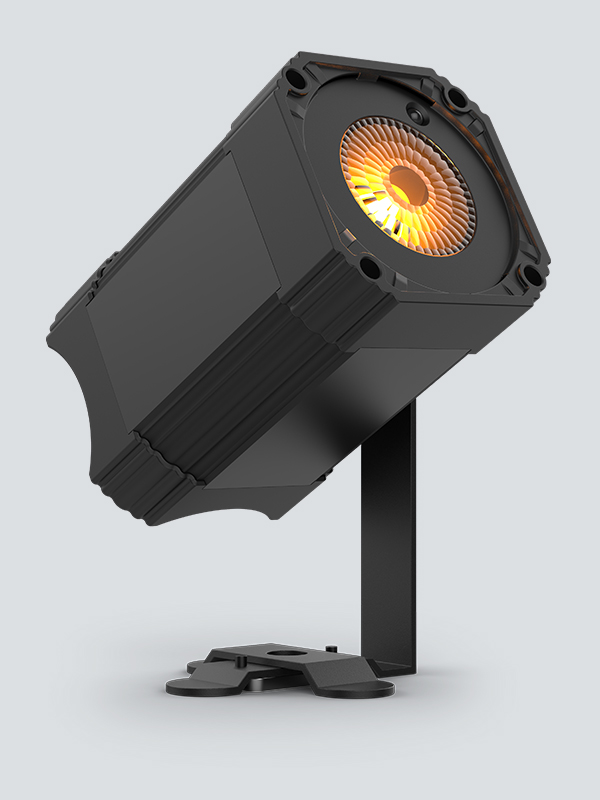

EZLink Par Q1BT is an extremely compact battery-powered quad-color (RGBA) wash light with built-in Bluetooth® wireless technology. Control EZLink Par Q1BT from the free BTAir smartphone app (patent pending) with no additional hardware needed! Easily warm sticks of TRUSST or bring the tightest spaces to light with EZLink Par Q1BT’s magnetic base. EZLink Par Q1BT features a single RGBA LED for rich color mixing including punchy amber.





The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

Highlights

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Wash with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • Magnetic base affixes to most metal surfaces, eliminating the need for clamps

  • Convenient, wireless non-DMX control using the IRC-6 remote

  • Compact size provides effortless transport and set-up

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Compact design easily fits inside sticks of TRUSST

Specifications

  • Max Unobstructed Distance:150 ft (45.7 m)
  • Light Source:1 LED (quad-color RGBA) 5 W, (500 mA), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • PWM Frequency:2.43 kHz
  • Beam Angle:15°
  • Field Angle:25°
  • Maximum Run Time:(all on): up to 8 hours
    (single color): up to 20 hours
  • Recharge Time:6 hours
  • Operating Frequency:2.4 GHz
  • Illuminance:355 lux @ 2 m
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:10 W, 0.2 A @ 120 V, 60 Hz
    11 W, 0.1 A @ 230 V, 50 Hz
  • Weight:0.8 lb (0.4 kg)
  • Size:4.4 x 3.5 x 5.1 in (111.5 x 89 x 130 mm)
  • Approvals:CE, FCC
  • Output:12 VDC, 1 A (external power supply: 100~240 VAC, 50/60 Hz 75mA)
  • Bracket Mounting Hole: M10
  • Optional Controllers: IRC-6, BTAir
  • Bluetooth Version: 4.2

What's Included

  • EZLink Par Q1BT
  • EZLink Par Q1BT
  • External power supply
  • Quick Reference Guide
Save & Print

Downloads

EZlink Par Q1BT Quick Reference Guide
