EZPin Zoom Pack

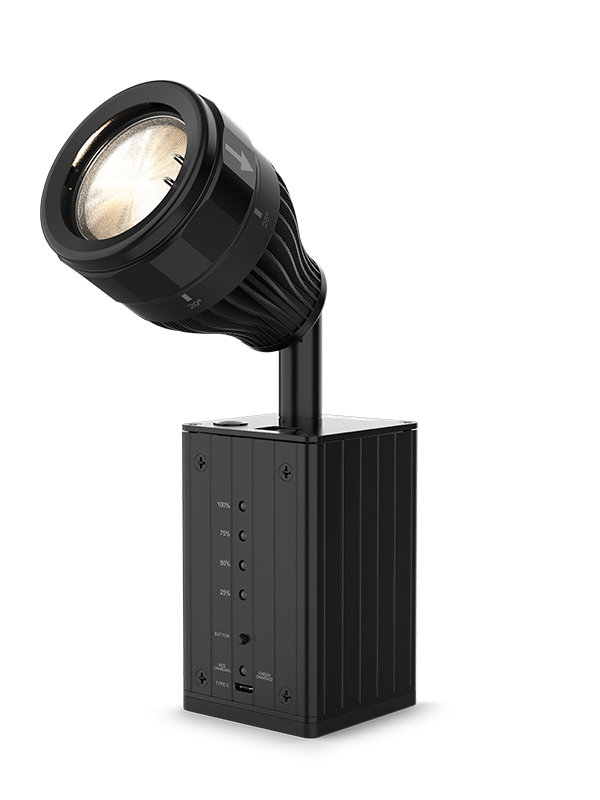

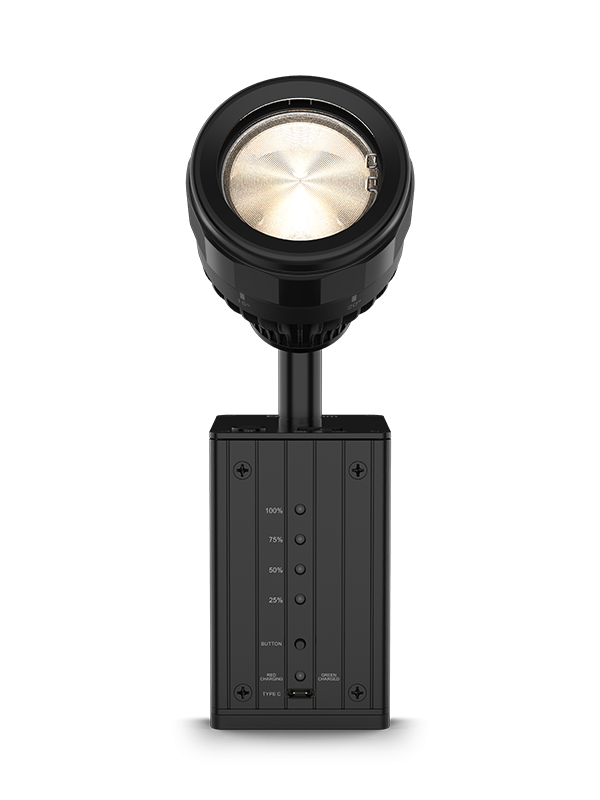

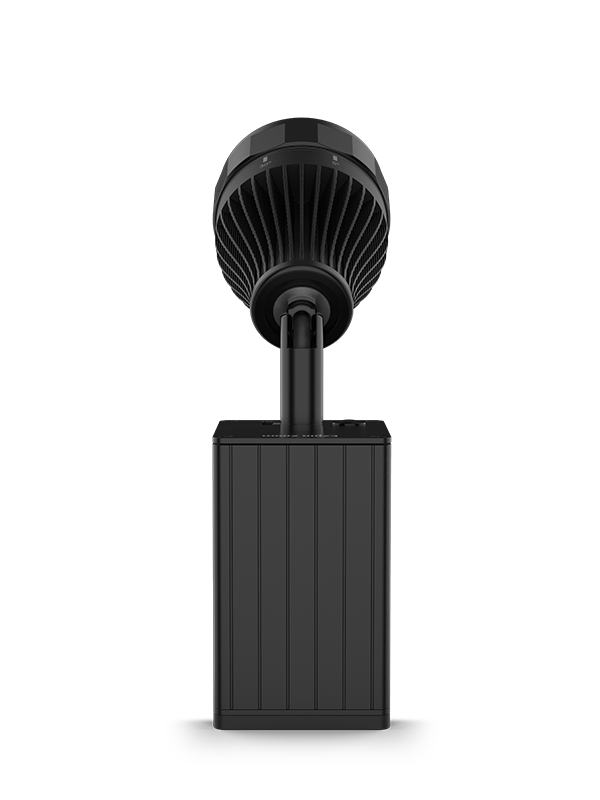

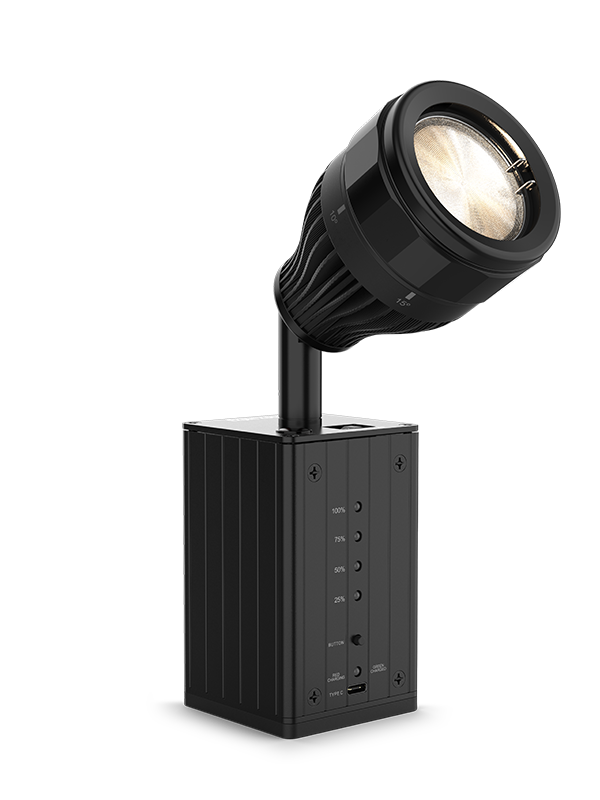

EZPin Zoom Pack takes pin spot lighting to new heights of versatility. EZPin Zoom features manual zoom adjustment with a wide range to accommodate fixture placement at any distance. The unit is equipped with a handy magnetic base that affixes to most metal surfaces, eliminating the need for clamps, while the rechargeable battery allows the fixture to be placed anywhere. EZPin Zoom features a manually adjustable head allowing for maximum room coverage and is attachable to most mic stands. Wireless on/off operation is available with the included IRC-6 remote. The EZPin Zoom Pack system includes 4 EZpin Zoom fixtures, IRC-6 remote, and a carry bag.

Highlights

  • Pin spotting system includes 4 EZpin Zoom fixtures, 1 IRC-6 remote and a FREE carry bag

  • Rechargeable battery allows the fixture to be placed anywhere

  • Wide zoom range accommodates fixture placement at any distance

  • Magnetic base affixes to most metal surfaces, eliminating the need for clamps

  • Manually adjustable head allows maximum room coverage

  • Wireless on/off operation is available with the included IRC-6 remote

Specifications

  • Light Source:1 LED (natural white) 5 W, (1.5 A), 50,000 hours life expectancy
  • PWM Frequency:51Hz
  • Maximum Run Time:up to 11 hours
  • Recharge Time:6 hours
  • Input Voltage:5 VDC, 8 A (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current:41 W, 0.6 A @ 120 V, 60 Hz
    40 W, 0.3 A @ 230 V, 50 Hz
  • Weight:1.6 lb (0.7 kg)
  • Size:2.4 x 2.6 x 9.2 in (60 x 66.5 x 234 mm)
  • Approvals:CE
  • Zoom Range: 5°-25°
  • Color Temperature: 4000 K
  • Bracket Mounting Hole: M10
  • Illuminance: (5°): 3,149 lux @ 2 m
  • Illuminance: (25°): 247 lux @ 2 m
  • Included gels: 2900 K

What's Included

  • EZPin Zoom Pack
  • 4 EZpin Zoom
  • 4 USB cables
  • 1 multi-charger
  • 1 IRC-6 Remote
  • 4 color gels (2900 K)
  • 1 carrying bag
  • Quick Reference Guide
Save & Print

Downloads

EZPin Zoom Pack Quick Reference Guide
