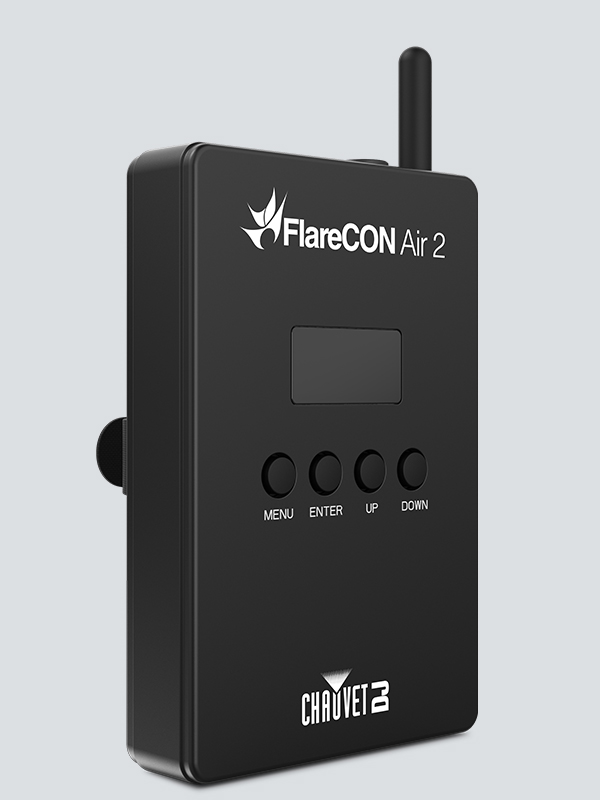

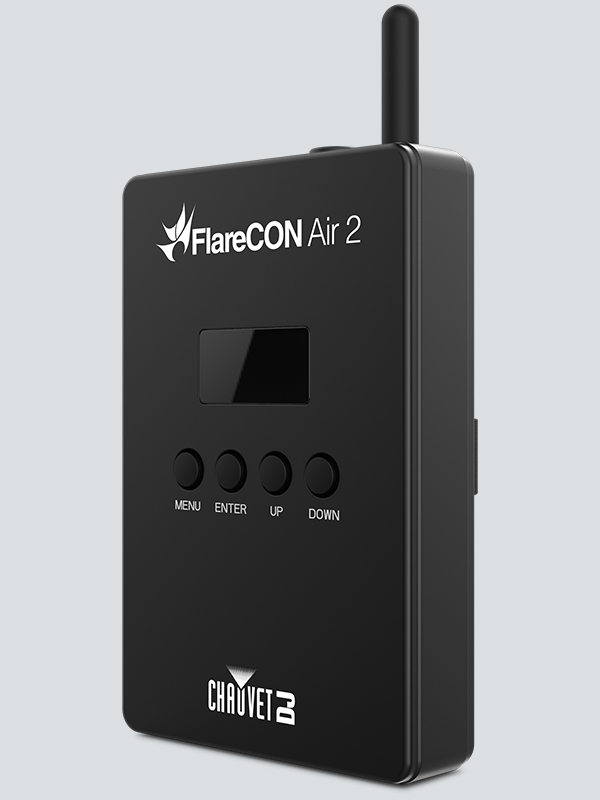

FlareCON Air 2

FlareCON Air 2 is a Compact, 100% TRUE wireless Wi-Fi™ receiver and wireless D-Fi® transmitter in a single unit. The unit has a built-in battery, generates its own Wi-Fi™ network, and can be used anywhere with no internet or hotspot needed! FlareCON Air 2 is compatible with both Android™ and Apple® operating systems for smartphones and tablets. Wirelessly control an unlimited number of D-Fi®-ready fixtures and receivers simultaneously. You can even control non-D-Fi™-enabled fixtures using the included cable adapter or using D-Fi XLR. Navigation of FlareCON Air 2 is easy with the on-board text readout and OLED digital display.

Highlights

  • Compact, 100% TRUE wireless Wi-Fi™ receiver and wireless D-Fi™ transmitter in a single unit

  • Save time running cables with the built-in battery

  • Generates its own Wi-Fi™ network and can be used anywhere with no internet or hotspot needed

  • Compatible with both Android™ and Apple® operating systems for smartphones and tablets

  • Can control non-D-Fi™-enabled fixtures using the included cable adapter

  • Wirelessly control an unlimited number of D-Fi™-ready fixtures and receivers simultaneously

  • Simple navigation and text readout using the OLED digital display

  • Built-in hook and loop fastener for direct mounting to truss

  • Fully FCC/RTTE compliant

Specifications

  • DMX Channels:512
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:(Wi-Fi™): 100 ft (30.5 m)
    (D-Fi™): 600 ft (183 m)
  • Maximum Run Time:up to 8 hours
  • Recharge Time:4 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Antenna Connection:RP-SMA
  • Input Voltage:5 VDC, 1.6 A (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current:4 W, 0.72 A @ 120 V, 60 Hz
    4 W, 0.45 A @ 230 V, 50 Hz
  • Weight:Weight: 0.6 lb (0.3 kg)
  • Size:6.2 x 3.3 x 0.9 in (158 x 83 x 24 mm)
  • Approvals:CE, FCC

What's Included

  • FlareCON Air 2
  • FlareCON Air 2
  • External Power supply
  • USB cable
  • DMX adaptor
  • Quick Reference Guide
