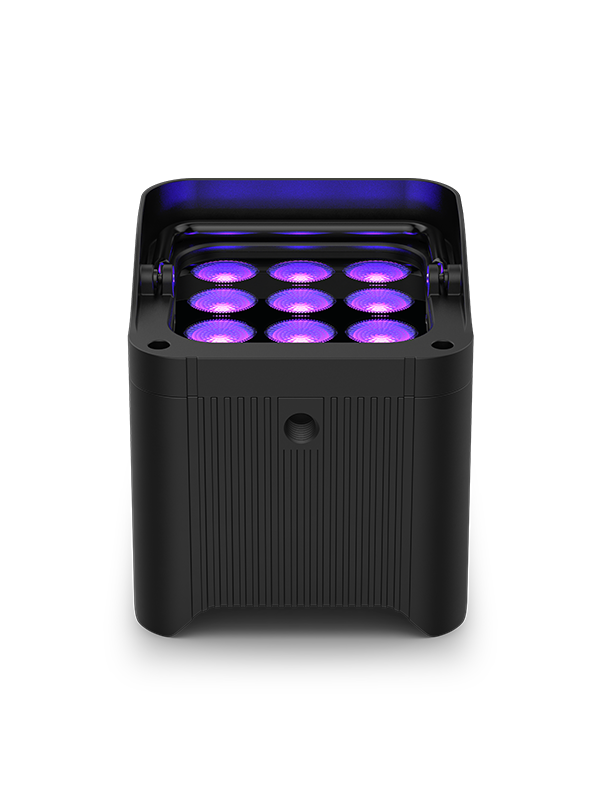

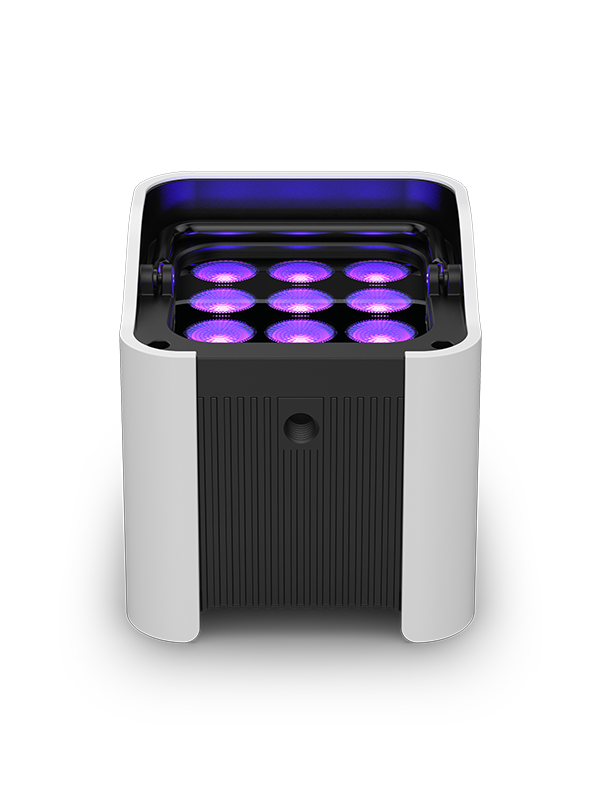

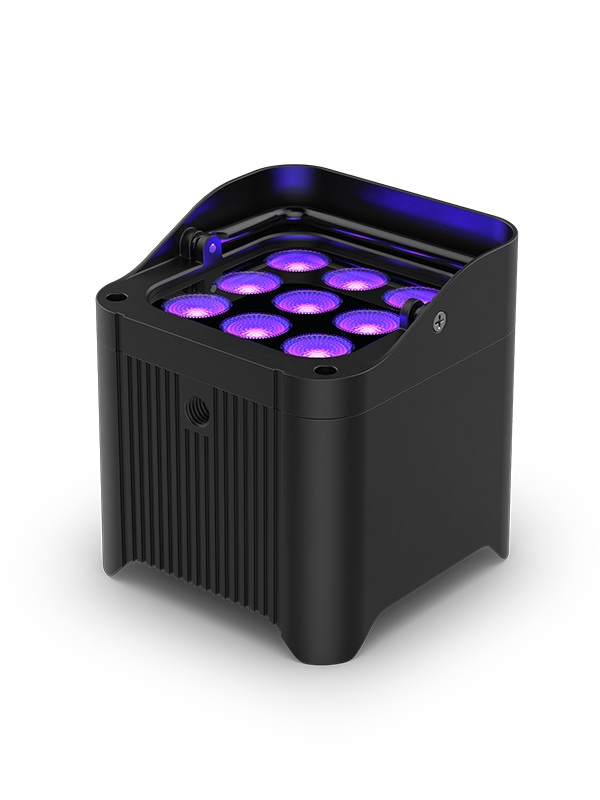

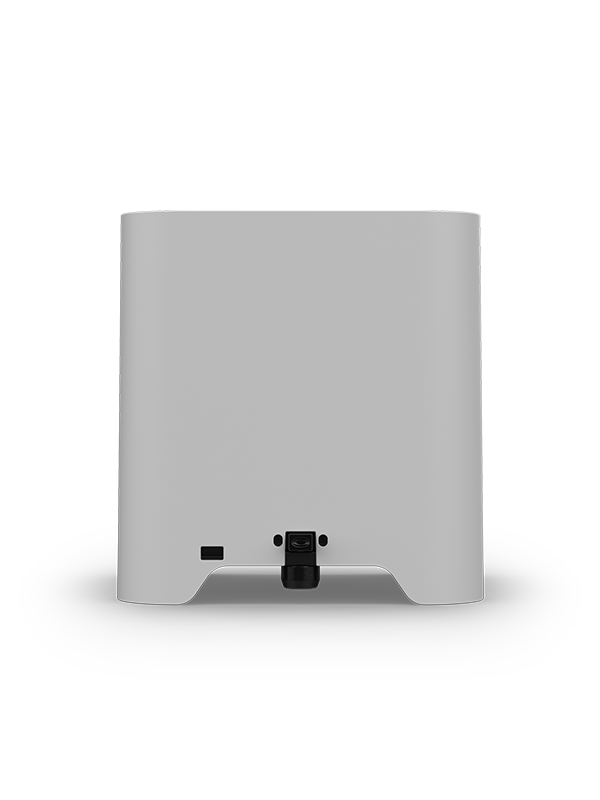

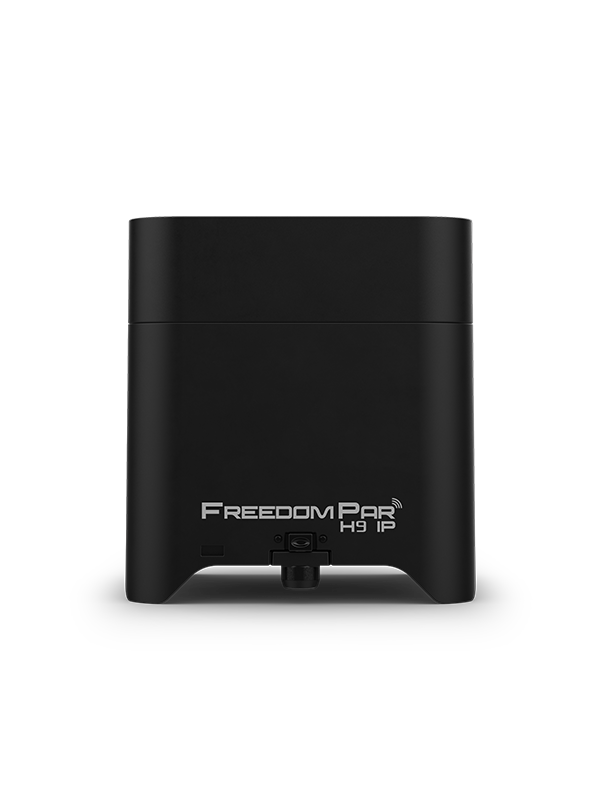

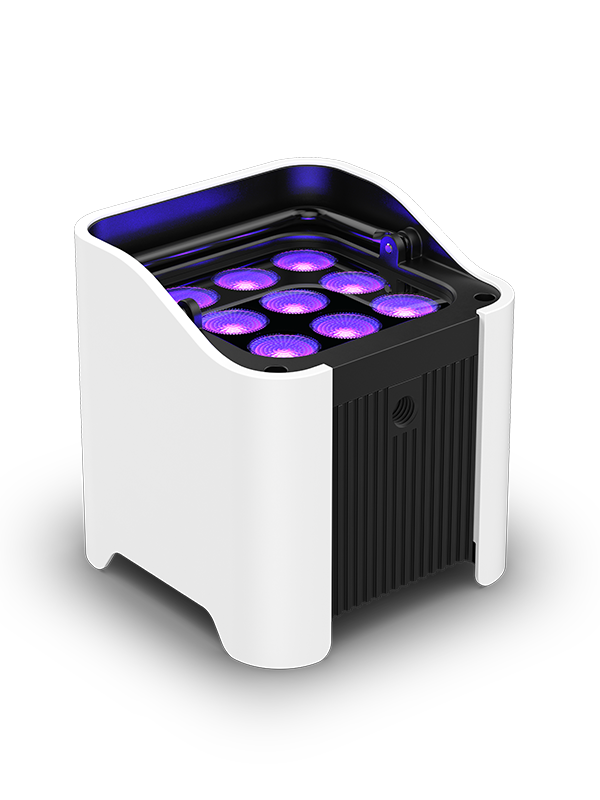

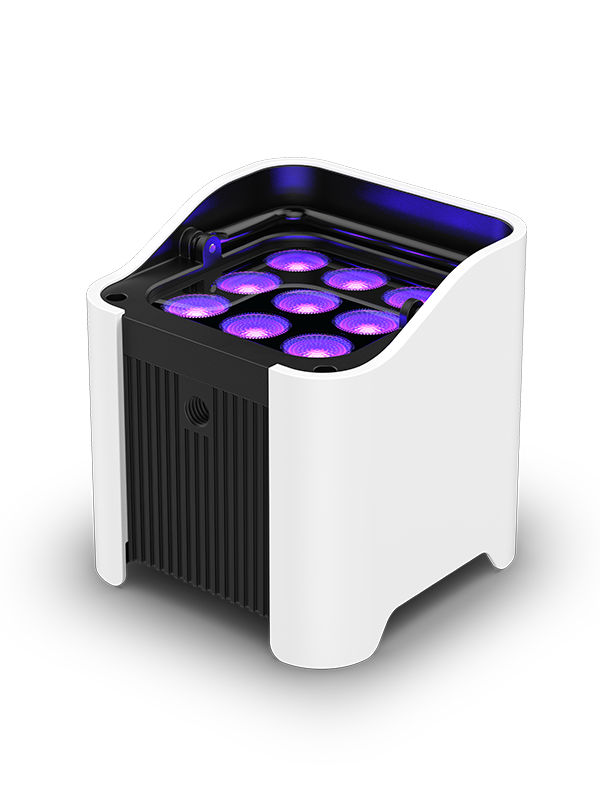

Freedom Par H9 IP

The freedom to take 100% TRUE wireless, battery-operated, hex-color lighting outdoors just got better! The hallmark built-in D-Fi transceiver for wireless DMX control isn’t the only thing inside the hex-colored (RGBAW+UV) Freedom Par H9 IP. This light also has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes. The light’s IP rating and robust housing repels mother nature for temporary outdoor situations to give you Freedom lighting power rain or shine. A more compact form factor and new secondary optics to provide perfect color blending with nearly no artifacts also propels this par. The OLED display allows for full-text to easily change the fixture’s settings and adjustable run times ensure the fixture will last the length of almost any event.

Highlights

  • 100% TRUE wireless, battery-operated, hex-color LED uplight with built-in D-Fi transceiver

  • Robust housing repels mother nature for temporary outdoor situations

  • New secondary optics provide perfect color blending with nearly no artifacts

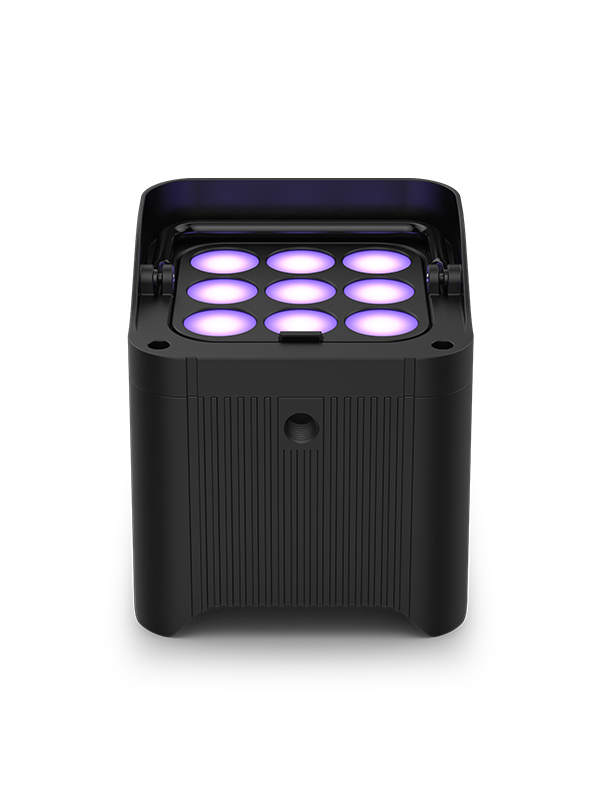

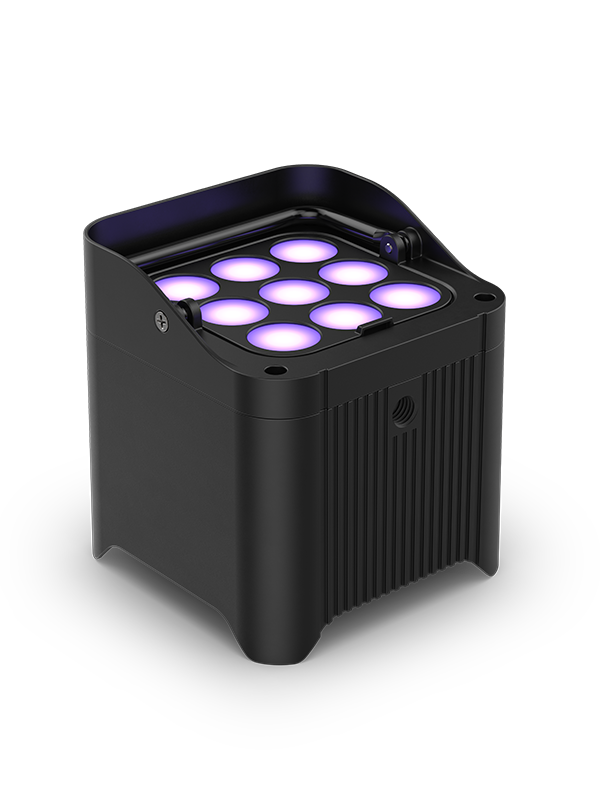

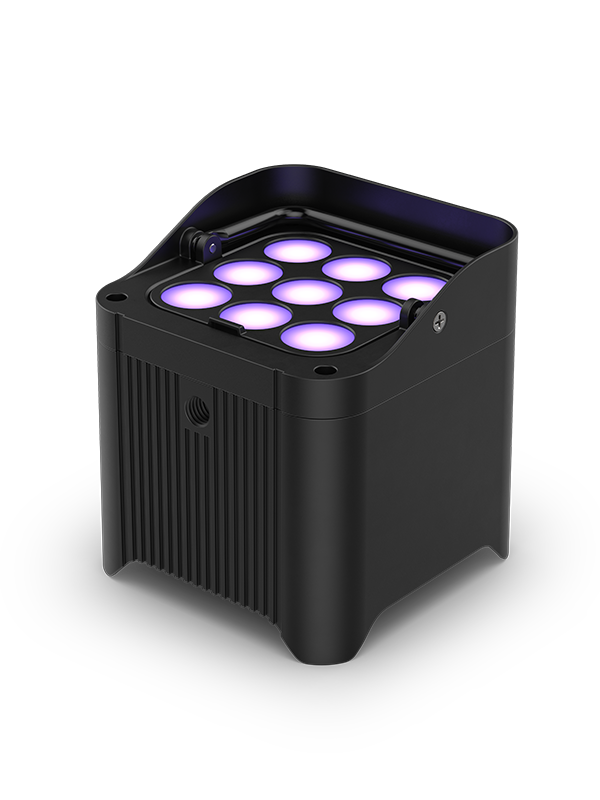

  • Magnetic diffuser pops on or off with ease and widens the coverage area

  • Adjustable run times ensure the fixture will last the length of the event

  • OLED display allows for full-text and to easily change fixture’s settings

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • Adjust the projection angle using the spring-loaded kickstand

  • Built-in glare shield protects light spillage and eye fatigue

  • Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry

  • Achieve smooth LED fading with built-in dimming curves

  • Compact and lightweight design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels:6, 8 or 16
  • Max Unobstructed Distance:600 ft (183 m)
  • Light Source:9 LEDs (hex-color RGBAW+UV, 10 W, (5.7A), 50,000 hours life expectancy
  • Strobe Rate:1 to 25 Hz
  • Beam Angle:23°
  • Field Angle:46°
  • Recharge Time:3 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance: 1249 lux @ 2 m
  • Lumens:1,258
  • IP Rating:IP54
  • Input Voltage:24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
  • Power and Current:
    50 W, 0.7 A @ 120 V, 60 Hz
    50 W, 0.4 A @ 230 V, 50 Hz
  • Weight:4.6 lbs (2.1 kg)
  • Size:4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm)
  • Approvals:CE, UKCA, RoHS, FCC
  • Beam Angle (with diffuser): 40°
  • Field Angle (with diffuser): 79°
  • Illuminance (with diffuser): 432 lux @ 2 m
  • Run Time (adjustable): 3, 5, 8, or 12 hrs
  • Startup Temperature: 4 °F to 113 °F (-20 °C to 45 °C)
  • Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
  • Bracket Mounting Hole: M12
  • Optional Controllers: RFC, RFC-XL, FlareCON

What's Included

  • Freedom Par H9 IP
  • Freedom Par H9 IP
  • External power supply
  • Magnetic diffuser
  • Quick reference guide
Save & Print

Downloads

Freedom Par H9 IP - User Manual
