Discontinued Since 2023

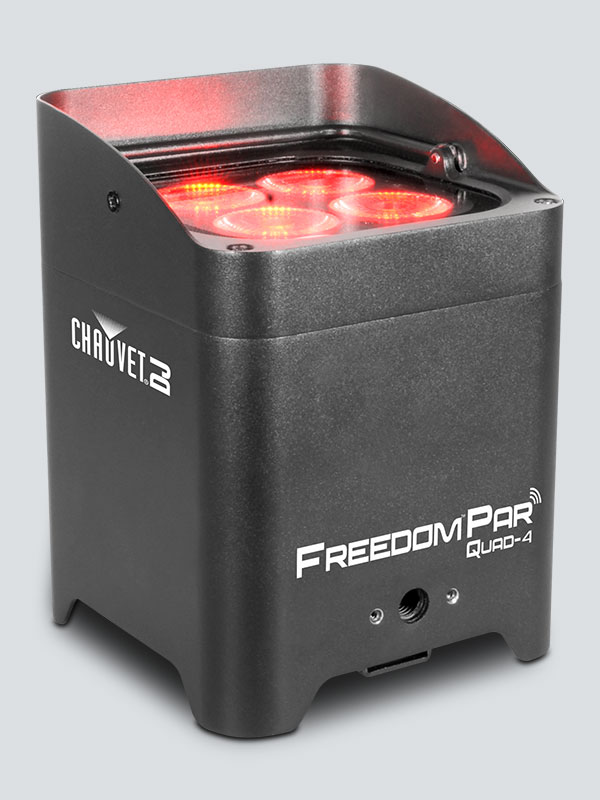

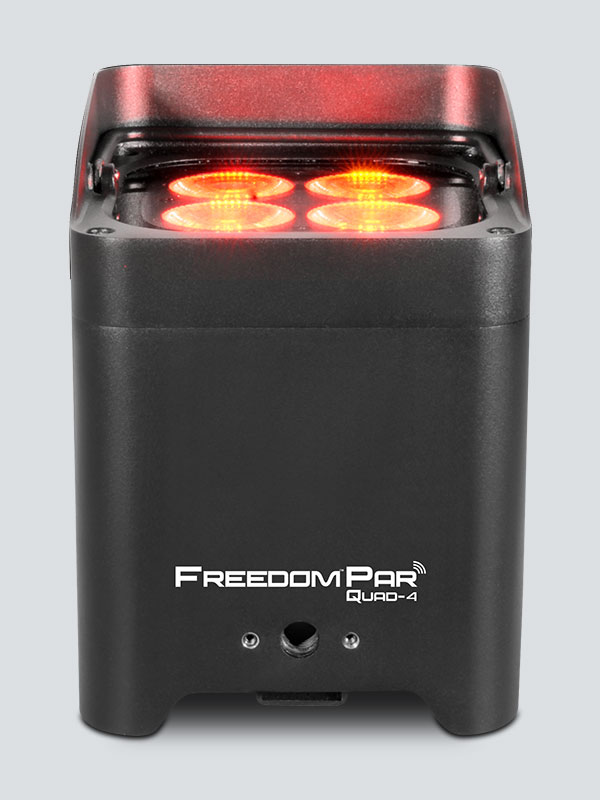

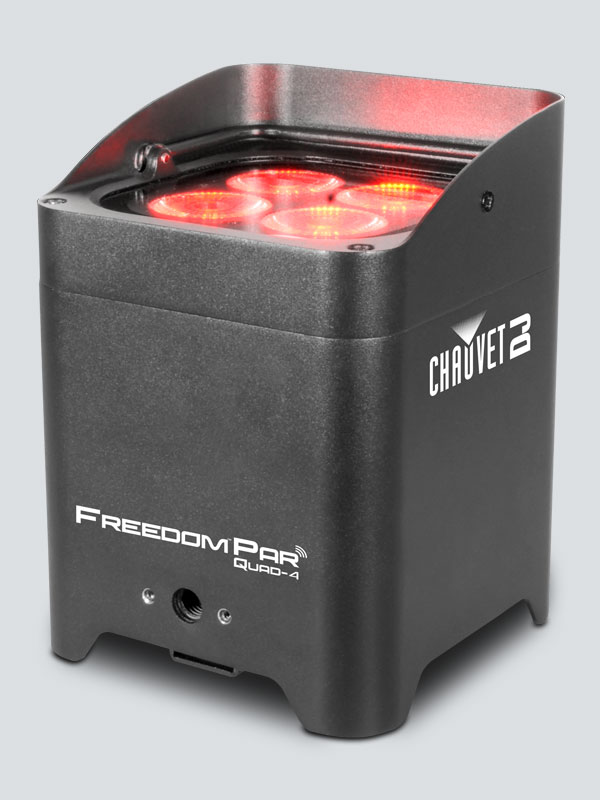

Freedom Par Quad-4

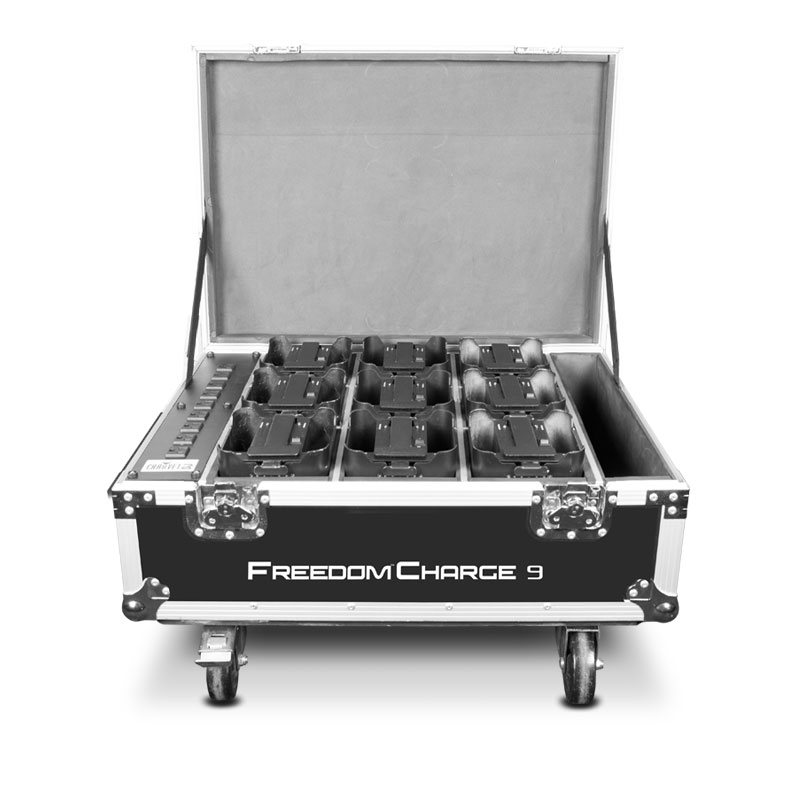

Freedom Par Quad-4 is powerful, bright and, truly 100% wireless with a rechargeable battery and a built-in D-Fi transceiver. Freedom Par Quad-4 has 20 watts of RGBA color mixing for that extra richness and variety that amber adds to colors. It can be operated with the control panel, the included IRC-6 remote, or from any mobile phone or tablet running the FlareCON mobile app. Freedom Par Quad-4 fits perfectly inside TRUSST and all other 12” box truss, and travels safely and stylishly in the CHAUVET DJ CHS-FR4 VIP Gear Bag or using the Freedom Charge 9 road case.

Highlights

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in D-Fi™ transceiver

  • Multiple wireless triggering and control options via the FlareCON™ Air and the FlareCON™ app

  • Works in Master/Slave with first-generation Freedom™ Pars

  • Shine light where it is needed using the built-in adjustable kickstand

  • Built-in glare shield prevents light spillage

  • Extend the battery’s lifespan with built-in discharge protection

  • Convenient, wireless non-DMX control using the IRC-6 remote

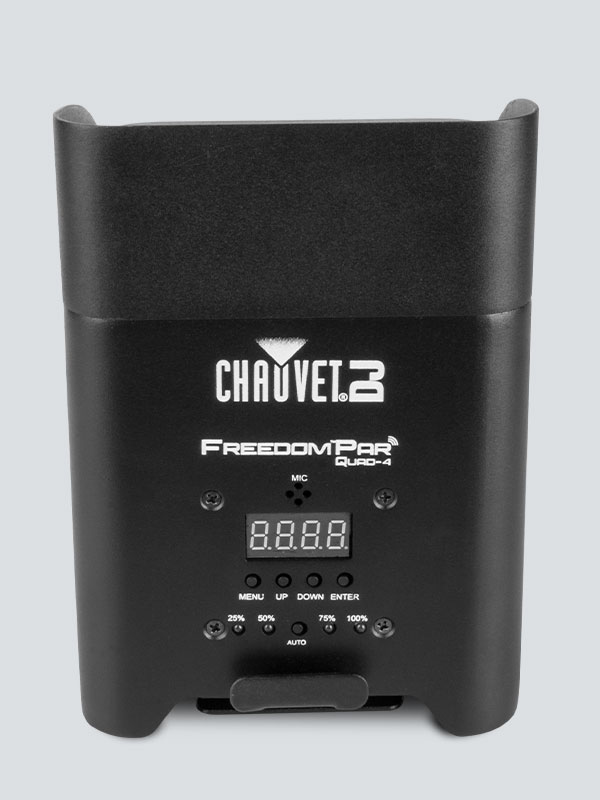

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag

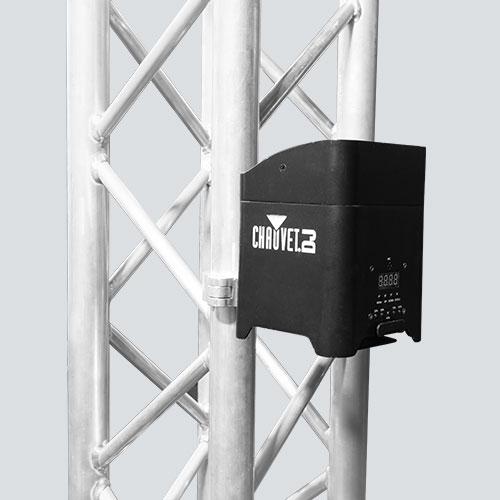

  • Compact and lightweight design easily fits inside sticks of TRUSST®

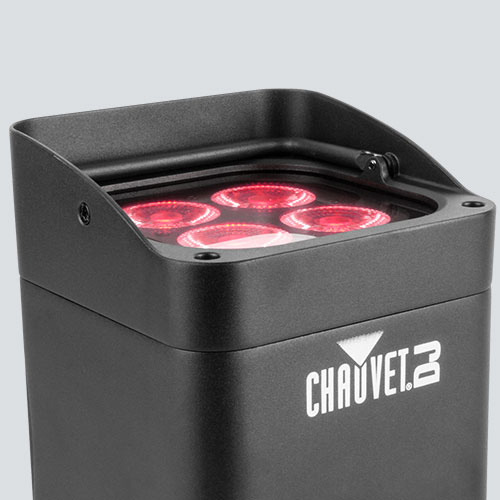

  • Built-in glare shield

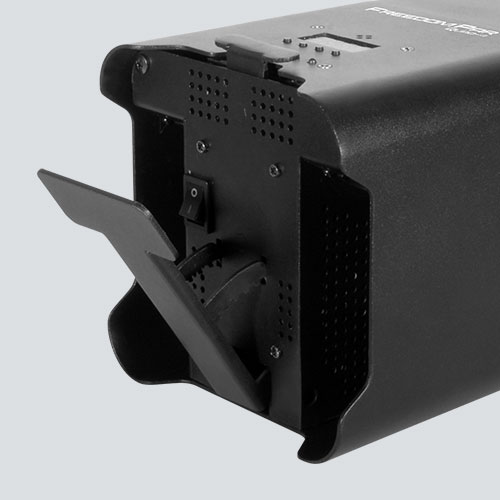

  • Built-in adjustable kickstand
  • Threaded hole for truss mounting option

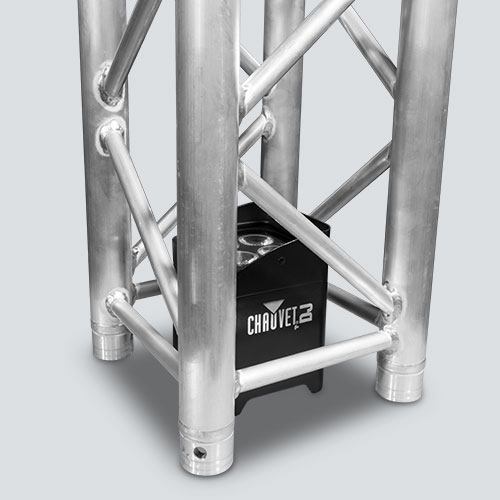

  • Fits inside sticks of TRUSST
  • Carrying handle

Specifications

  • DMX Channels:4, 6 or 10
  • DMX Connectors:3-pin XLR
  • Light Source:4 LEDs (quad-color RGBA) 5 W (2 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 17 Hz
  • PWM Frequency:1,200 Hz
  • Beam Angle:15°
  • Field Angle:29°
  • Maximum Run Time:(all on): up to 8 hours
    (single color): 20 hours
  • Recharge Time:6 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:2,300 lux @ 2 m
  • Power Linking:15 units @ 120 V; 28 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:35 W, 0.5 A @ 120 V, 60 Hz
    33 W, 0.3 A @ 230 V, 50 Hz
  • Weight:6.2 lb (2.8 kg)
  • Size:5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)
  • Approvals:CE, FCC

What's Included

  • Freedom Par Quad-4
  • IRC-6
  • Power Cord
  • Quick Reference Guide
  • Warranty Card
  • Stickers
