GigBAR IRC
Next Gen Product Available
GigBAR 2

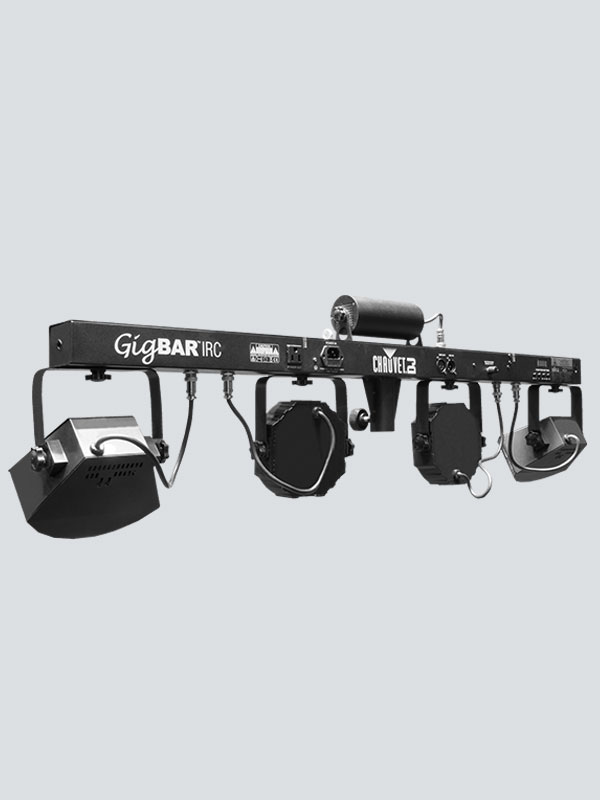

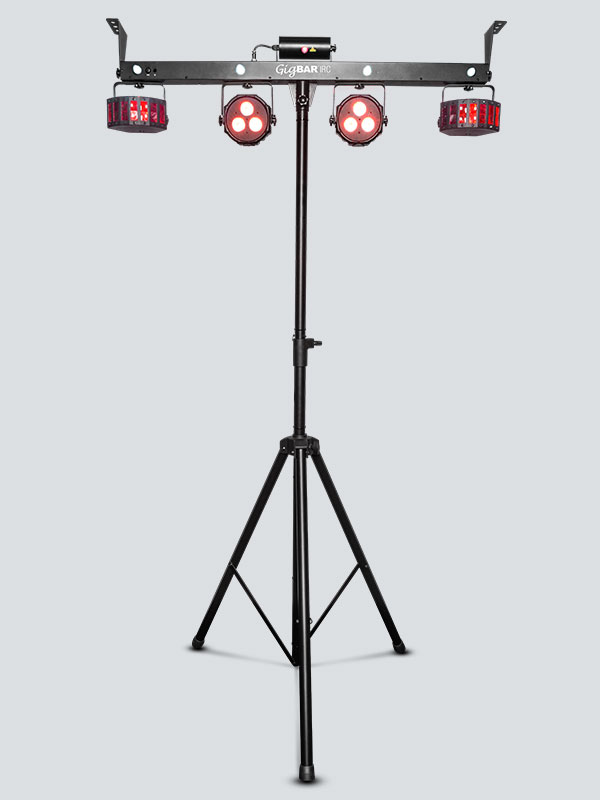

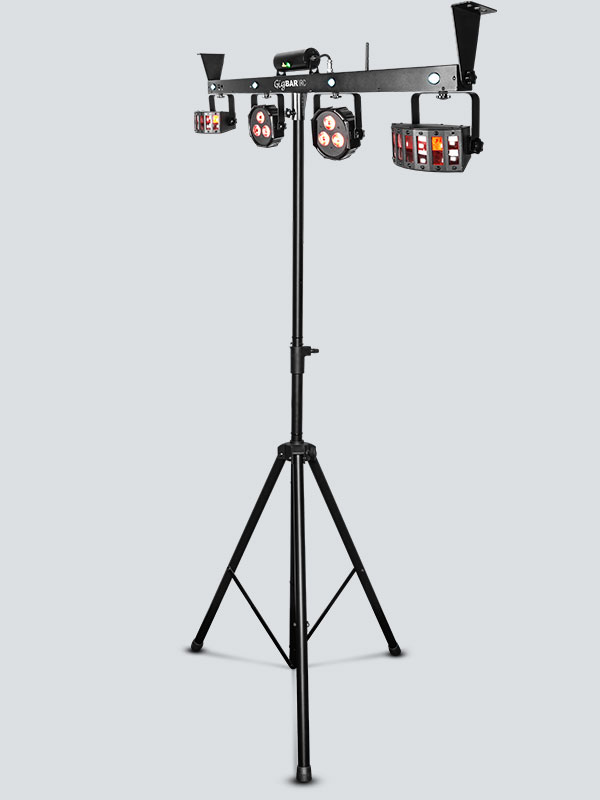

Music Inc. Editor’s Choice Award Winner, the CHAUVET DJ GigBAR IRC combines 4 essential lighting fixtures mounted onto a single control bar. The 4-in-1 GigBAR IRC maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The system includes a pair of LED Derby-style effect lights, a pair of LED pars, a laser and a strobe effect. Get in and out quickly with the included tripod, footswitch controller and FREE carry bags. The GigBAR IRC features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show. Easily control the GigBAR IRC from the display, IRC-6 remote control, wireless footswitch or DMX to take your gig to a higher level. Save time running cables and extension cords by power linking multiple units.
Images & VIDEOS
Highlights
Four great effects, nine great lights featuring a pair of LED Derby lights, a pair of LED Pars, a laser, and 4 strobes all mounted on one bar as one complete system
Cover any room or stage with individually adjustable and interchangeable heads
Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags
Ready for every application using the included mounting brackets to attach to truss
4 high-power, LED strobe lights create exciting chase and slow motion effects
Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions
Derbies project 42 red, green, and blue rotating beams from high-power LEDs
Phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show
Easily control from the display, IRC-6, wireless footswitch or DMX to take your gig to a higher level
Master/slave multiple units under the control of a single IRC-6 or wireless footswitch
Save time running cables and extension cords by power linking multiple units
Specifications
- DMX Channels:3, 9 or 20
- DMX Connectors:3-pin XLR
- Light Source:(Pars): 6 LEDs (tri-color RGB) 2.5 W (956 mA), 50,000 hours life expectancy
(strobe): 4 LEDs (white) 1 W (281 mA), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 2 W (600 mA), 50,000 hours life expectancy
650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode - Strobe Rate:0 to 18 Hz
- Beam Angle:(Pars): 13°
(strobe): 8° - Illuminance:(Pars): 1,205 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per zone) - Power Linking:16 units @ 120 V; 29 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:44 W, 1 A @ 120 V, 60 Hz
43 W, 1 A @ 230 V, 50 Hz - Weight:14.4 lb (6.6 kg)
- Size:46.7 x 4.3 x 15.2 in (1,185 x 110 x 387 mm)
- Optional Controllers: IRC-6
What's Included
- GigBAR IRC
- Power cord
- FREE Carrying bags
- Tripod
- Footswitch (wireless)
- Hanging bracket with mounting hardware
- Warranty card
