Intimidator Beam 140SR

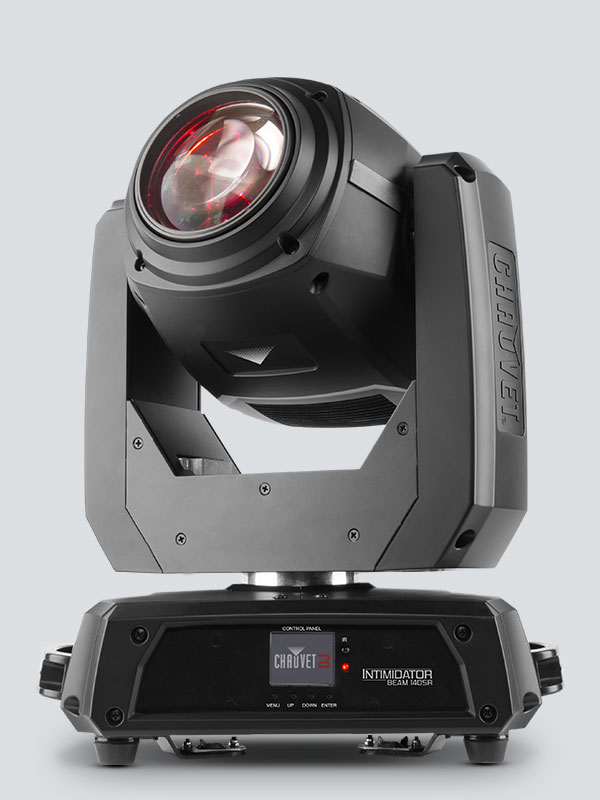

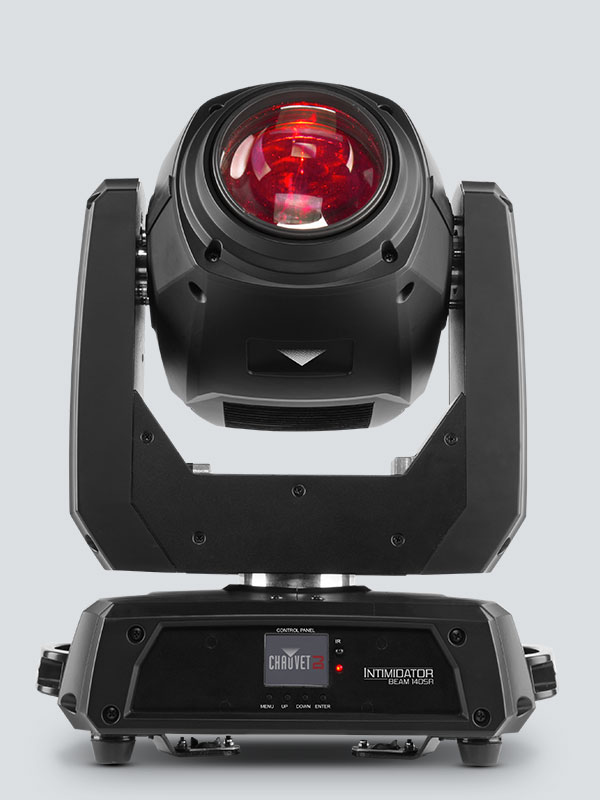

Intimidator Beam 140SR is a cutting-edge moving head beam fitted with a bright 140 W discharge light engine. Its motorized frost filter converts the tight beam to a wide wash for different applications and an impressive 16-facet prism splits the beam and intensifies the display. The built-in totem mode keeps the light on and over the dance floor. Non-DMX control is available with the optional IRC-6 wireless remote. On-board power linking saves time running extension cords. A unique ¼-turn hanging bracket allows for single or dual clamp mounting options. Fits best in the CHS-50 VIP gear bag.

*includes Mexico & Canada

Highlights

  • Cutting-edge moving head beam fitted with an intense 140 W discharge light engine

  • Impressive 16-facet prism splits the beam and intensifies the excitement

  • Motorized frost filter converts the tight beam to a wide wash for different applications

  • Built-in totem mode keeps the light on and over the dance floor

  • Unique ¼-turn hanging bracket allows for single or dual clamp mounting options

  • Non-DMX control with the optional IRC-6 wireless remote

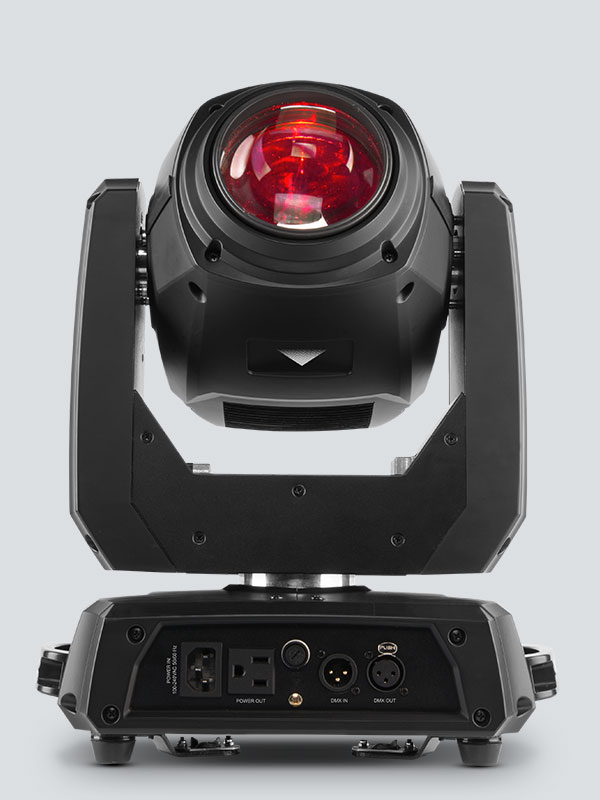

  • On-board power linking saves time running extension cords

  • Motorized Focus

  • Fits best in the CHS-50 VIP gear bag

Specifications

  • DMX Channels:8 or 14
  • DMX Connectors:3-pin XLR
  • Pan and Tilt:540°/270°
  • Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors:14 + white, split colors, continuous scroll at variable speeds
  • Gobos:17 + open (all aluminum), fixed, continuous scroll at variable speeds
  • Light Source:(included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
    (optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:(beam): 3°
    (frost): 21°
  • Illuminance:(5 m): 381,500 lux
    (15 m): 37,900 lux
  • Lumens:934
  • Power Linking:3 units @ 120 V; 6 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:228 W, 2 A @ 120 V, 60 Hz
    224 W, 1.2 A @ 230 V, 50 Hz
  • Weight:25.8 lb (11.7 kg)
  • Size:12.7 x 8.6 x 16.5 in (322 x 220 x 420 mm)
  • Approvals:CE, MET
  • Optional Controllers: IRC-6
  • Prism: 16-facet round, bidirectional rotation at variable speeds

What's Included

  • Intimidator Beam 140SR
  • Power cord
  • Hanging bracket
  • Warranty card
  • Quick Reference Guide
