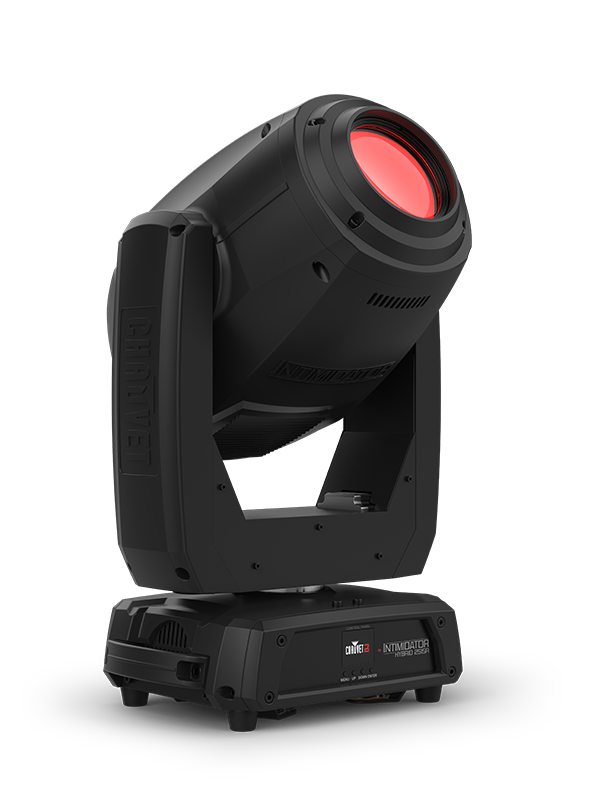

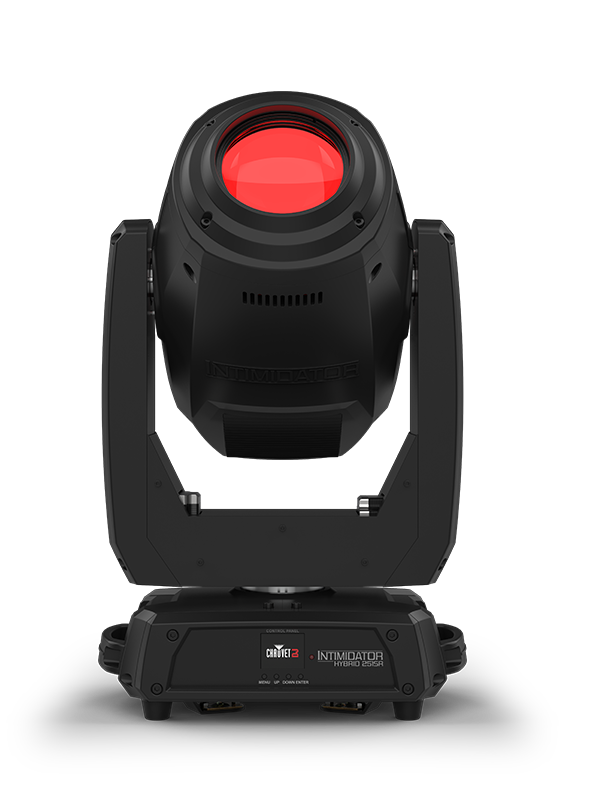

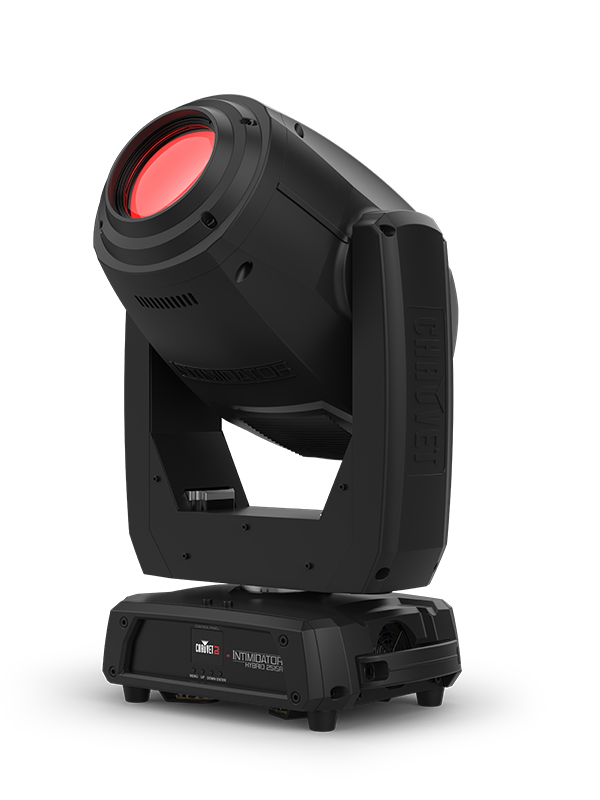

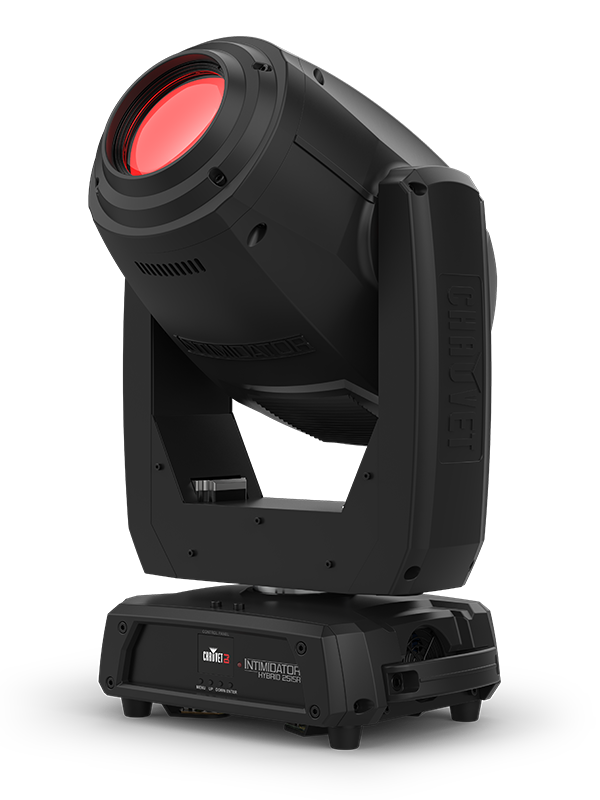

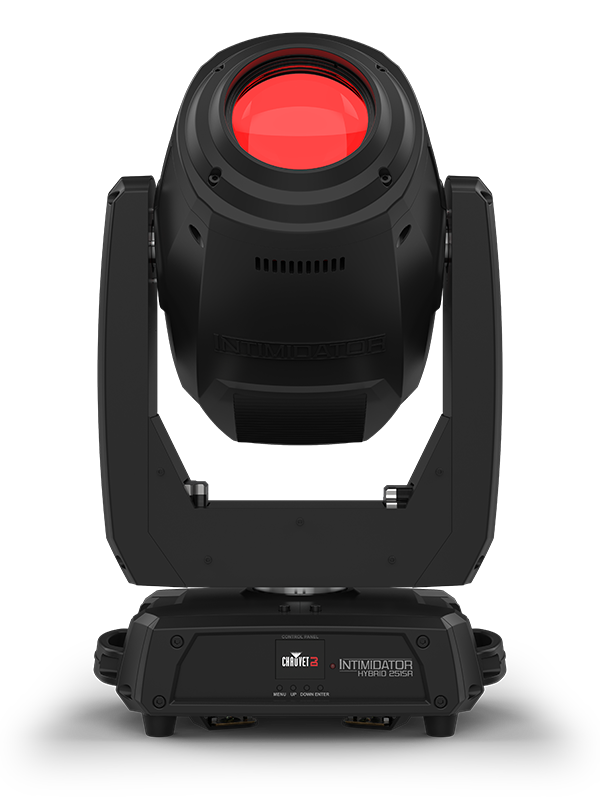

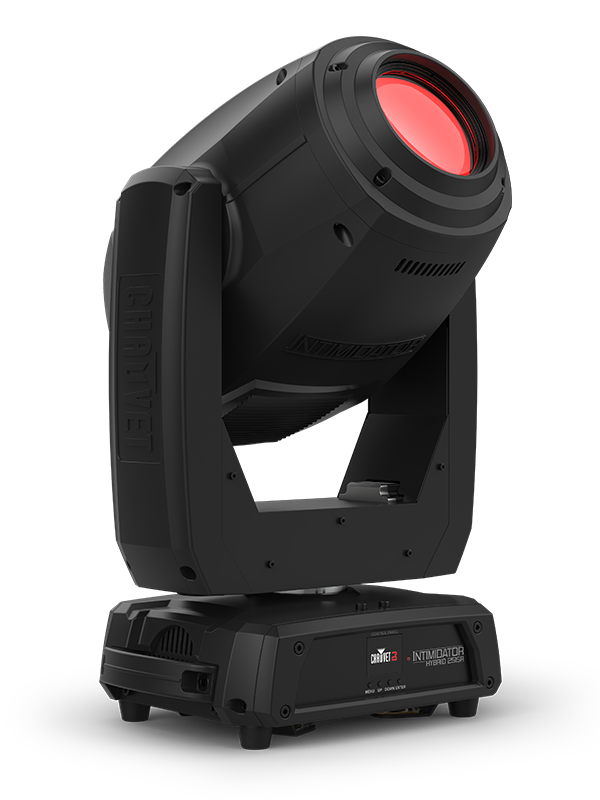

Intimidator Hybrid 251SR

Enjoy a moving head that can meet all your needs with a true all-in-one light fixture. Intimidator Hybrid 251SR seamlessly morphs from spot to beam to wash. It has 12 + open and split colors with continuous scroll at variable speeds. Harness all the power that moving heads have to offer with Intimidator Hybrid 251SR.

Highlights

  • True hybrid moving head fitted with an intense 251 W discharge light engine



  • All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly

  • Dual, overlapping prisms with independent control multiply the beam dynamics

  • Dual gobo wheels allow for gobo morphing and amazing mid-air projections

  • Motorized zoom works in beam, spot and wash modes for ultimate light control

  • Unique ¼-turn hanging bracket allows for single or dual clamp mounting options

  • Emit crisp projections at almost any distance using the motorized focus

  • Glass optics ensure crisp beams and gobos at all times

  • Full-color display with RF compatibility, totem mode and onboard memory for storing a scene

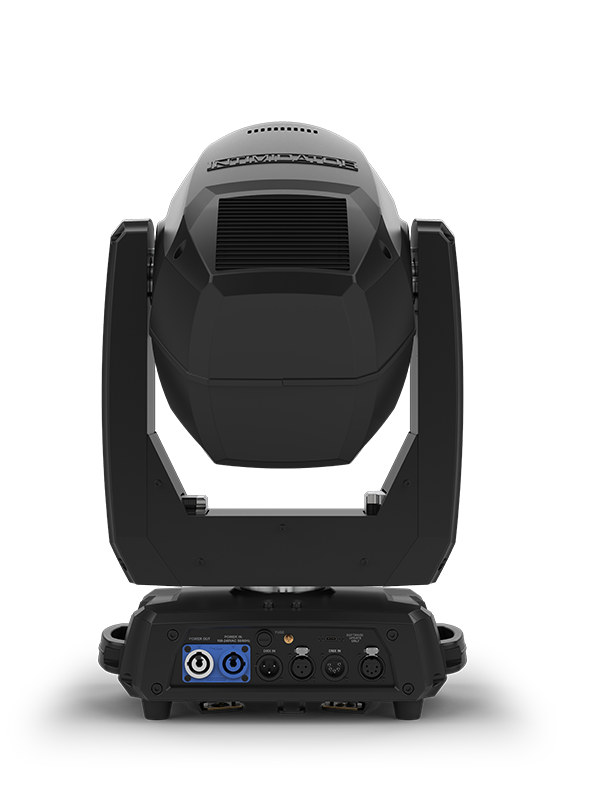

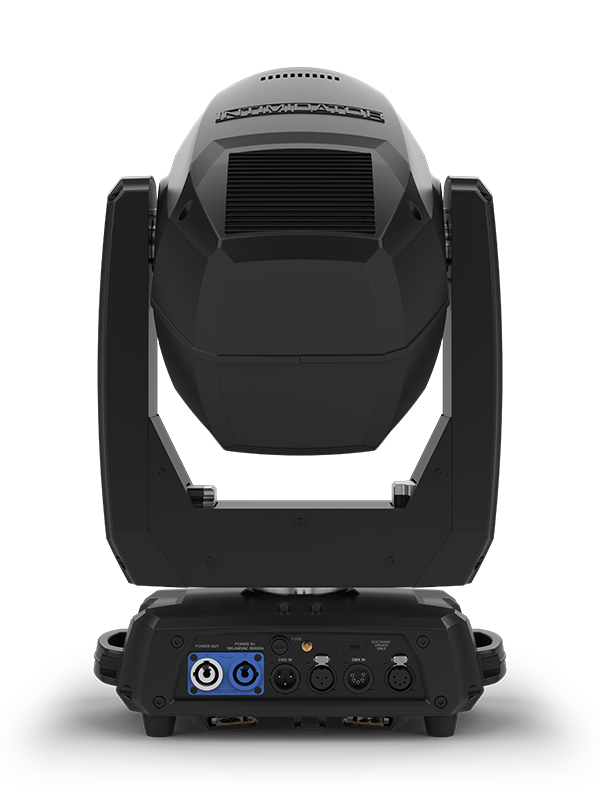

  • powerCON®-compatible power input/output connections for power linking

Specifications

  • DMX Channels:13 or 19
  • DMX Connectors:3- and 5-pin XLR
  • Pan and Tilt:540°/270°
  • Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt.
  • Colors:12 + open, split colors, continuous scroll at variable speeds Gobo wheel (1): 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
  • Gobos:9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
  • Light Source:Osram SIRIUS HRI® 251W discharge lamp (3,000 hrs)
  • Strobe Rate:0 to 20 Hz
  • Power Linking:3 units @ 120 V; 5 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Gobo Size:13.7 mm outside, 10 mm image, 0.8 mm max thickness
  • Weight:35.6 lb (16.1 kg)
  • Size:12.6 x 8.6 x 21.6 in (322 x 220 x 549 mm)
  • Approvals:CE, MET, ROHS
  • Prism (1): 5-facet round, bidirectional rotation at variable speeds
  • Prism (2): 6-facet linear, bidirectional rotation at variable speeds
  • Zoom Angle (beam): 1° to 3°
  • Zoom Angle (spot): 12° to 23°
  • Zoom Angle (wash): 7° to 19°
  • Illuminance (1° beam): 500,411 lux @ 5 m
  • Illuminance (12° spot): 376,927 lux @ 5 m
  • Illuminance (7° wash): 8,038 lux @ 5 m
  • Power and Current: 358 W, 3.6 A @ 120 V, 60 Hz
  • Power and Current: 344 W, 2.3 A @ 230 V, 50 Hz
  • Optional Controllers: RFC-XL

What's Included

  • Intimidator Hybrid 251SR
  • Intimidator Hybrid 251SR
  • Power cord
  • Hanging bracket
  • Quick Reference Guide
