Discontinued Since 2016

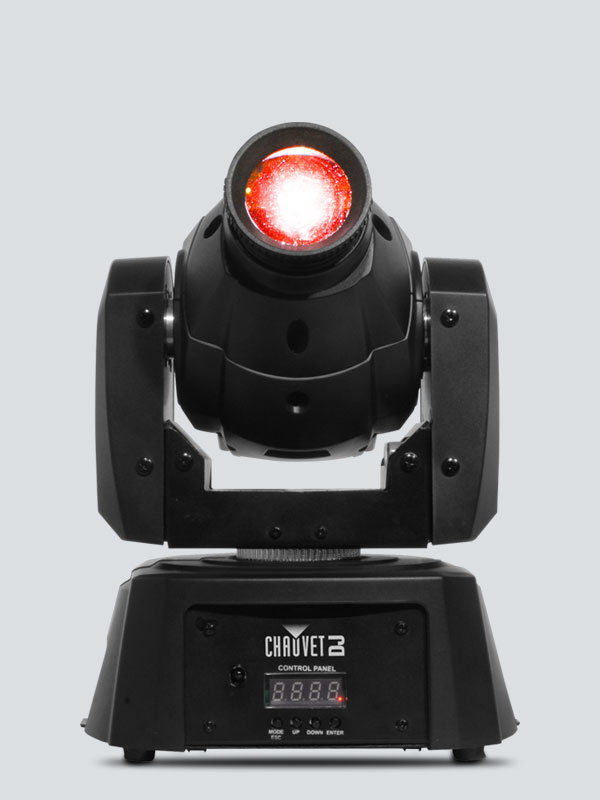

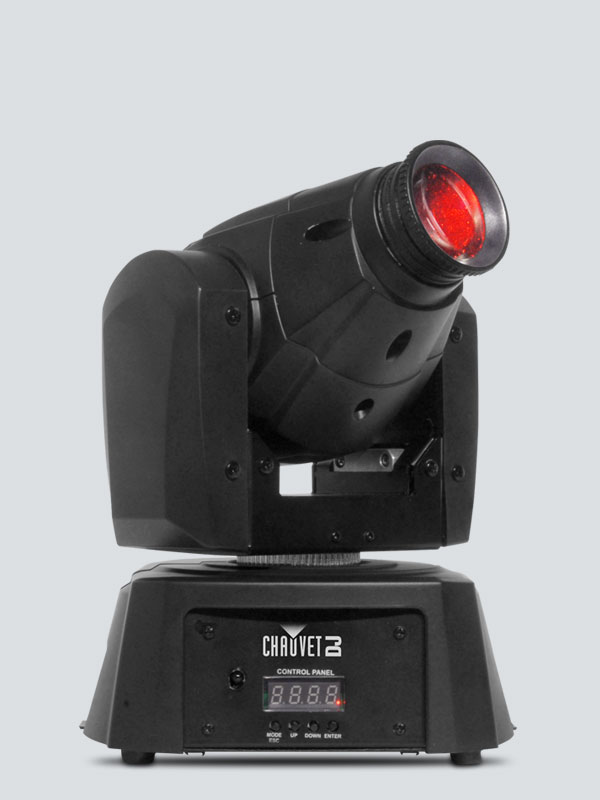

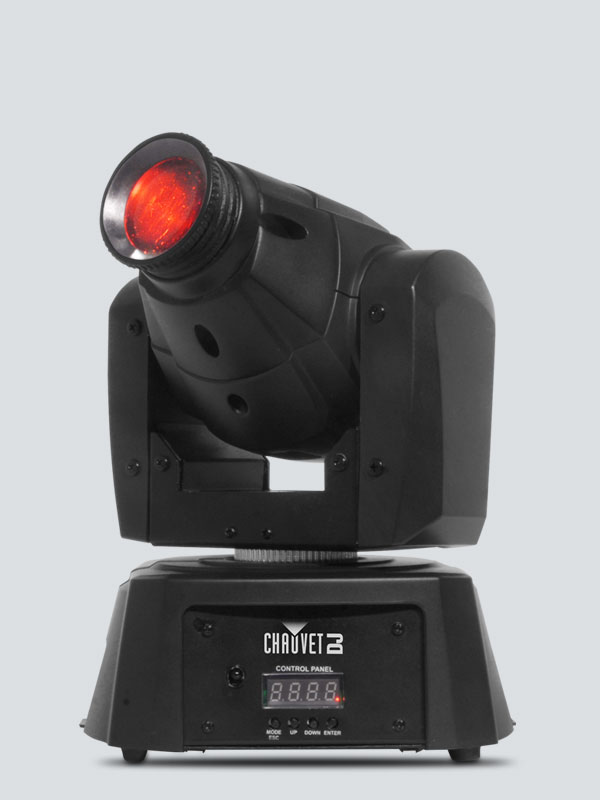

Intimidator Spot 100 IRC

Next Gen Product Available

Intimidator Spot 110

Perfect for mobile applications, Intimidator Spot 100 IRC is a lightweight, remote controllable LED moving head. It is compatible with the optional IRC remote for wireless, non-DMX operation and control. Separate color and gobo wheels maximize lighting options, while built-in, rapid-movement macros minimize programming time. Generate a synchronized show in master/slave mode using built in, easy-to-access automated programs or DMX control and enhance any light show with super smooth dimming and adjustable strobe speed. Intimidator Spot 100 IRC fits best in the optional CHS-40 VIP Gear Bag for secure and convenient transportation.

Highlights

  • Extremely compact and lightweight LED moving head perfect for mobile applications

  • Works with the IRC for wireless control and triggering

  • Minimize programming time with built-in rapid movement macros

  • Maximize lighting options with separate color and gobo wheels

  • Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs or DMX control

  • Wireless, non-DMX operation is available with the optional IRC remote

  • Enhance any light show with super smooth dimming and adjustable strobe speed

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:6 or 11

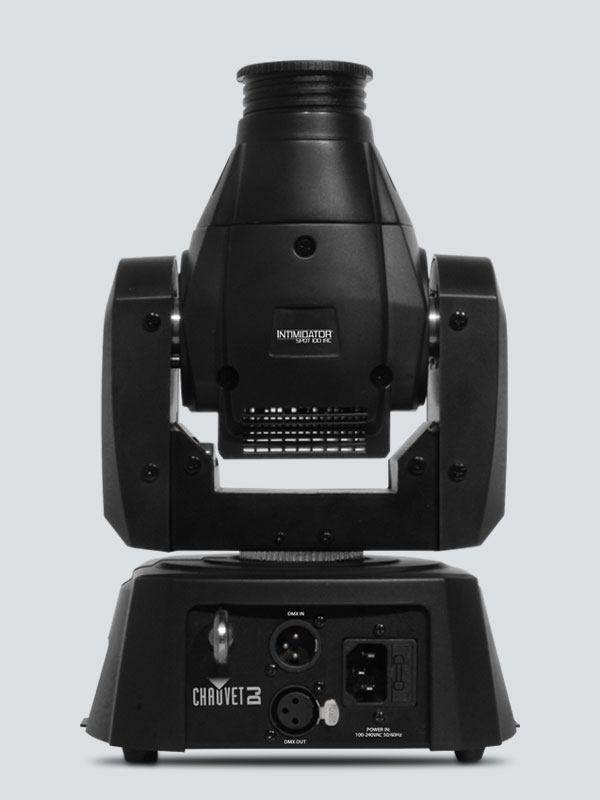

  • DMX Connectors:3-pin XLR
  • Pan and Tilt:540°/270°
  • Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors:7 + white, continuous scroll at variable speeds
  • Gobos:7 + open, continuous scroll at variable speeds
  • Light Source:1 LED (white) 10 W (3 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • PWM Frequency:7.8 kHz
  • Beam Angle:13°
  • Illuminance:3,280 lux @ 2 m
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:48 W, 0.4 A @ 120 V, 60 Hz
    51 W, 0.2 A @ 230 V, 50 Hz
  • Weight:6.6 lb (3 kg)
  • Dimensions:7.8 x 5.8 x 11.6 in (198 x 148 x 295 mm)
  • Approvals:CE
  • Series:Intimidator
  • Primary Use:DJ/Mobile, Bands/Stages, Events, Party

What's Included

  • Intimidator Spot 100 IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Quick Reference Guide
  • Warranty card
Save & Print

Downloads

User Manual
Quick Reference Guide
ShowXpress Profile
