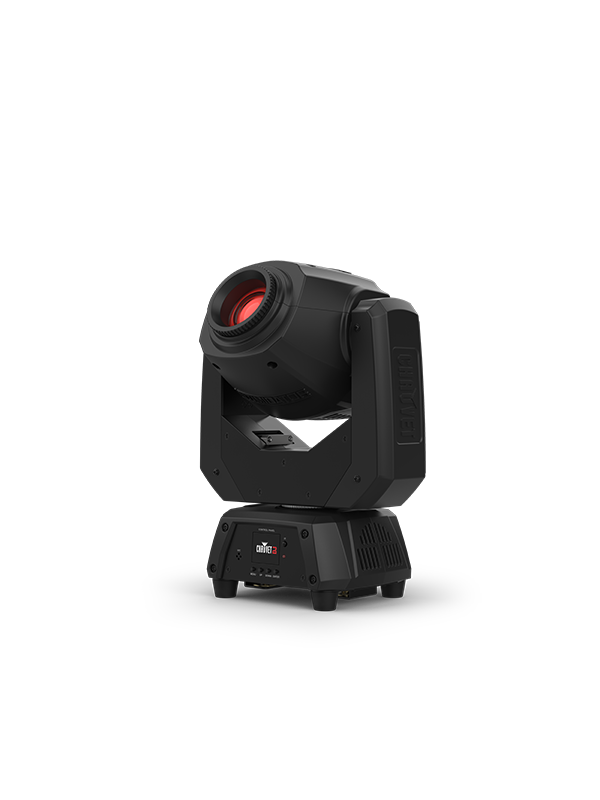

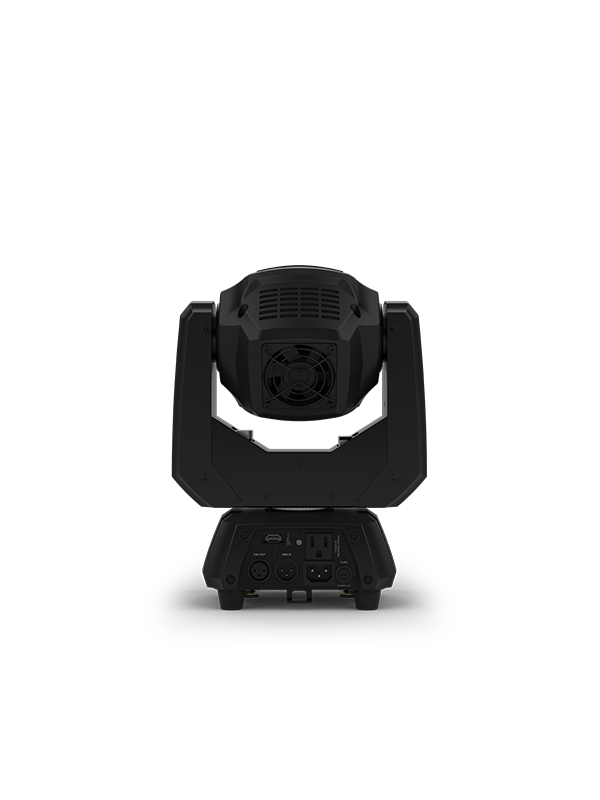

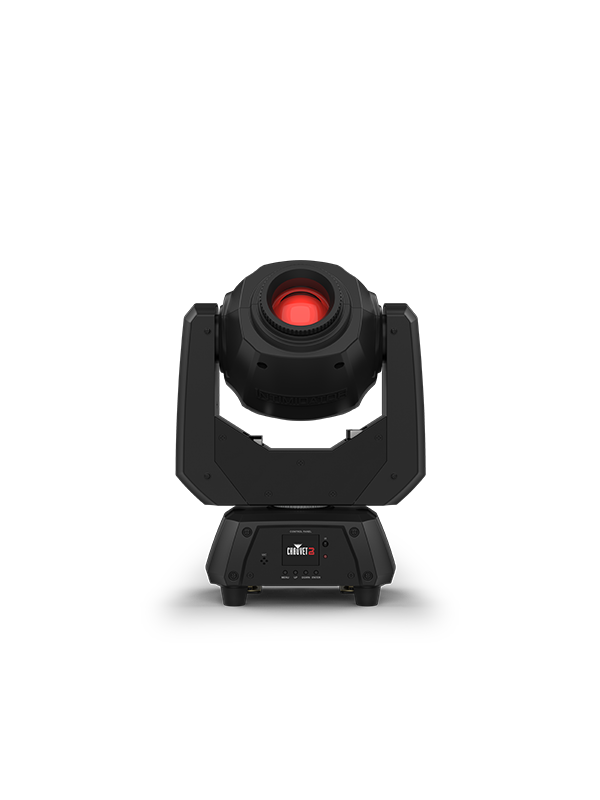

Intimidator Spot 60 ILS
Intimidator Spot 60 ILS is a compact, punchy 70-watt moving head for on the go. This fixture is small, but mighty and is ideal for mobile entertainers. The Intimidator Spot 60 ILS is compatible with our ILS* ecosystem of products which means it’s easy to setup and sync to a wide range of fixture types and is D-Fi compatible for wireless control. The ideal counterpart to the Intimidator Free Spot 60 ILS, this fixture has the same impressive feature set including rotating gobos, a 3-facet prism, manual zoom, and automatic focus. As well as features like the new home position, the innovative Totem mode that keeps beams on the dance floor, and a ¼ turn hanging bracket that gets you in and out of your gigs in no time. Enjoy cutting edge ILS technology with the benefits of a compact fixture with the Intimidator Spot 60 ILS.
*Patent Pending
Highlights
Feature-packed moving head designed for mobile performances
ILS compatibility for use in the ILS ecosystem
D-Fi USB® compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
New home position allows for smoother programming
¼-turn hanging bracket allows for quick removal when needed
Project crisp gobos from nearly any distance with the motorized focus
Manual zoom for short or long throw applications
3-facet prism splits the beam and covers a larger area
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full-color LCD display
Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
Specifications
- DMX Channels:8, 10 or 14
- DMX Connectors:3-pin XLR
- Pan and Tilt:540°/240°
- Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 240° tilt.
- Colors:8 + open, split colors, continuous scroll at variable speeds
- Gobos:7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
- Light Source:1 LED (cool white) 70 W, (3.3 A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Zoom Angle:(manual) 15° to 17°
- Illuminance:
(15°) : 10,012 lux @ 2 m
(17°) : 7,792 lux @ 2 m - Power Linking:5 units @ 120 V; 9 units @ 230 V
- Input Voltage:
100 to 240 VAC
50/60 Hz (auto-ranging) - Power and Current:
107 W, 1.5 A @ 120 V, 60 Hz
105 W, 1 A @ 230 V, 50 Hz - Gobo Size:24 mm outside, 20 mm image, 1.1 mm max thickness
- Weight:11.2 lb (5.1 kg)
- Size:9.9 x 7.8 x 13.8 in (251 x 199 x 351mm)
- Approvals:CE, RoHS, UKCA
- Prism: 3-facet round static
- Optional Controllers: IRC-6
- Color Temperature: 15,000 K
- Bracket Mounting Hole: 13 mm
What's Included
- Intimidator Spot 60 ILS
- Intimidator Spot 60 ILS
- Power cord
- Omega bracket
- Quick Reference Guide
