Discontinued Since 2016

Intimidator Spot Duo

Next Gen Product Available

Intimidator Spot 110

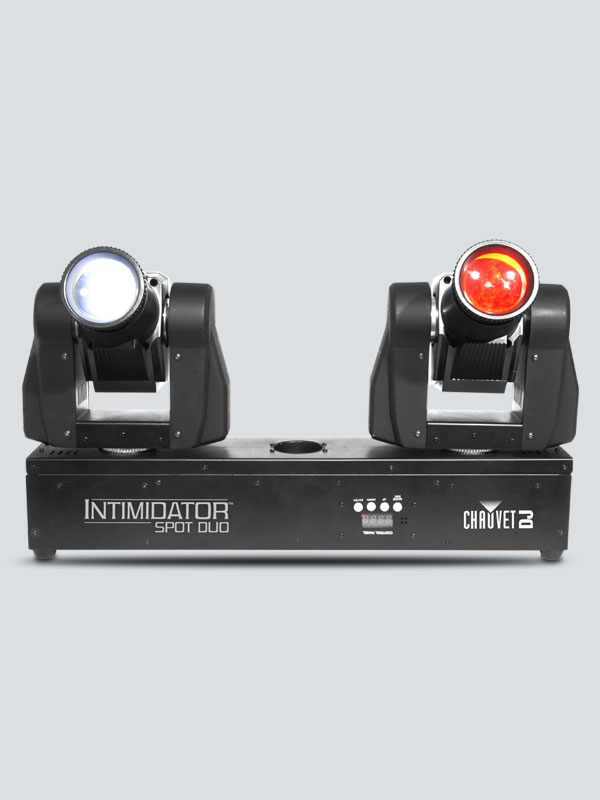

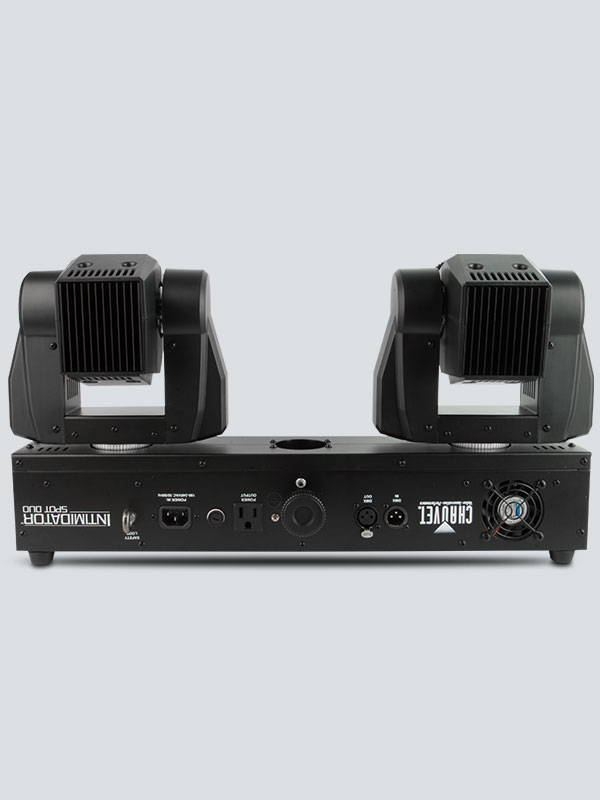

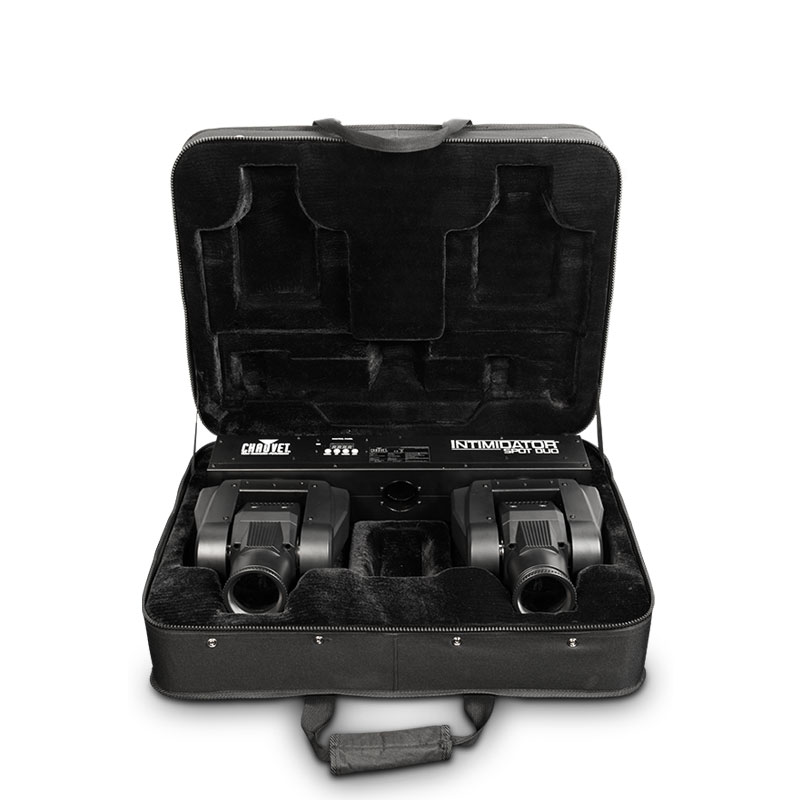

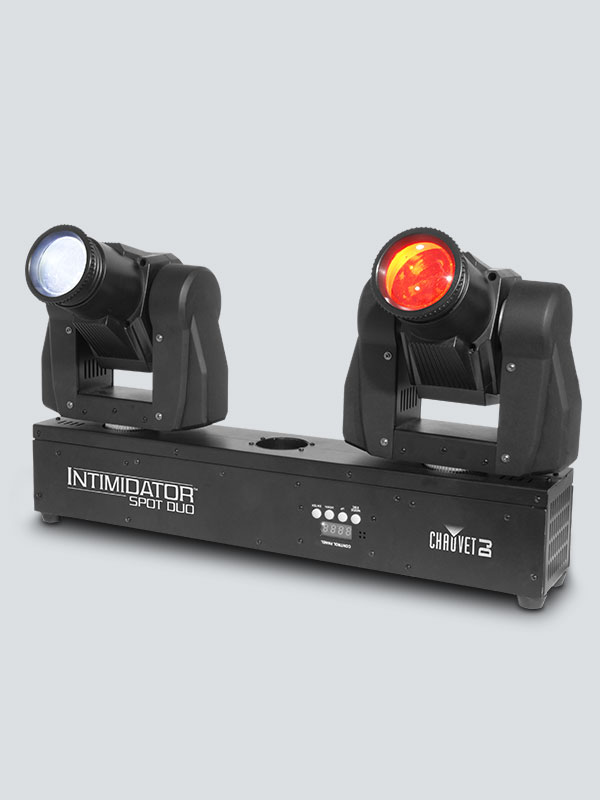

Intimidator Spot Duo features two fully and independently controllable moving heads mounted on an easy-to-rig bar. Slide it onto a tripod, clamp it to truss or set it on the floor. This high performance duo is linkable with one other unit to create eye-catching synchronized shows. Independent color and gobo wheels create numerous projections and mid-air effects, while DMX control allows for independent control of each head. Fits best in the CHS-DUO gear bag.

Highlights

  • Two powerful Intimidator™ moving heads pre-mounted on a single bar

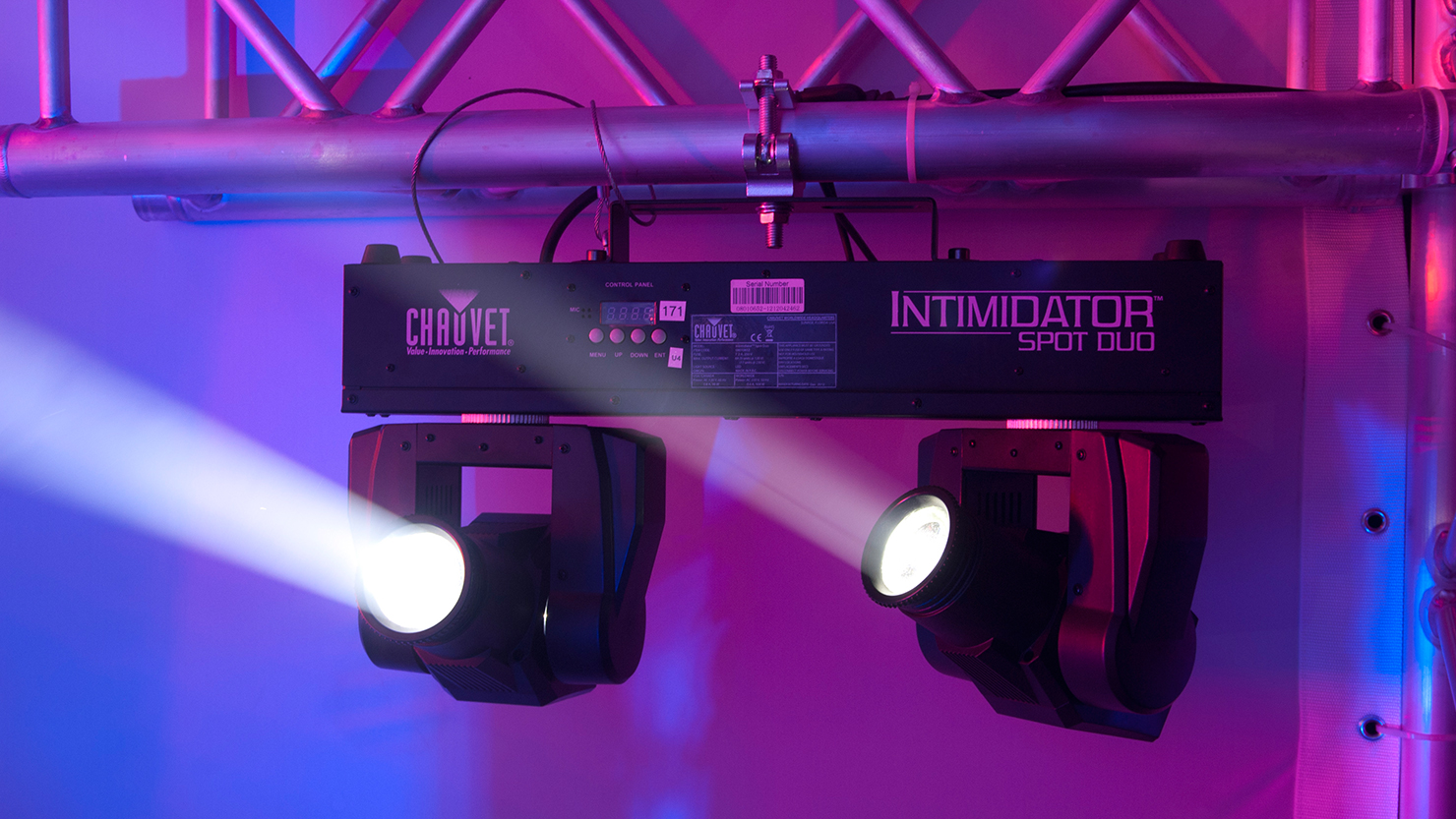

  • Safely mounts to truss or tripod, or simply set on the floor

  • Omit the need for additional clamps with the built-in mount suited for most tripods or speaker stands

  • Add the look of a programmed show using 16 built-in master/slave programs

  • Maximize lighting options with separate color and gobo wheels, as well as pan and tilt functions, found in each moving head

  • Reduce programming time with master/slave programs which include an offset feature

  • Save time running cables and extension cords by power linking multiple units

  • Multiple control options include automated and sound-active programs, as well as master/slave or DMX mode

Specifications

  • DMX Channels:10, 17 or 20
  • DMX Connectors:3-pin XLR
  • Pan and Tilt:360°/270° (per head)
  • Pan and Tilt Ranges:180°, 360° pan/90°, 180°, 270° tilt
  • Colors:7 + white, split colors, continuous scroll at variable speeds (per head)
  • Gobos:9 + open, continuous scroll at variable speeds (per head)
  • Light Source:1 LED (white) 10 W (2.8 A), 50,000 hours life expectancy (per head)
  • Strobe Rate:0 to 17 Hz
  • Beam Angle:6° (per head)
  • Fits Tripod Size:1.4 to 2 in (36 to 50 mm)
  • Illuminance:10,900 lux @ 2 m (per head)
  • Power Linking:9 units @ 120 V; 17 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:98 W, 0.8 A @ 120 V, 60 Hz
    104 W, 0.4 A @ 230 V, 50 Hz
  • Weight:18.4 lb (8.4 kg)
  • Dimensions:21 x 7.4 x 14.4 in (540 x 187 x 365 mm)
  • Approvals:CE

What's Included

  • Intimidator Spot Duo
  • Power cord
  • Quick Reference Guide
  • Warranty card
