Discontinued Since 2016

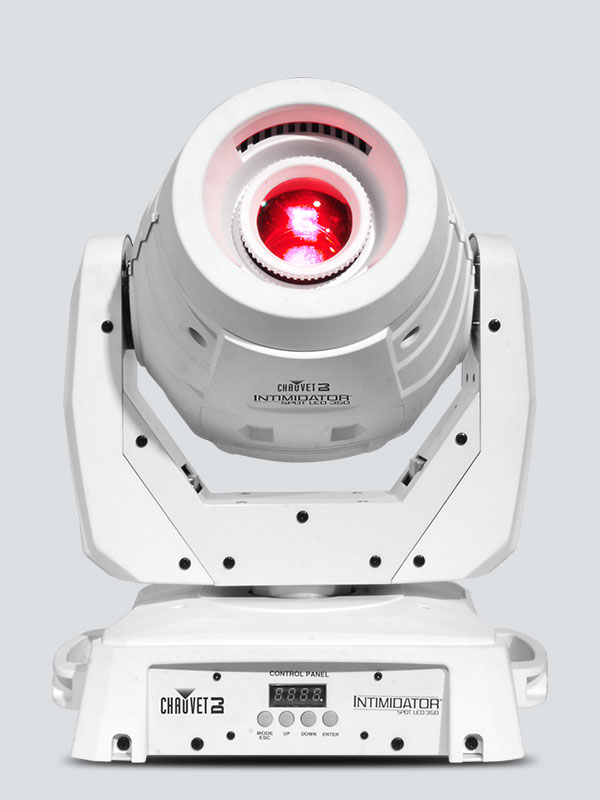

Intimidator Spot LED 350

Next Gen Product Available

Intimidator Spot 375ZX

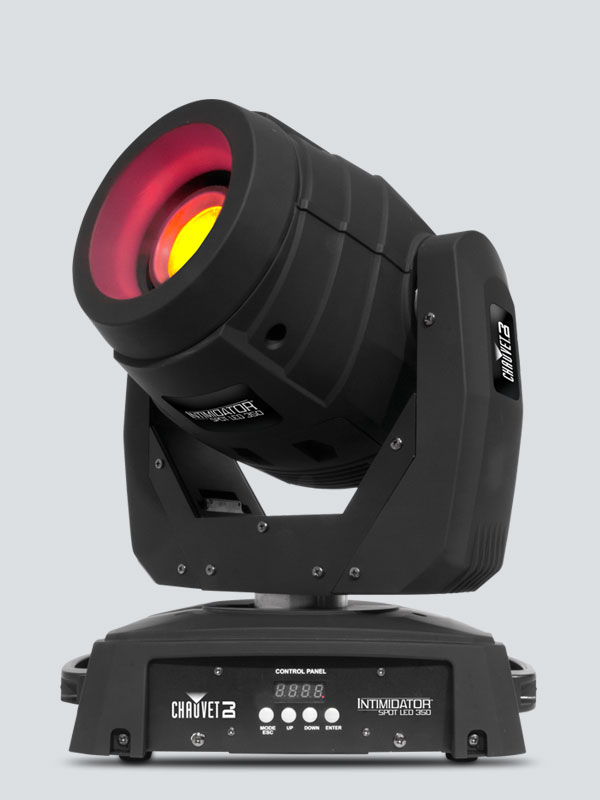

Intimidator Spot LED 350 is one of the most powerful fixtures in the acclaimed Intimidator line. A 75-watt LED and superior optics make this fixture considerably brighter than most higher watt LED fixtures currently on the market. This feature-packed moving head includes a motorized focus for projecting crisp, rotating gobos from most distances. A rotating 3-facet prism splits the beam for maximum effects and coverage, while interchangeable gobos let you vary and customize the show.

Highlights

  • Feature-packed, moving head spot fitted with a 75 W LED

  • Project crisp gobos from nearly any distance with the motorized focus

  • Split the beam and cover a larger area using the 3-facet rotating prism

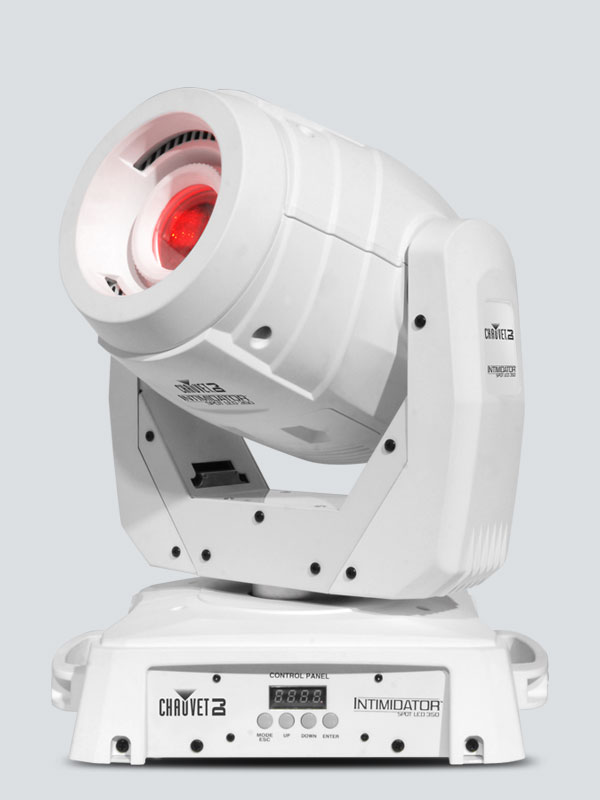

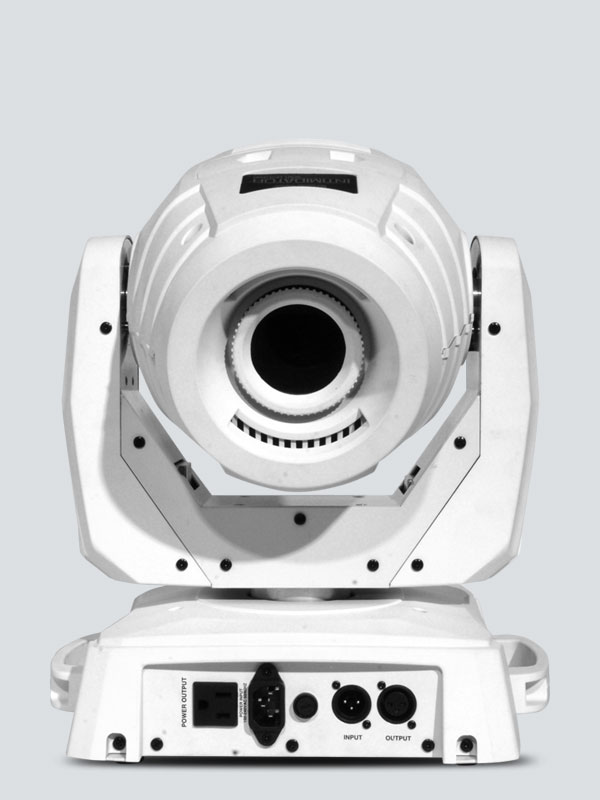

  • Suitable for every event with either black or white housings

  • Quickly and easily change gobos using the easy-access gobo door

  • Achieve super-smooth LED fading with the built-in, electronic dimmer

  • Throw light farther by decreasing the beam angle by 5° using the manual zoom

  • Project light where you want it with user-selectable pan and tilt ranges

  • Minimize programming time with built-in effect macros and move-in-black feature

  • Save time running cables and extension cords by power linking multiple units

  • Continuous shows with individual reset of pan/tilt, color, gobo, prism and focus

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

  • Fits best in the CHS-50 VIP Gear Bag

Specifications

  • DMX Channels:8 or 14
  • DMX Connectors:3-pin XLR
  • Pan and Tilt:540°/270°
  • Pan and Tilt Ranges:540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors:8 + white, split colors, continuous scroll at variable speeds
  • Gobos:7 + open, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Light Source:1 LED (white) 75 W (17 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Zoom Angle:(manual): 12° to 17°
  • Illuminance:(12°): 9,490 lux @ 2 m
    (17°): 4,670 lux @ 2 m
  • Power Linking:3 units @ 120 V; 7 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:272 W, 2.2 A @ 120 V, 60 Hz
    285 W, 1.2 A @ 230 V, 50 Hz
  • Gobo Size:24 mm outside, 20 mm image, 1.1 mm max thickness
  • Weight:22.7 lb (10.3 kg)
  • Size:10.6 x 13.4 x 15.4 in (268 x 340 x 392 mm)
  • Approvals:CE

What's Included

  • Intimidator Spot LED 350
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
