Discontinued Since 2017

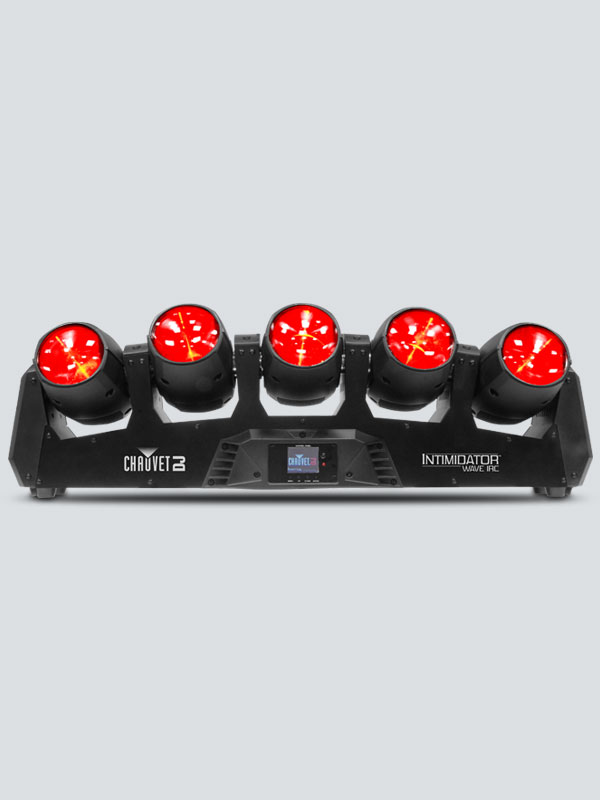

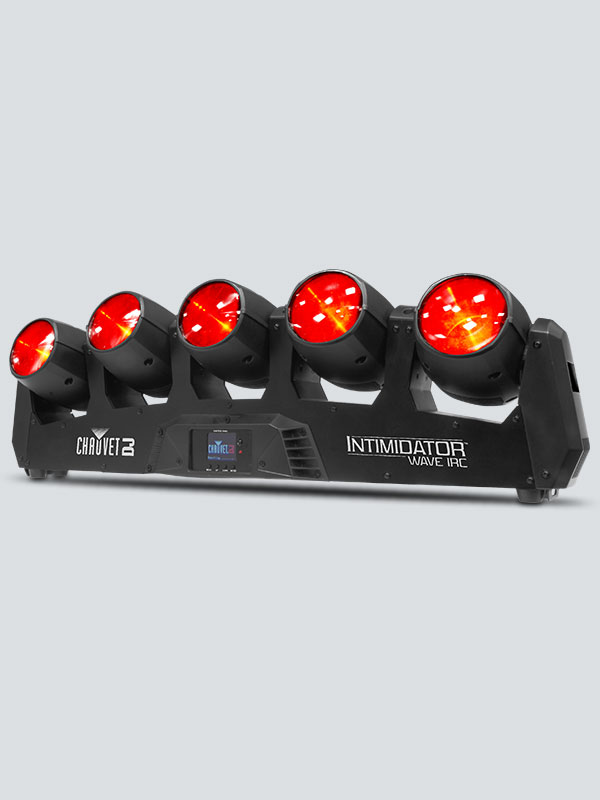

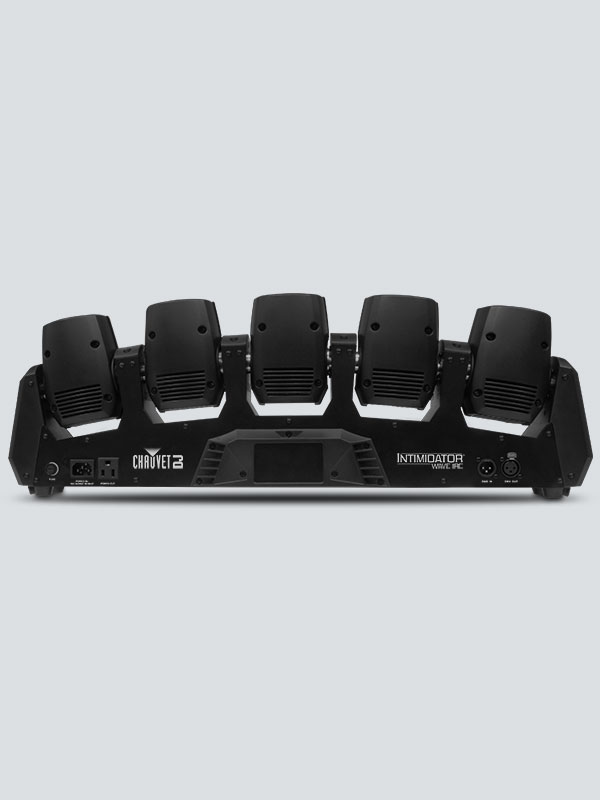

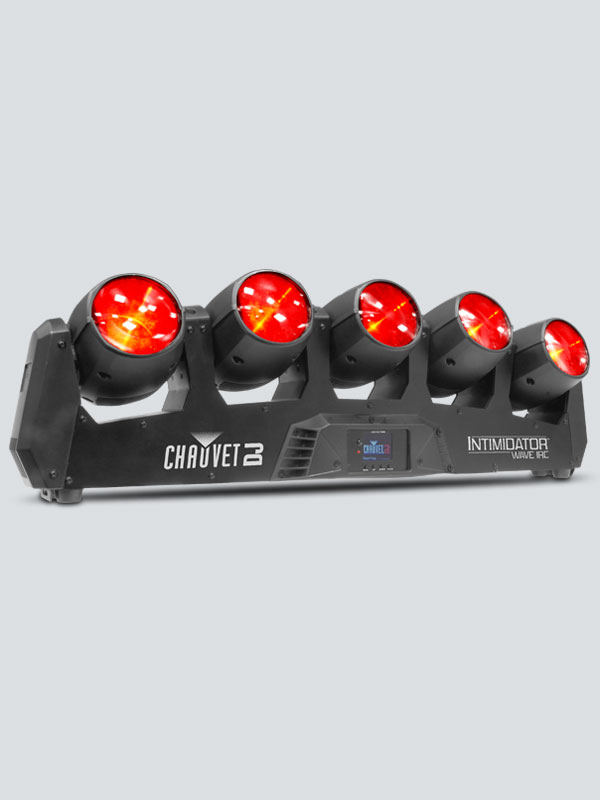

Intimidator Wave IRC

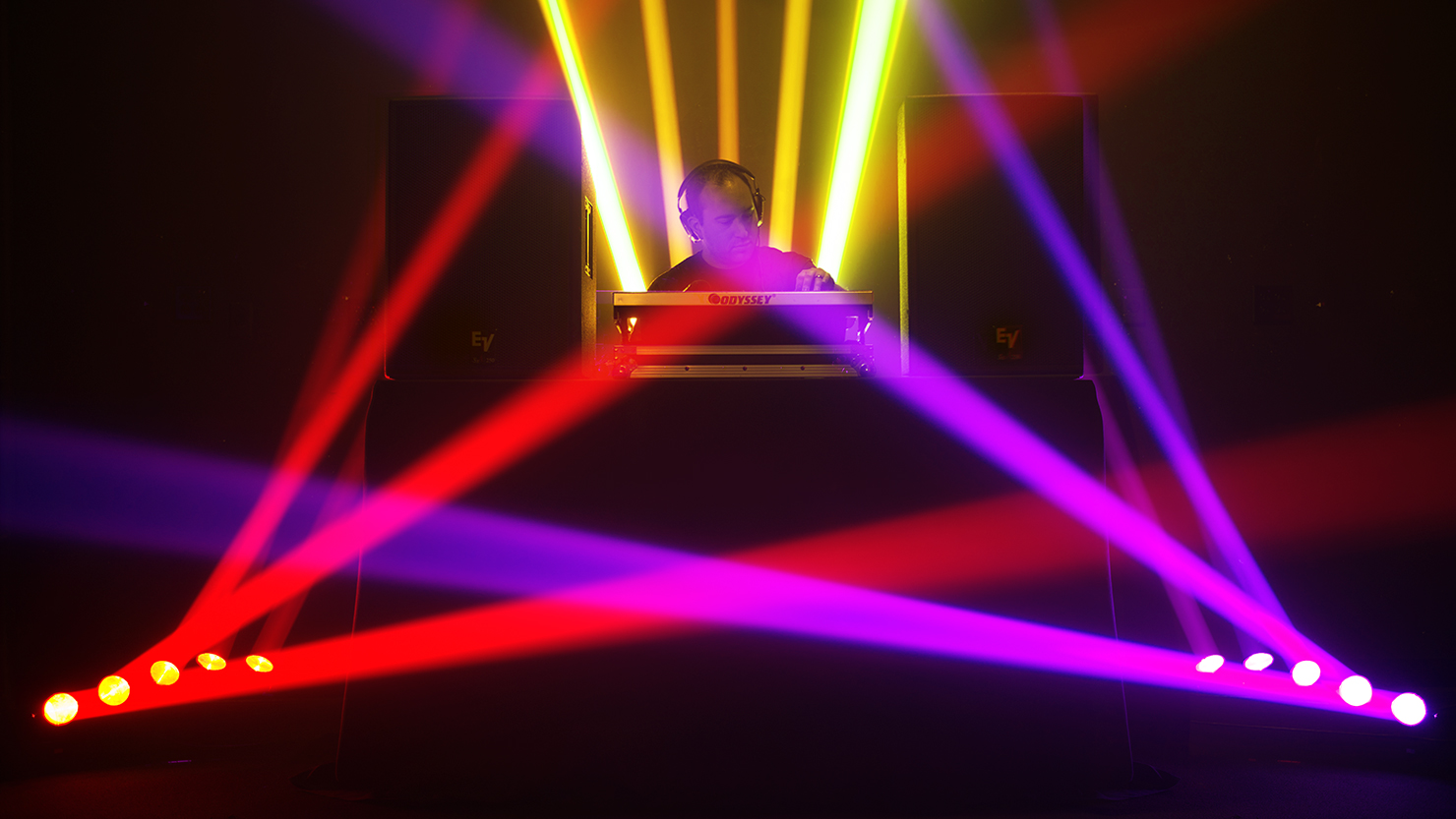

The Intimidator Wave IRC is a magnificent moving light array with 5 independently controlled heads that project narrow, razor-sharp beams of lights. Each moving head has a bright quad-color LED for infinite color-mixing capabilities. The Intimidator Wave IRC can be operated with the control panel, or the optional IRC-6 remote control. Up to 4 Intimidator Wave IRC lights can be linked together as one to create stunning coordinated effects. For even more pizazz use a CHAUVET DJ DMX controller! Fits best in the CHS-Wave VIP gear bag.

Highlights

  • Magnificent moving light array with 5 independently controlled heads

  • Projects narrow, razor-sharp beams of RGBW light

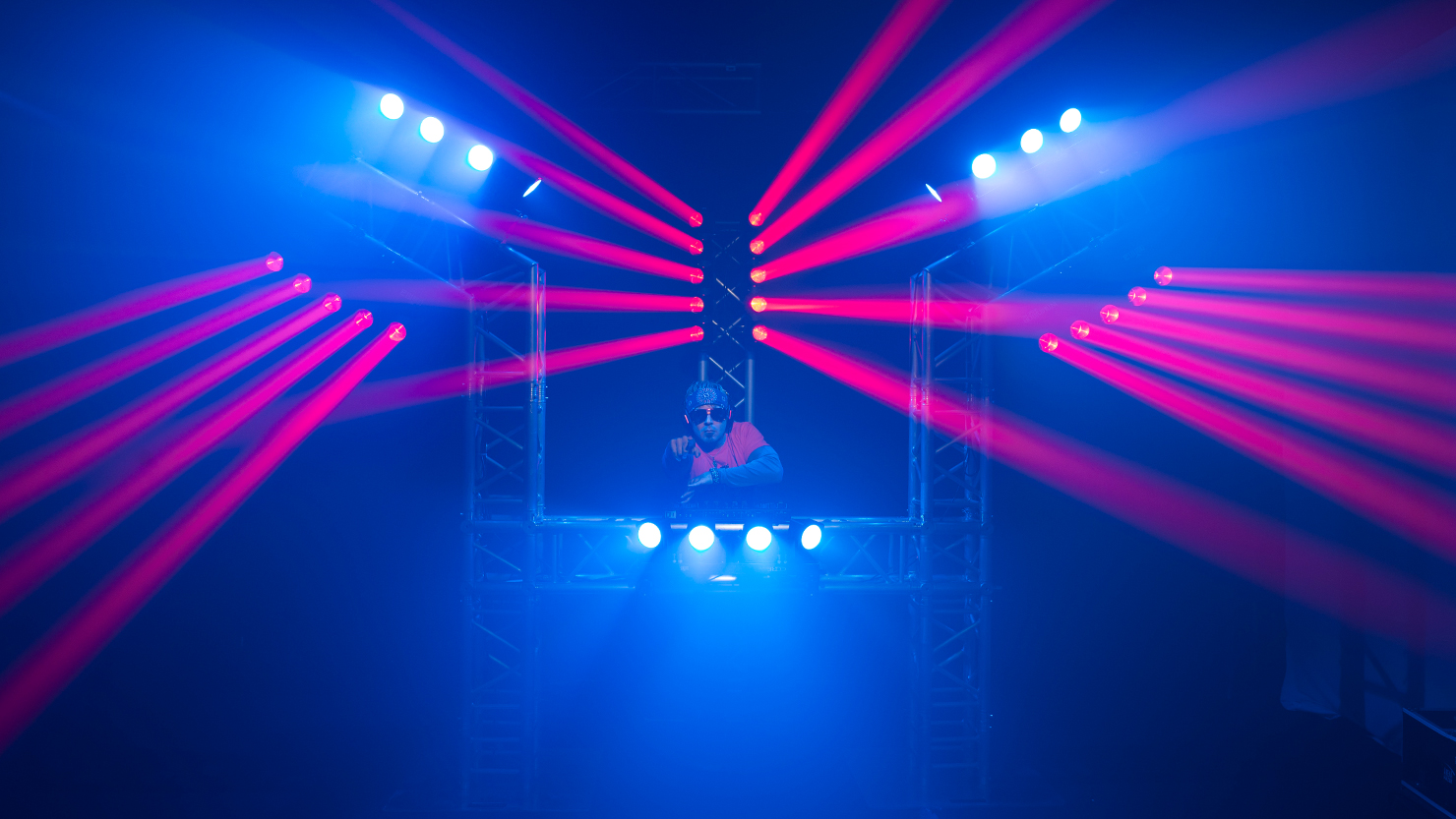

  • Link up to 4 fixtures (20 heads) to create eye-catching synchronized shows in Automated, Sound or Master/Slave mode

  • Project light where you want it with user-selectable tilt ranges

  • Simple navigation and a full text readout with the full-color LCD screen

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Save time running cables by power linking multiple units

Specifications

  • DMX Channels:14 or 34
  • DMX Connectors:3-pin XLR
  • Light Source:5 LEDs (quad-color RGBW) 12 W (3.9 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 23 Hz
  • PWM Frequency:488 Hz
  • Beam Angle:
  • Illuminance:16,670 lux @ 2 m
  • Power Linking:5 units @ 120 V; 13 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:173 W, 2.5 A @ 120 V, 60 Hz
    174 W, 1.3 A @ 230 V, 50 Hz
  • Weight:17.2 lb (7.8 kg)
  • Size:28 x 4.4 x 9.6 in (712 x 113 x 243 mm)
  • Approvals:CE
  • Series:Intimidator
  • Primary Use:DJ/Mobile, Bands/Stages, Events, Clubs, Party
  • Optional Controllers: IRC-6
  • Tilt: 270°
  • Tilt Ranges: 90°, 180°, 270°

What's Included

  • Intimidator Wave IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
