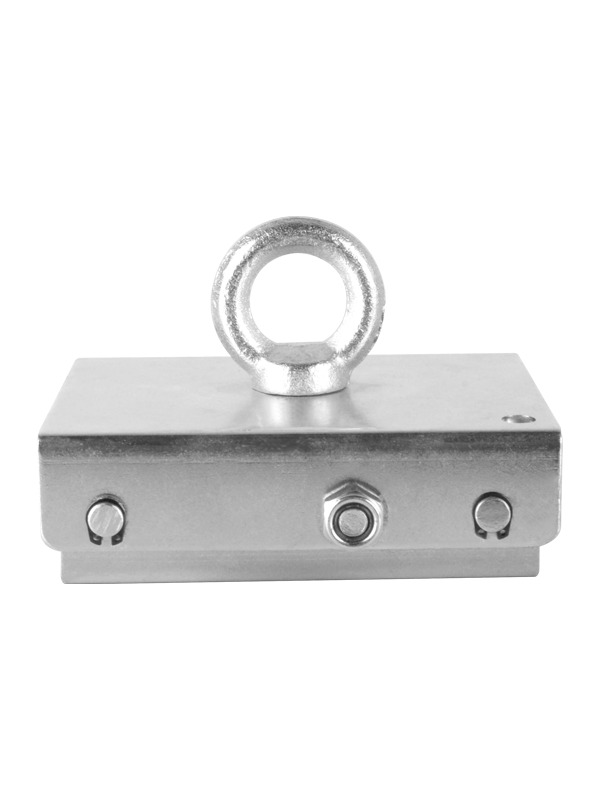

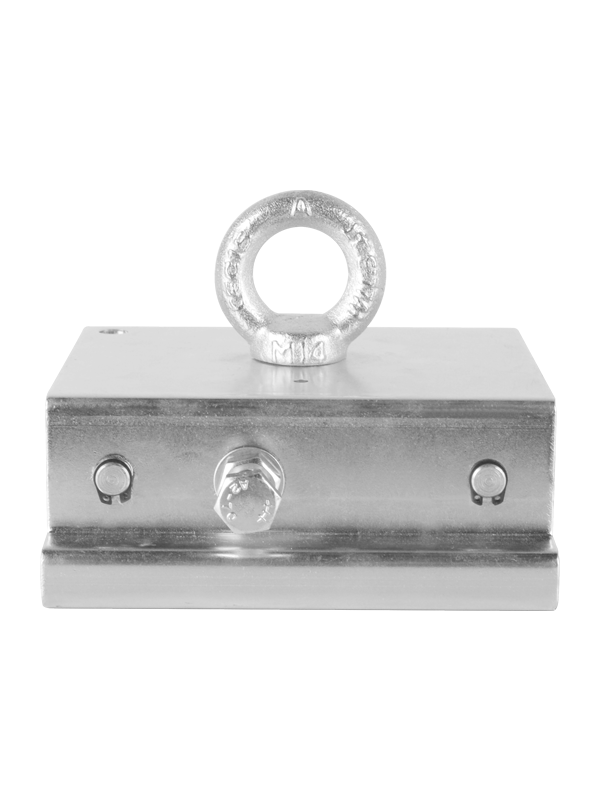

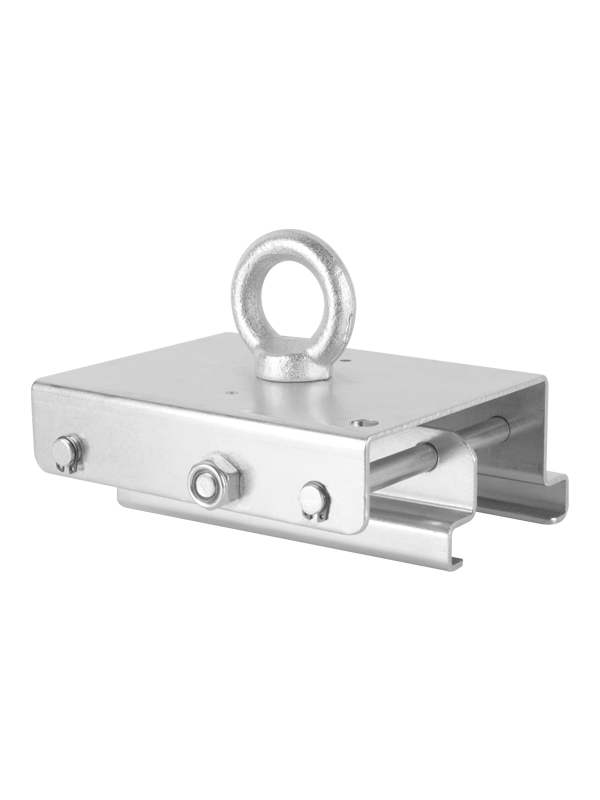

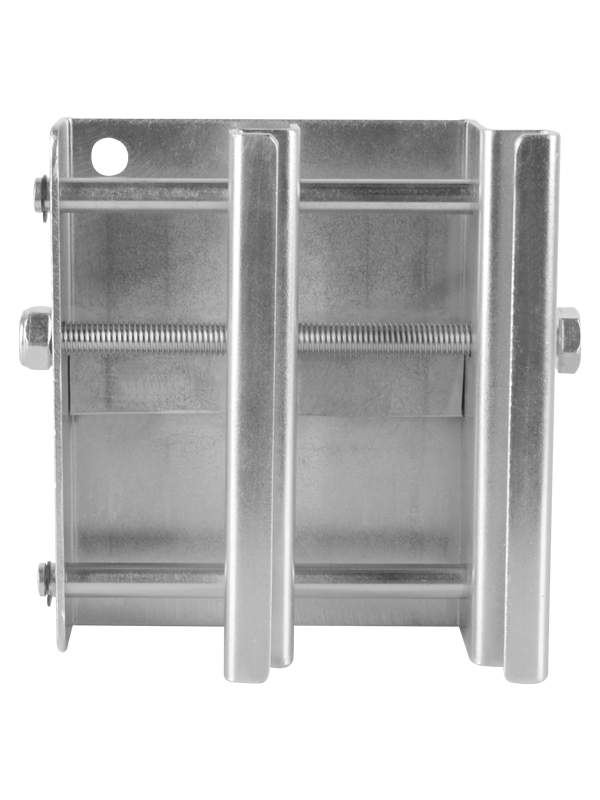

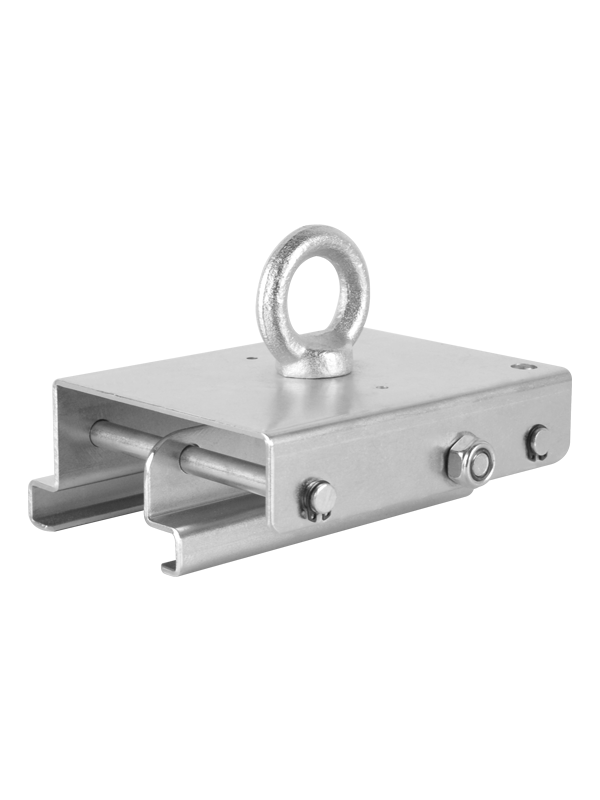

Keder Beam Tent Clamp

The CT-TENT is an adjustable clamp designed specifically for use with clear span tents using Keder grooved beams. The Tent Clamp allows you to create a hang point on the support beams where no other attachment is possible. The Tent Clamp provides a safe and secure connection and supports weights of up to 500 kg (1100 lb). The Tent Clamp allows for a quick and easy connection with standard rigging shackles and round slings or wire rope to provide a safe connection point to hang lighting, audio, and decor elements on the beams. Made of zinc plated steel with a permanently attached eye bolt, there is also a built-in safety cable attachment point.

Highlights

  • Clamps onto the slots on clear span tent Keder beam to suspend lighting, audio, truss, and décor elements

  • Tent clamp is made of zinc-plated steel, resists rust and corrosion

  • Complete with welded eye bolt, makes attaching a load easy with standard rigging hardware

  • Safe alternative to multi-piece handmade clamps

  • Clamps to Keder beam by tightening one bolt, makes installation quick and easy

Specifications

  • Weight:3.2 lb (1.5 kg)
  • Size:5.87 x 6.25 x 4.25 in (150 x 158 x 107 mm)
  • Load capacity: 1,100 lb (500 kg)
  • Fits: Clear span tent Keder beam

What's Included

  • Keder Beam Tent Clamp
  • CT-TENT
