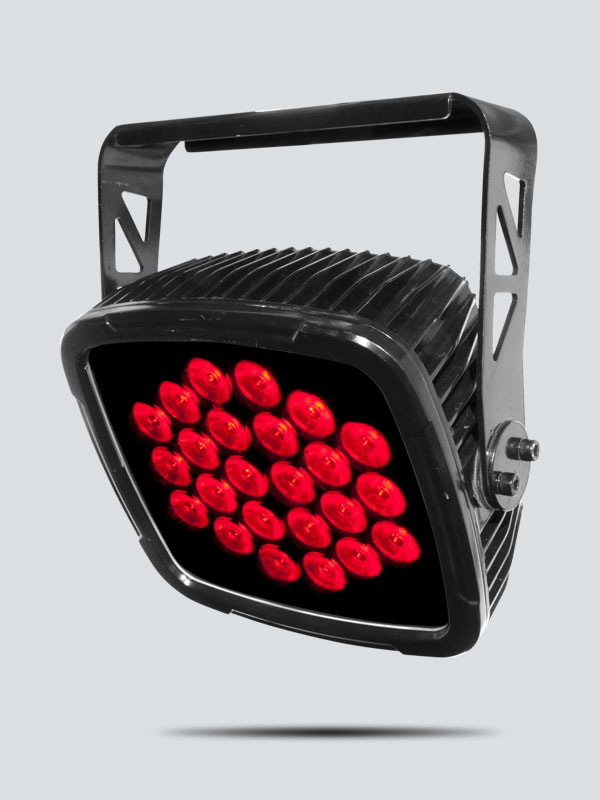

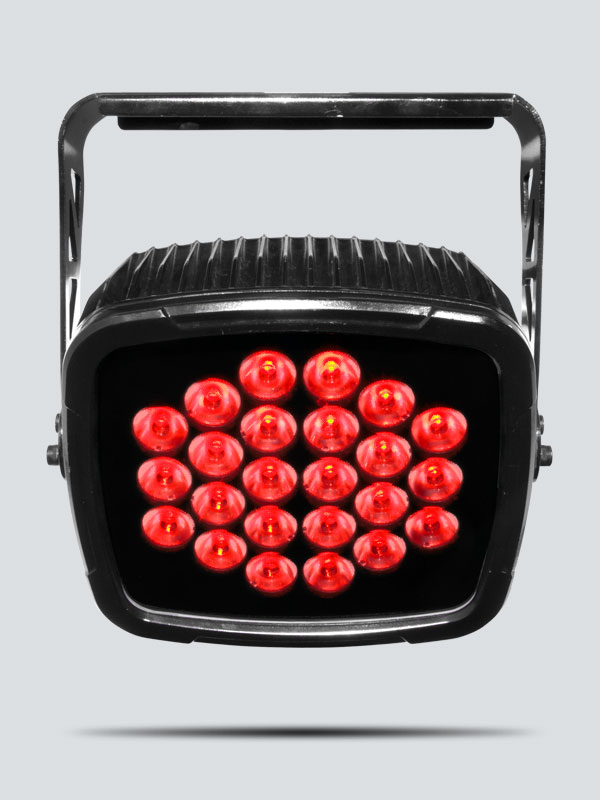

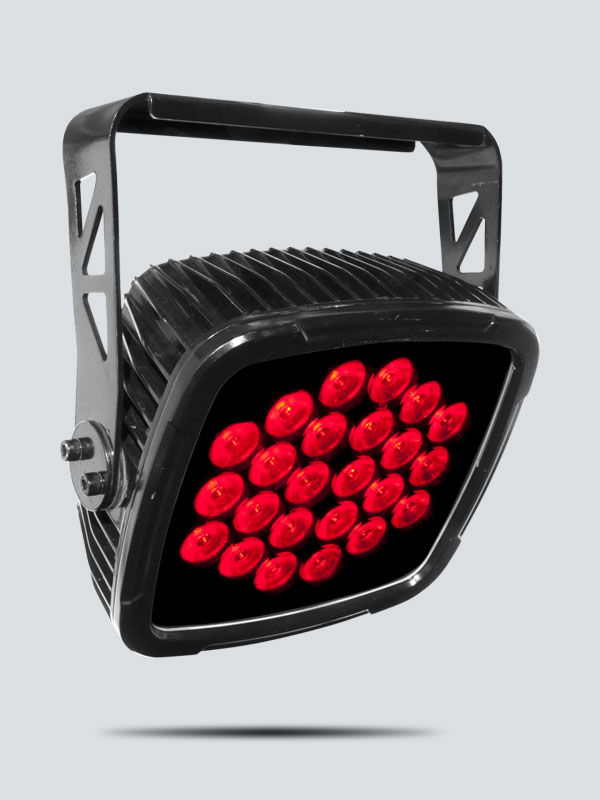

SlimPANEL Tri 24 IP
Designed for worry-free lighting at indoor and outdoor events, SlimPANEL Tri 24 IP provides vibrant, saturated color wherever it is needed. This IP65-rated fixture is at home in just about any environment and can withstand the strongest rainstorms without having to be covered or brought inside out of the elements. Powered by 24 tri-colored LEDs, SlimPANEL Tri 24 IP projects a smooth, even wash onto nearly any surface and almost completely eliminates multi-colored shadows
You might also like:
SlimPAR 56
Images & VIDEOS
Highlights
Outdoor-rated, tri-color LED wash light designed for any temporary outdoor event
Weatherproof fixture perfect for outdoor parties or behind wet bars
Alleviate the rush to set up and tear down in the rain

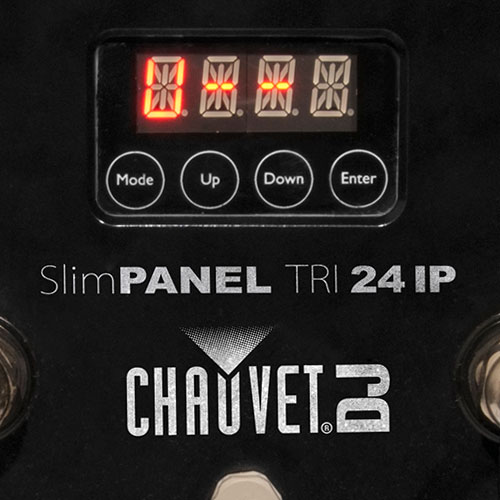

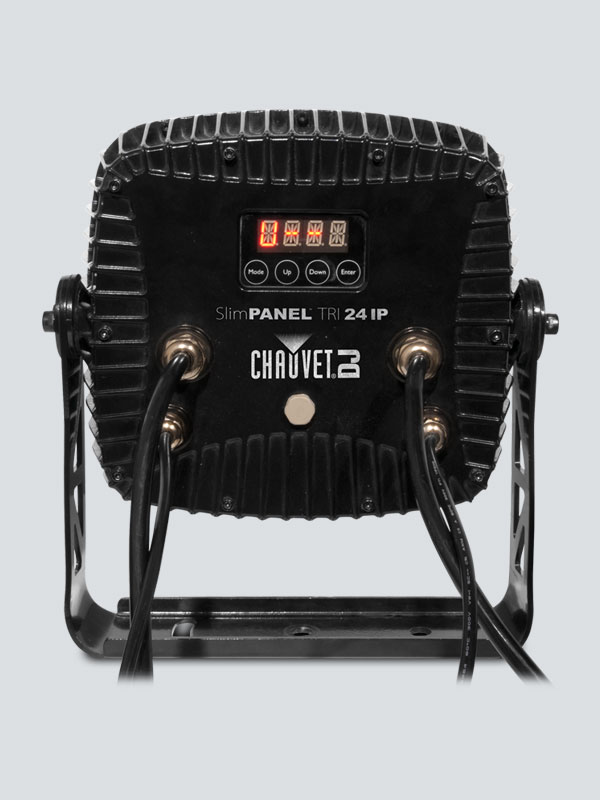

Innovative, touch-sensitive digital display
Eliminate internal humidity and pressure with the integrated GORE valve
Reduce the need for extra extension cords with power and data linking outputs
Robust housing repels water, snow, dirt, sand and salt for all-weather applications
Flicker-free operation suitable for on-camera use
Provides smooth and even coverage while nearly eliminating multicolored shadows
Fits best in the CHS-40 VIP Gear Bag
Specifications
- DMX Channels:3, 4, 5 or 9
- DMX Connectors:3-pin XLR
- Light Source:24 LEDs (tri-color RGB) 3 W, (1,050 mA), 50,000 hours life expectancy
- Strobe Rate:0 to 27 Hz
- PWM Frequency:300 Hz
- Beam Angle:20°
- Field Angle:34°
- Illuminance:5,850 lux @ 2 m
- IP Rating:IP65
- Power Linking:6 units @ 120 V; 12 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:82 W, 1.2 A @ 120 V, 60 Hz 81 W, 0.7 A @ 230 V, 50 Hz
- Weight:13.8 lb (6.2 kg)
- Size:10.5 x 11.9 x 5.3 in (268 x 301 x 134 mm)
- Approvals:CE, MET
- Startup Temperature: -4 °F to 113 °F (-20 to 45) °C
- Operating Temperature: -22 °F to 113 °F (-30 to 45) °C
What's Included
- SlimPANEL Tri 24 IP

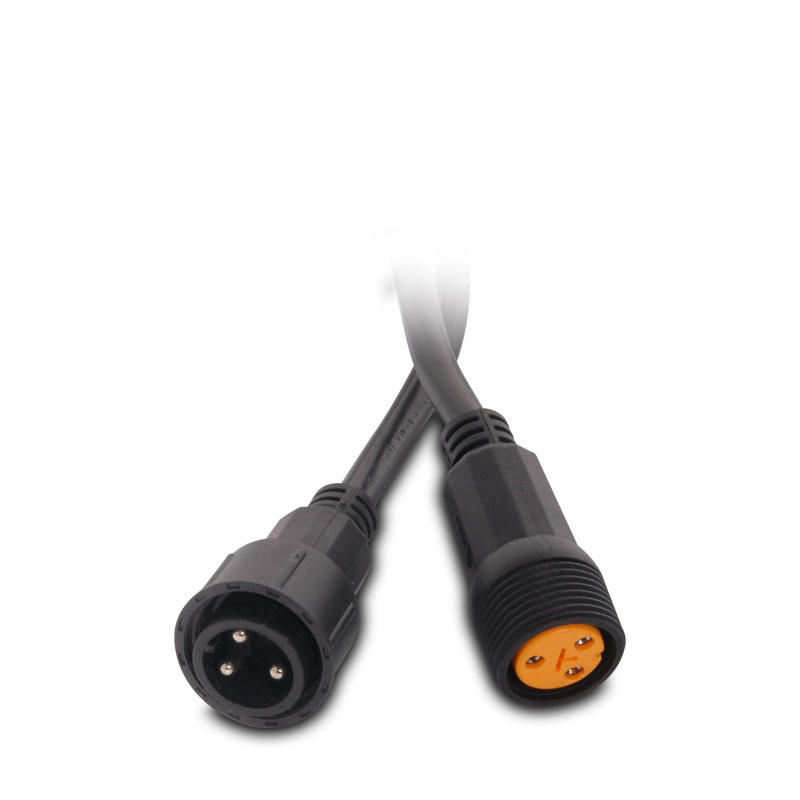

- Power Cord

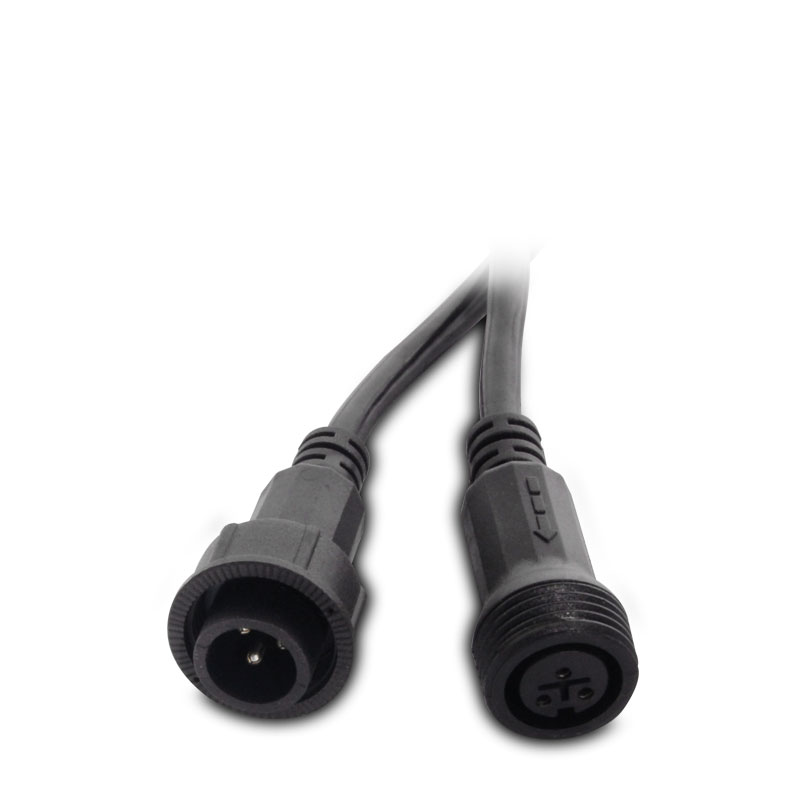

- DMX (in) adaptor
- DMX (out) adaptor
- Quick Reference Guide
- Warranty card
