SlimPAR H6 ILS

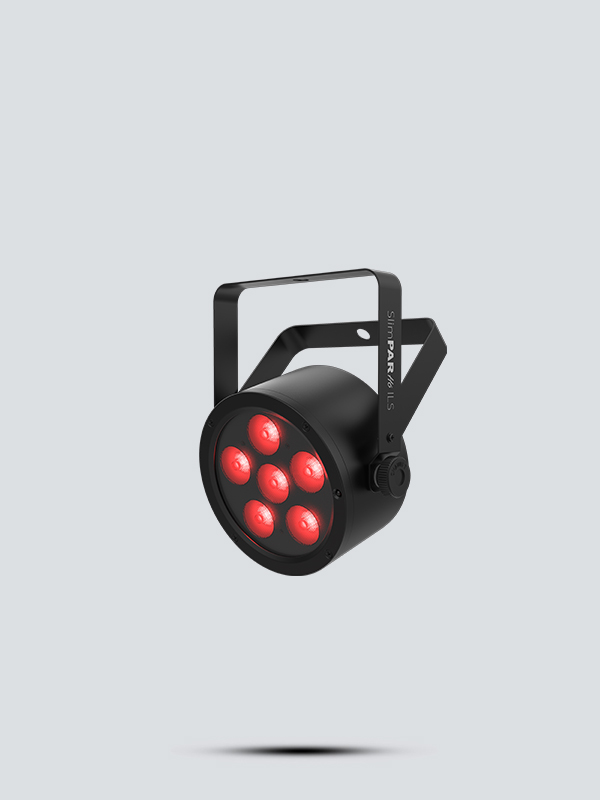

SlimPAR H6 ILS is a low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) that lets you generate a broad spectrum of colors and achieve natural-looking color temperatures. This fixture is compatible with ILS which makes creating coordinated light shows across different fixture types easy. This powerful par lets you create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. SlimPAR H6 ILS is flicker-free which makes it great for on-camera use. Other control options include D-Fi USB compatibility for wireless Master/Slave or DMX control and DMX, Master/Slave and Sound-Active modes as well as point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote.

Highlights

  • Low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV)

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology

  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Multiple control options include DMX, Master/Slave and Sound-Active modes

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Flicker-free operation suitable for on-camera use

  • Easily transports in the optional CHS-SP4 VIP Gear Bag

  • Sleek and lightweight to easily fit inside sticks of TRUSST®

Specifications

  • DMX Channels:6, 8 or 12
  • DMX Connectors:3-pin XLR
  • Light Source:6 LEDs (hex-color RGBAW+UV) 8 W (1.1A), 50,000 hours life expectancy
  • Strobe Rate:0 to 30 Hz
  • Beam Angle:25°
  • Field Angle:43°
  • Illuminance:1,891 lux @ 2 m
  • Power Linking:14 units @ 120 V; 24 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    41 W, 0.6 A @ 120 V, 60 Hz
    41 W, 0.3 A @ 230 V, 50 Hz
  • Weight:2.6 lbs (1.2 kg)
  • Size:7.5 x 3.3 x 8.8 in (192 x 84 x 225 mm)
  • Approvals:CE, UKCA, RoHS
  • Optional Controllers: IRC6, D-Fi USB
  • Bracket Mounting Hole: 13 mm

What's Included

  • SlimPAR H6 ILS
  • SlimPAR H6 ILS
  • Power cord
  • Quick Reference Guide
