Discontinued Since 2016

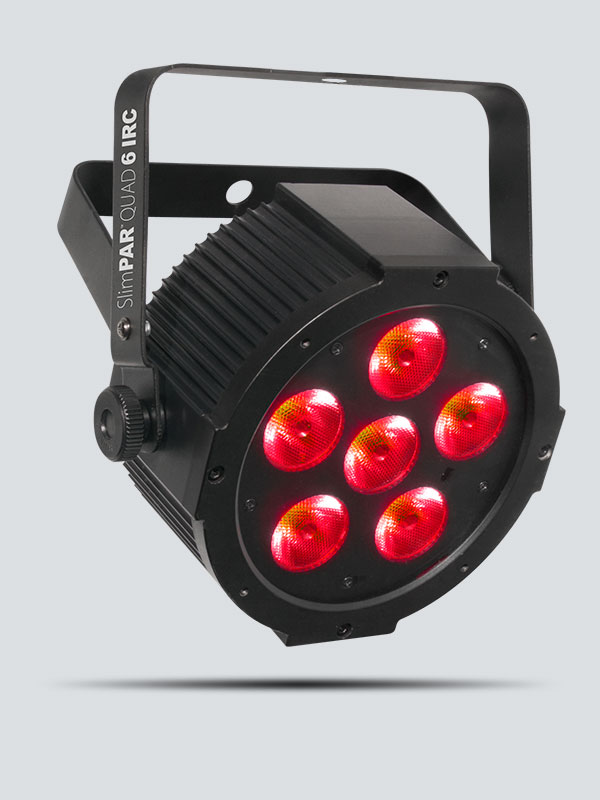

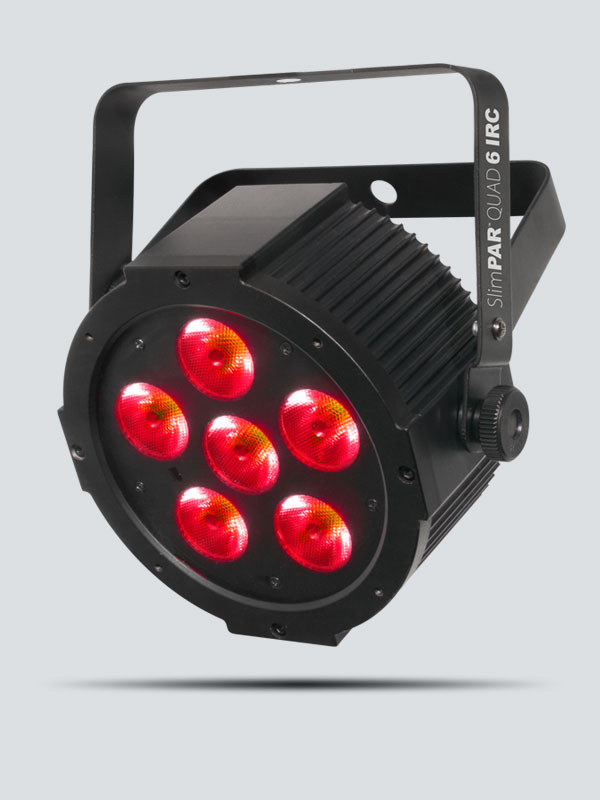

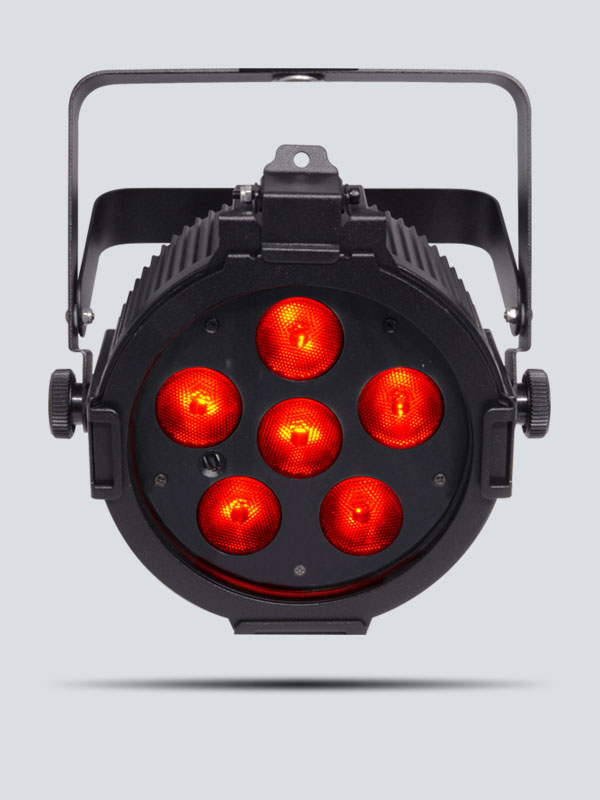

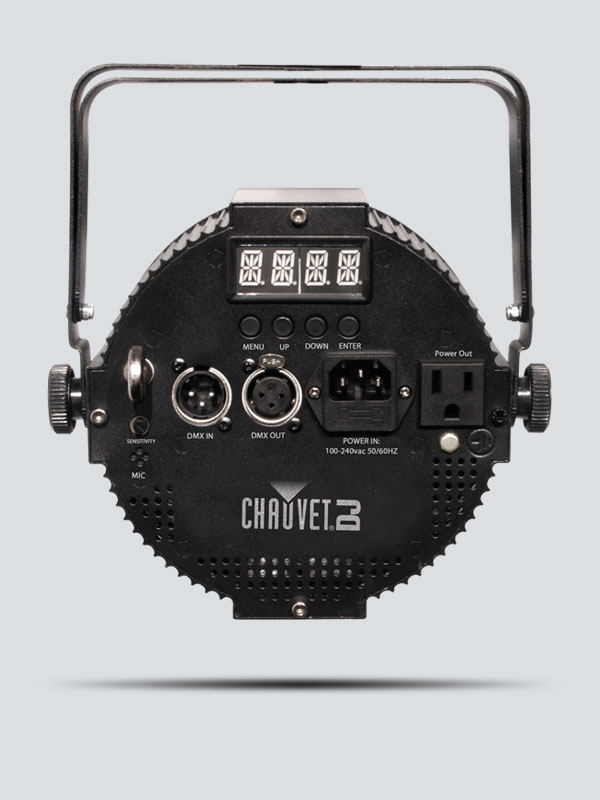

SlimPAR QUAD 6 IRC

Next Gen Product Available

SlimPAR Q6 ILS

SlimPAR QUAD 6 IRC is a low-profile, high-power LED PAR designed for any application where wash lights are needed. Six quad-color (RGBA) LEDs make this the perfect front light by eliminating multicolored shadows and providing a smooth, even output. The addition of the IRC-6 allows simple operation and eliminates the hassle of programming. With a 100% convection cooling system, there is no fan noise to distract the audience.

Highlights

  • Low-profile, quad-color LED PAR with built-in infrared (IR) technology

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Ideal for quiet applications due to silent operation and no moving parts

  • Create any color without DMX by using the built-in digital display

  • Save time running cables and extension cords by power linking multiple units

  • Create coordinated light shows by linking other quad-color LED SlimPAR™ fixtures in Master/Slave mode

  • Easily transports in the optional CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels:4 or 8
  • DMX Connectors:3-pin XLR
  • Light Source:6 LEDs (quad-color RGBA) 5 W (2 A), 50,000 hours life expectancy
  • PWM Frequency:1,200 Hz
  • Beam Angle:20°
  • Field Angle:34°
  • Illuminance:2,393 lux @ 2 m
  • Power Linking:39 units @ 120 V; 75 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:42 W, 0.3 A @ 120 V, 60 Hz
    42 W, 0.2 A @ 230 V, 50 Hz
  • Weight:4 lb (1.8 kg)
  • Size:8.8 x 8.3 x 4.2 in (224 x 210 x 107 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6

What's Included

  • SlimPAR QUAD 6 IRC
  • Power cord
  • Gel frame holder
  • Warranty card
  • Quick Reference Guide
