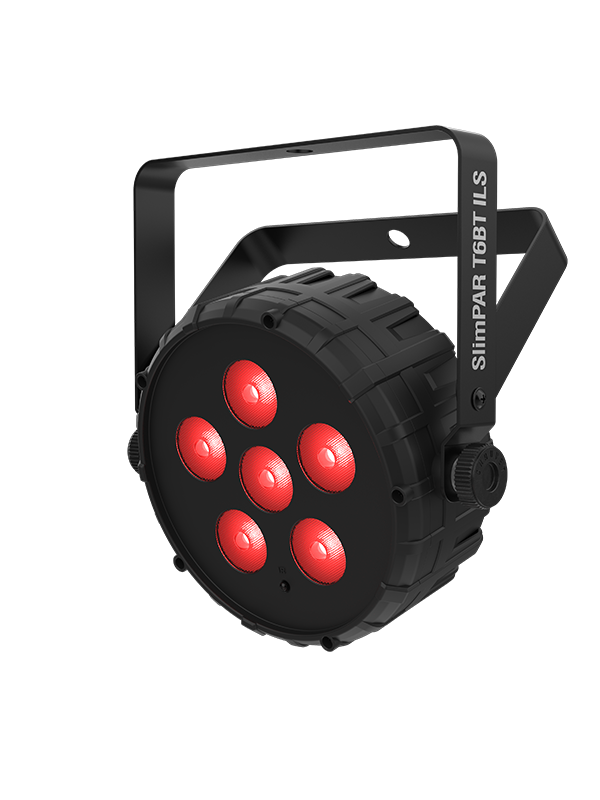

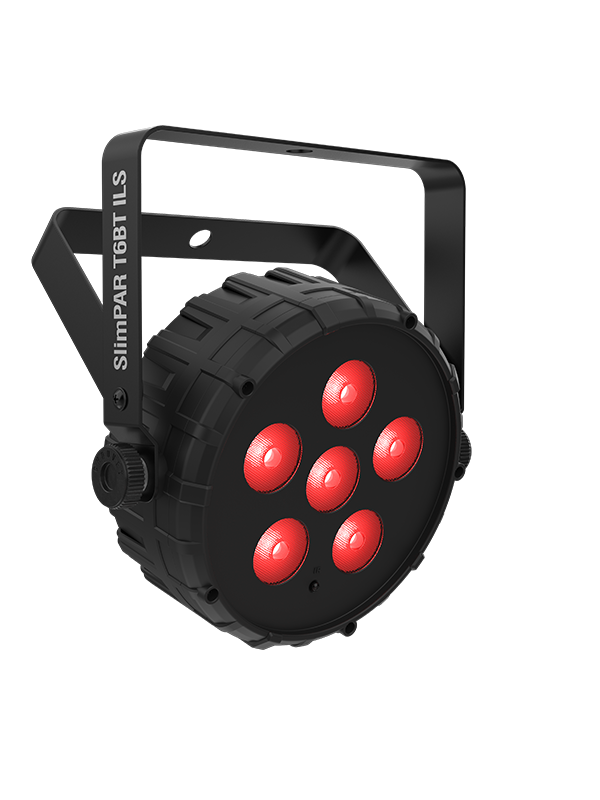

SlimPAR T6BT ILS
Enjoy punchy wash lighting in a small form factor with SlimPAR T6 BT ILS. This compact tri-color (RGB) LED fixture has control flexibility with ILS, DMX, and Bluetooth® for programming directly from a smart phone or tablet. Make an impact fast, create cohesive visuals, and save time running cables by power linking multiple units.
Highlights
Compact wash light with built-in Bluetooth® wireless technology
ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
Control directly from a smart phone or tablet without any additional hardware.
Easily set static colors or automated programs with the optional IRC-6 remote
Compact built-in automated programs via IRC-6 remote, Master/Slave or DMX
Save time running cables and extension cords by power linking multiple units.
Fits best in the CHS-30 VIP Gear Bag
Specifications
- DMX Channels:3 or 7
- DMX Connectors:3-pin XLR
- Light Source:6 LEDs (tri-color RGB) 4.8 W, (2 A), 50,000 hours life expectancy Strobe Rate: 0 to 20 Hz
- Strobe Rate:0 to 20 Hz
- Beam Angle:17°
- Field Angle:33°
- Operating Frequency:2.4 GHz
- Illuminance:1754 lux @ 2 m
- Power Linking:25 units @ 120 V; 38 units @ 230
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Weight:2.2 lb. (1 kg)
- Size:10.4 x 7.6 x 3 in (265 x 218 x 76 mm)
- Approvals:CE, RoHS, FCC
- Power and Current: 21 W, 0.3 A @ 120 V, 60 Hz
- Power and Current: 21 W, 0.3 A @ 230 V, 50 Hz
- Bracket Mounting Hole: 13 mm
- Optional Controllers: IRC6, ILS Command
- Bluetooth Version: 4.2
- Max Unobstructed Distance: 150 ft (25.7 m)
- Max. Output Current: 8 A (25 units @ 120 V) (38 units @ 230 V)
What's Included
- SlimPAR T6BT ILS
- SlimPar T6BT ILS
- Power cord
- Quick Reference Guide
