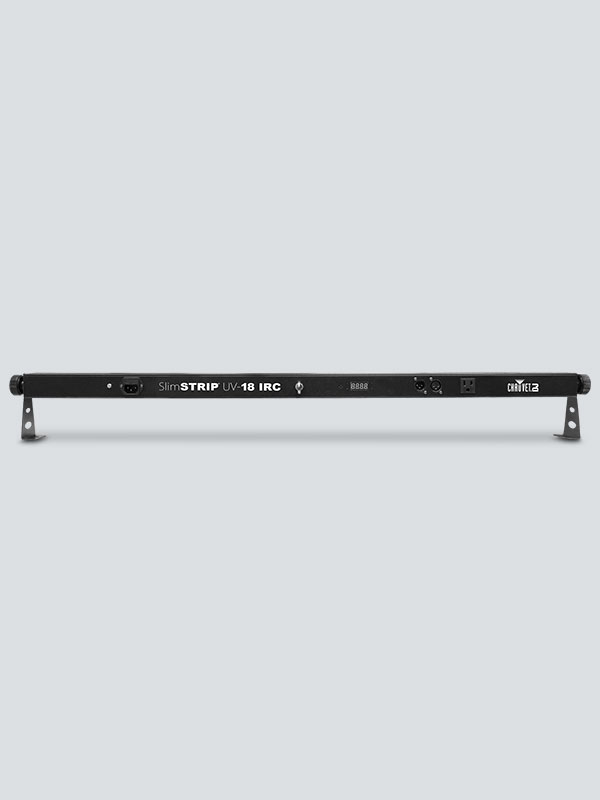

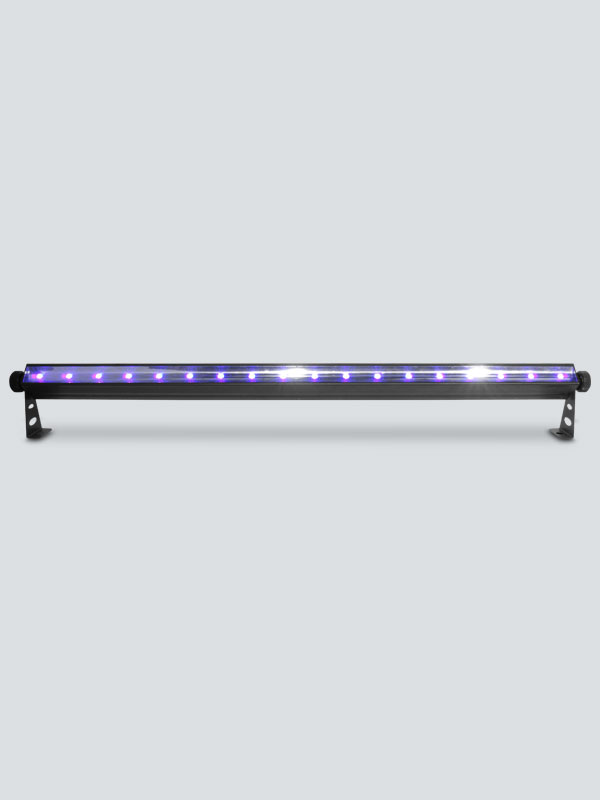

SlimSTRIP UV-18 IRC

SlimSTRIP UV-18 IRC is a high-output ultraviolet wash. This eco-friendly replacement for standard 48-inch fluorescent tubes can be controlled via DMX, or convenient wireless non-DMX control using the optional IRC-6 remote control. To create large displays, attach multiple units together with the optional CBB-6. It is ready to use right out of the box and transports easily in the CHS-60 VIP Gear Bag.

*includes Mexico & Canada

Highlights

  • High-output, DMX-controlled ultraviolet wash

  • Eco-friendly replacement for standard 48-inch fluorescent tubes

  • Quick setup, ready to use right out of the box

  • Save time running extension cords by power linking multiple units

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Easily transports in the CHS-60 VIP Gear Bag

  • Works with the CBB-6 to attach multiple units together

Specifications

  • DMX Channels:3
  • DMX Connectors:3-pin XLR
  • Light Source:18 LEDs (UV) 3 W (700 mA), 50,000 hours life expectancy
  • Strobe Rate:0 to 33 Hz
  • Power Linking:17 units @ 120 V; 34 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:51 W, 0.4 A @ 120 V, 60 Hz
    50 W, 0.2 A @ 230 V, 50 Hz
  • Weight:5.2 lb (2.4 kg)
  • Size:41.9 x 2.3 x 5 in (1,065 x 60 x 126 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6
  • Wavelength (UV): 390 to 400 nm

What's Included

  • SlimSTRIP UV-18 IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
Save & Print

Downloads

User Manual
Quick Reference Guide
